APC BY Schneider Electric APDU11450SW APC NetShelter Rack PDU Advanced Gen 2, Switched, 34.6kW, 3Phase, 43.5kW 400V 63A or 34.6kW 415V 60A, 560P6, 42 Outlet

$6,934.50

APC NetShelter Rack PDU Advanced Gen 2, Switched, 34.6kW, 3Phase, 43.5kW 400V 63A or 34.6kW 415V 60A, 560P6, 42 Outlet - Switched - IEC 60309 60A 3P+N+PE - 21 x IEC 60320 C13/C15/C19/C21, 21 x IEC 60320 C13/C15 - 415 V AC - Network (RJ-45) - 9.84 ft Cord Length - 0U - Vertical - Rack-mountable - Rack

Ideal for AI and other high density applications
4-in-1 combination outlet design acts as C13, C15, C19, and C21 in one outlet
Live Swap Network Management Card 3
Enhanced cybersecurity and EcoStruxureTM IT compatible
1 year free subscription to Secure NMC3 System

General Information

Manufacturer	Schneider Electric SA
Manufacturer Part Number	APDU11450SW
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Line	NetShelter
Product Name	NetShelter 42-Outlets PDU
Marketing Information	APC NetShelter Rack PDU Advanced (11K Series) provides reliable power distribution to IT equipment within server and/or networking racks. Switched outlets allow for turning outlets on or off remotely. PDU level power metering provides power visibility and notification of potential overload. 4 in 1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparalleled deployment flexibility. Maximum outlet density with 42 outlets in a 2.2 in. (5.6 cm) wide form factor allows for more equipment in the rack. Outlets on the PDUs are color coded and labeled by breaker. Live Swap the NMC3 to minimize downtime in the unlikely event of an NMC power event. The rack PDU integrates with EcoStruxure IT through an NMC3 and can be accessed and configured via web, SNMP, and command line interface (CLI). A 10 foot (3 meter) input cord makes it easier for the PDU to reach the power supply. Rated to operate up to 60 C (140 F) at full load ensures reliability and availability even in todays high density deployments. One gigabit Ethernet/network port (10/100/1000) enhances and standardizes network connectivity. Two link ports are available to cascade to up to 32 PDUs, with a network port sharing (NPS) feature to enable power sharing between Rack PDUs in the cascading group. Track or bill power usage confidently with 1% metering accuracy. Two environmental sensor ports allow for optional sensors (sold separately) to be connected. For data center deployments across multiple regions, these PDUs have the following certifications: UL, CE, CSA, UKCA, Nemiko, PSE, KC, China RoHS, RCM, and CMIM. This modelâ€™s input power cord is IEC-309 60 A 3P+N+PE and features 21 count C13/C15/C19/C21 combo outlets and 21 count C13/C15 outlets. More from the Manufacturer
Packaged Quantity	1
Product Type	PDU

Technical Information

PDU Type	Switched
Phase	Three Phase
Plug/Connector Type	IEC 60309 60A 3P+N+PE
Receptacle Type	IEC 60320 C13/C15/C19/C21
Receptacle Type	IEC 60320 C13/C15
Receptacle Detail	21 x IEC 60320 C13/C15/C19/C21
Receptacle Detail	21 x IEC 60320 C13/C15
Load Capacity (Watt)	43.50 kW

Power Description

Input Voltage	415 V AC
Output Voltage	240 V AC
Power Source	Power Supply
Input Current	60 A

Management

Management	NMC3 Web SNMP CLI
Remote Outlet Switching	Yes

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Mounting Orientation	Vertical
Mount Type	Rack-mountable
Form Factor	Rack
Placement	Side
Rack Height	0U
Cord Length	9.84 ft mm
Height	71.9" mm
Width	2.2" mm
Depth	3" mm
Weight (Approximate)	27.34 lb g

Environmental Conditions

Maximum Operating Temperature

140°F (60°C) °F

Miscellaneous

Application/Usage	IT Equipment
Application/Usage	Server/Network Rack
Application/Usage	Data Center
TAA Compliant	No
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmental Compliance	China Restriction of Hazardous Substances (China RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No

Warranty

Limited Warranty

3 Year

Low in stock

APC BY Schneider Electric APDU11451SM APC NetShelter Rack PDU Advanced Gen 2, Switched Metered Outlet, 3Phase, 14.4kW, 208V 50A, CS8365C, 42 Outlet

$7,143.80

APC NetShelter Rack PDU Advanced Gen 2, Switched Metered Outlet, 3Phase, 14.4kW, 208V 50A, CS8365C, 42 Outlet - Switched with Metered-by-Outlet - CS8365C 50A - 21 x IEC 60320 C13/C15, 21 x IEC 60320 C13/C15/C19/C21 - 230 V AC - Network (RJ-45) - 9.84 ft Cord Length - 0U - Vertical - Rack-mountable - Rack

Ideal for high-density applications
Next-gen PDU speeds up IT deployments - one PDU for every type of device
4-in-1 combination outlet design acts as C13, C15, C19, and C21 in one outlet
Enhanced cybersecurity and EcoStruxure™ IT compatible
1 year free subscription to Secure NMC3 System

General Information

Manufacturer	Schneider Electric SA
Manufacturer Part Number	APDU11451SM
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Line	NetShelter
Product Name	NetShelter 42-Outlets PDU
Marketing Information	APC NetShelter Rack PDU Advanced (11K Series) provides reliable power distribution to IT equipment within server and/or networking racks. Switched outlets allow for turning outlets on or off remotely. Outlet and PDU level power metering provide power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparalleled deployment flexibility. Maximum outlet density with 42 outlets in a 2.2 in. (5.6 cm) wide form factor allows for more equipment in the rack. Outlets on the PDUs are color coded and labeled by breaker. Live Swap the NMC3 to minimize downtime in the unlikely event of an NMC power event. The rack PDU integrates with EcoStruxure IT through an NMC3 and can be accessed and configured via web, SNMP, and command line interface (CLI). A 10-foot (3-meter) input cord makes it easier for the PDU to reach the power supply. Rated to operate up to 60 C (140 F) at full load ensures reliability and availability even in today's high-density deployments. One gigabit Ethernet/network port (10/100/1000) enhances and standardizes network connectivity. Two link ports are available to cascade to up to 32 PDUs, with a network port sharing (NPS) feature to enable power sharing between Rack PDUs in the cascading group. Track or bill power usage confidently with 1% metering accuracy. Two environmental sensor ports allow for optional sensors (sold separately) to be connected. For data center deployments across multiple regions, these PDUs have the following certifications: UL, CE, CSA, UKCA, Nemiko, PSE, KC, China RoHS, RCM, and CMIM. This model's input power cord is CS8365C and features 21 count C13/C15/C19/C21 combo outlets and 21 count C13/C15 outlets. More from the Manufacturer
Packaged Quantity	1
Product Type	PDU

Technical Information

PDU Type	Switched with Metered-by-Outlet
Phase	Three Phase
Plug/Connector Type	CS8365C 50A
Receptacle Type	IEC 60320 C13/C15/C19/C21
Receptacle Type	IEC 60320 C13/C15
Receptacle Detail	21 x IEC 60320 C13/C15
Receptacle Detail	21 x IEC 60320 C13/C15/C19/C21
Load Capacity (Watt)	14.40 kW

Power Description

Input Voltage	230 V AC
Output Voltage	208 V AC
Power Source	Power Supply
Input Current	50 A

Management

Management	NMC3 Web SNMP CLI
Remote Outlet Switching	Yes

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Mounting Orientation	Vertical
Mount Type	Rack-mountable
Form Factor	Rack
Placement	Side
Rack Height	0U
Cord Length	9.84 ft mm
Height	70.1" mm
Width	2.2" mm
Depth	3" mm
Weight (Approximate)	24.47 lb g

Environmental Conditions

Maximum Operating Temperature

140°F (60°C) °F

Miscellaneous

Application/Usage	IT Equipment
Application/Usage	Server/Network Rack
Application/Usage	Data Center
TAA Compliant	No
Environmental Compliance	China Restriction of Hazardous Substances (China RoHS)
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Single-use Plastic (SUP) Free Shipping Packaging	No

Warranty

Limited Warranty

3 Year

In stock

APC by Schneider Electric APDU9941 APC NetShelter Switched Rack PDU, 0U, 5.0kW, 200V and 208V, 30A, 21 C13/C15 and 3 C19/C21 outlets

$2,455.75

APC NetShelter Switched Rack PDU, 0U, 5.0kW, 200V and 208V, 30A, 21 C13/C15 and 3 C19/C21 outlets - Switched - NEMA L6-30P - 21 x IEC 60320 C13/C15, 3 x IEC 60320 C19/C21 - 200 V, 208 V - Overload Protection - Network (RJ-45) - 9.84 ft Cord Length - 0U - Vertical - Rack-mountable - Tower

Ideal for colocation, large data centers or distributed IT sites
Remote management of rack PDUs for efficient time-saving
Plan capacity and balance loads with +/- 1% metering accuracy (amps, volts, kW, kWh)
Gigabit ethernet connectivity
Real-time remote monitoring of connected load through EcoStruxureTM IT and other platforms
Power sequencing delays determine the order in which power is turned on or off
Stay on top of potential circuit overloads with user-defined alarms
Zero U toolless installation

General Information

Manufacturer	Schneider Electric SA
Manufacturer Part Number	APDU9941
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Series	9000
Product Name	NetShelter 9000 24-Outlet PDU
Marketing Information	The APC Switched Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles. The APDU9941 offers advanced load management combined with remote on/off switching control of individual outlets for power cycling, delayed power sequencing, and outlet use management. The 0U PDU includes a NEMA L6-30P input plug with 3. 05m (10 ft) cord, (21) IEC 60320 C13/C15 and (3) IEC 60320 C19/C21 hybrid outlet receptacles. The hybrid outlets allow 60Â°C operating temperature at full load, are compatible with standard C14 and C20 power cords, and are future-proofed for new C16 and C21 power cords required for higher temperature rated devices. The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy. The rack PDU integrates with EcoStruxure IT through Network Management Card and can be accessed, configured, and managed remotely via Web, SNMP and Command Line Interface Color user-interactive LCD interface details current, real power, voltage, and energy measurements for local user access. The outlet level control allows power on/off functionality for power recycling/reboot of remote equipment and restricts unauthorized use of individual outlets. The Switched Rack PDU includes a temperature/humidity sensor port, locking IEC outlets when used with locking power cords, low-profile circuit breakers and USB port for local Firmware updates The rack PDU supports daisy-chain of up to 32 PDUs on a single IP address, thereby reducing networking cost. The rack PDU comes with a standard three-year warranty. More from the Manufacturer
Product Type	PDU

Technical Information

PDU Type	Switched
Plug/Connector Type	NEMA L6-30P
Receptacle Type	IEC 60320 C19/C21
Receptacle Type	IEC 60320 C13/C15
Receptacle Detail	21 x IEC 60320 C13/C15
Receptacle Detail	3 x IEC 60320 C19/C21
Protection Type	Overload Protection

Power Description

Input Voltage	200 V
Input Voltage	208 V
Input Voltage Range	200 V AC - 240 V AC
Output Voltage	200 V AC
Output Voltage	208 V AC
Power Rating (VA)	4992 VA W
Power Rating (Watt)	5000 W
Input Current	30 A

Management

Web
SNMP
Telnet

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Mounting Orientation	Vertical
Mount Type	Rack-mountable
Form Factor	Tower
Placement	Side
Rack Height	0U
Cord Length	9.84 ft mm
Height	72" mm
Width	2.2" mm
Depth	1.8" mm
Weight (Approximate)	18.74 lb g

Miscellaneous

Package Contents	NetShelter 9000 24-Outlet PDU Installation guide Rack mounting brackets Safety guide
Country of Origin	India
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No

Warranty

Limited Warranty

3 Year

In stock

APC by Schneider Electric APDU9953 Rack PDU 9000 Switched, ZeroU, 32A, 230V, (21) C13 & (3) C19

$2,788.25

APC by Schneider Electric Rack PDU 9000 Switched, ZeroU, 32A, 230V, (21) C13 & (3) C19 - Switched - IEC 60309 32A 2P+E - 21 x IEC 60320 C13, 3 x IEC 60320 C19 - 230 V AC - Overload Protection, Circuit Protection, Accidental Power Shutdown - Network (RJ-45) - 0U - Horizontal/Vertical/Toolless - Rack-mountable - Tower

With PDUs decisions for load balancing and minimizing extra cost can be managed
With a built-in digital current meter avoid potential overloads via switched PDUs
IEC 60320 C13 receptacle type to ensure maximum usability and reliable power output
IEC 60309 32A 2P+E plug/connector type for efficient connectivity and feasible power output
230 V AC input voltage for maximum feasibility and added productivity

General Information

Manufacturer	Schneider Electric SA
Manufacturer Part Number	APDU9953
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	NetShelter
Product Series	Switched
Product Name	Rack PDU 9000 Switched, ZeroU, 32A, 230V, (21) C13 & (3) C19
Marketing Information	With Industry leading reliability, manageability, and security, APC Switched Rack PDU's provide advanced load management plus on/off outlet level power cycling and sequencing control. With Industry leading reliability, manageability, and security, APC Switched Rack PDU's provide advanced load management plus on/off outlet level power cycling and sequencing control.
Product Type	PDU

Technical Information

PDU Type	Switched
Plug/Connector Type	IEC 60309 32A 2P+E
Plug/Connector Detail	1 x IEC 60309 32A 2P+E
Receptacle Type	IEC 60320 C13
Receptacle Type	IEC 60320 C19
Receptacle Detail	21 x IEC 60320 C13
Receptacle Detail	3 x IEC 60320 C19
Protection Type	Overload Protection
Protection Type	Circuit Protection
Protection Type	Accidental Power Shutdown

Power Description

Input Voltage	230 V AC
Power Rating (VA)	7400 VA W
Power Rating (Watt)	17.30 kW
Input Current	32 A

Management

Web
SNMP
Telnet

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Mounting Orientation	Horizontal/Vertical/Toolless
Mount Type	Rack-mountable
Form Factor	Tower
Rack Height	0U
Height	72" mm
Width	2.2" mm
Depth	1.8" mm
Weight (Approximate)	16.18 lb g

Miscellaneous

Package Contents	Rack PDU 9000 Switched, ZeroU, 32A, 230V, (21) C13 & (3) C19 Installation guide Rack mounting brackets Safety guide Serial configuration cable
Country of Origin	India

Warranty

Limited Warranty

2 Year

In stock

APC by Schneider Electric APDU9961 APC NetShelter Switched Rack PDU, 9K series, 0U, 5.7kW, 200/208V, 21 C13/C15 and 3 C19/C21 outlets

$2,755.00

APC NetShelter Switched Rack PDU, 9K series, 0U, 5.7kW, 200/208V, 21 C13/C15 and 3 C19/C21 outlets - Switched - NEMA L21-20P - 3 x IEC 60320 C19/C21, 21 x IEC 60320 C13/C15 - 208 V - Network (RJ-45) - 5.97 ft Cord Length - 0U - Vertical - Rack-mountable - Tower

1-Year Secure Network Management Card subscription included
It can handle a maximum power capacity of 5.7kW, ideal for various applications
It features 21 IEC C13 and C15 outlets and 3 IEC C19 and C21 outlets, providing extensive connectivity options
Designed for ZeroU mounting, it saves rack space and facilitates better cable management
Supports remote monitoring and control, allowing for efficient power management

General Information

Manufacturer	Schneider Electric SA
Manufacturer Part Number	APDU9961
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Series	9000
Product Name	NetShelter 9000 24-Outlets PDU
Marketing Information	It is a switched rack PDU with a maximum current capacity of 20A and an input voltage of 208V. It includes 21 C13 and C15 outlets and 3 C19 and C21 outlets, connected via a NEMA L21-20P input connection. The PDU has a ZeroU form factor and a cord length of 6 feet (1.8 meters). It supports remote monitoring and user-defined alarms, with outlet-level on or off switching capabilities. The unit is UL Listed and CSA certified, ensuring high safety and performance standards.
Product Type	PDU

Technical Information

PDU Type	Switched
Phase	Three Phase
Plug/Connector Type	NEMA L21-20P
Receptacle Type	IEC 60320 C19/C21
Receptacle Type	IEC 60320 C13/C15
Receptacle Detail	3 x IEC 60320 C19/C21
Receptacle Detail	21 x IEC 60320 C13/C15

Power Description

Input Voltage	208 V
Output Voltage	208 V AC
Power Rating (VA)	5700 VA W
Power Rating (Watt)	5800 W
Input Current	20 A

Management

Web
SNMP
Telnet

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Mounting Orientation	Vertical
Mount Type	Rack-mountable
Form Factor	Tower
Placement	Side
Rack Height	0U
Cord Length	5.97 ft mm
Height	70.6" mm
Width	2.2" mm
Depth	1.8" mm
Weight (Approximate)	15.23 lb g

Miscellaneous

Package Contents	NetShelter 9000 24-Outlets PDU Installation guide Rack mounting brackets Safety guide
Country of Origin	India
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No

Warranty

Limited Warranty

3 Year

Low in stock

APC by Schneider Electric APDU9965 APC NetShelter Switched Rack PDU, 9K series, 0U, 8.6kW, 208V, 21 C13 and C15, 3 C19 and C21 outlets

$3,348.75

APC NetShelter Switched Rack PDU, 9K series, 0U, 8.6kW, 208V, 21 C13 and C15, 3 C19 and C21 outlets - Switched - NEMA L21-30P - 3 x IEC 60320 C19/C21, 21 x IEC 60320 C13/C15 - 208 V - Network (RJ-45) - 5.97 ft Cord Length - 0U - Vertical - Rack-mountable - Tower

1-Year Secure Network Management Card subscription included
It can handle a maximum power capacity of 8.6kW, suitable for high-power applications
It includes 21 IEC C13 and C15 outlets and 3 IEC C19 and C21 outlets, offering extensive connectivity
The ZeroU mounting design helps save rack space and improves cable management
Allows for remote monitoring and control, enhancing power management capabilities

General Information

Manufacturer	Schneider Electric SA
Manufacturer Part Number	APDU9965
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Series	9000
Product Name	NetShelter 9000 24-Outlets PDU
Marketing Information	It is a switched rack PDU with a maximum current capacity of 30A and an input voltage of 208V. It features 21 C13 and C15 outlets and 3 C19 and C21 outlets, connected via a NEMA L21-30P input connection. The PDU has a ZeroU form factor and a cord length of 6 feet (1.8 meters). It supports remote monitoring and user-defined alarms, with outlet-level on or off switching capabilities. The unit is UL Listed and CSA certified, ensuring high safety and performance standards. More from the Manufacturer
Product Type	PDU

Technical Information

PDU Type	Switched
Phase	Three Phase
Plug/Connector Type	NEMA L21-30P
Receptacle Type	IEC 60320 C19/C21
Receptacle Type	IEC 60320 C13/C15
Receptacle Detail	3 x IEC 60320 C19/C21
Receptacle Detail	21 x IEC 60320 C13/C15

Power Description

Input Voltage	208 V
Output Voltage	208 V AC
Power Rating (VA)	8600 VA W
Power Rating (Watt)	8600 W
Input Current	30 A

Management

SNMP
Redfish

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Mounting Orientation	Vertical
Mount Type	Rack-mountable
Form Factor	Tower
Placement	Side
Rack Height	0U
Cord Length	5.97 ft mm
Height	72" mm
Width	2.2" mm
Depth	2" mm
Weight (Approximate)	18.03 lb g

Miscellaneous

Package Contents	NetShelter 9000 24-Outlets PDU Installation guide Rack mounting brackets Safety guide
Country of Origin	India
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No

Warranty

Limited Warranty

3 Year

In stock

APC by Schneider Electric APDU9966 APC NetShelter Switched Rack PDU, 9K series, 0U, 17.3kW, 208V, 20 C13/C15, 12 C19/C21 outlets

$6,061.00

APC NetShelter Switched Rack PDU, 9K series, 0U, 17.3kW, 208V, 20 C13/C15, 12 C19/C21 outlets - Switched - IEC 60309 60A 3P+PE - 12 x IEC 60320 C19/C21, 20 x IEC 60320 C13/C15 - 208 V - Network (RJ-45) - 5.97 ft Cord Length - Rack-mountable

It can handle a maximum power capacity of 17.3kW, making it suitable for very high-power applications
It features 20 IEC C13 and C15 outlets and 12 IEC C19 and C21 outlets, providing extensive connectivity options
Designed for ZeroU mounting, it saves rack space and facilitates better cable management
Supports remote monitoring and control, allowing for efficient power management

General Information

Manufacturer	Schneider Electric SA
Manufacturer Part Number	APDU9966
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Series	9000
Product Name	NetShelter 9000 32-Outlet PDU
Marketing Information	It is a switched rack PDU with a maximum current capacity of 60A and an input voltage of 208V. It includes 20 C13 and C15 outlets and 12 C19 and C21 outlets, connected via an IEC 60309 60A 3P + PE plug. It supports a maximum line current of 48A. More from the Manufacturer
Product Type	PDU

Technical Information

PDU Type	Switched
Phase	Three Phase
Plug/Connector Type	IEC 60309 60A 3P+PE
Receptacle Type	IEC 60320 C19/C21
Receptacle Type	IEC 60320 C13/C15
Receptacle Detail	12 x IEC 60320 C19/C21
Receptacle Detail	20 x IEC 60320 C13/C15

Power Description

Input Voltage	208 V
Output Voltage	208 V AC
Power Rating (VA)	17.30 kVA W
Power Rating (Watt)	17.30 kW
Input Current	60 A

Management

SNMP
Redfish

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Mount Type	Rack-mountable
Placement	Side
Cord Length	5.97 ft mm
Height	72.2" mm
Width	4.4" mm
Depth	3" mm
Weight (Approximate)	30.86 lb g

Miscellaneous

Package Contents	NetShelter 9000 32-Outlet PDU Installation guide Rack mounting brackets Safety guide Serial configuration cable
Country of Origin	India
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No

Warranty

Limited Warranty

3 Year

Low in stock

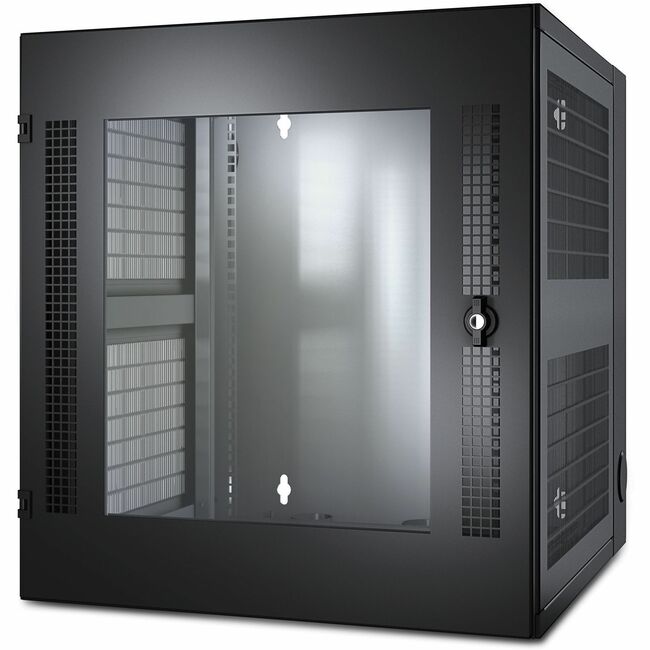

APC by Schneider Electric AR100 APC NetShelter 13U Wallmount Rack Cabinet Glass Door Double Hinged Server Depth

$1,372.50

APC NetShelter 13U Wallmount Rack Cabinet Glass Door Double Hinged Server Depth - For Networking, Airflow System - 13U Rack Height x 19" Rack Width x 19" Rack Depth - Wall Mountable - Black - Glass, Steel - 200.42 lb Static/Stationary Weight Capacity - 5 Year Warranty

Efficient and secure edge computing solution when floor space is limited
Wall mount Rack Enclosure
13U, 631mm deep, Max. load 200lb
Rear hinging for equipment installation & mainteance
Reversible single-hinge front door
Adjustable front mounting rails with square or #12-24 tapped holes
Glass front door
Fan tray AR8206ABLK sold separately
Ships pre-assembled
5 year APC warranty

General Information

Manufacturer	Schneider Electric SA
Manufacturer Part Number	AR100
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Line	NetShelter WX
Product Model	AR100
Product Name	NetShelter WX 13U w/Threaded Hole Vertical Mounting Rail Glass Front Door Black
Marketing Information	Ideal for retail, healthcare, and educational facilities, the wall rack offers an efficient solution for deploying server and networking equipment for edge computing applications. For areas with limited floor space. Designed to house your server, as well as network solutions such as network switches and patch panels. Rack hinges at the rear allowing for access to the back of the rack during installation and setup or while undergoing maintenance. The door is reversible allowing for the door to open direction desired to avoid interference with its surroundings. Optional 120V fan tray top mounted and caster kit. Several APC Smart-UPS models low-profile provide easy UPS integration and mounting. 13U Wall mount cabinet, 19 inches maximum mounting depth, 200lb weight capacity, 19"" rack width, ships fully assembled, glass door, 5 year APC warranty More from the Manufacturer
Product Type	Rack Cabinet

Technical Information

Application/Usage	Networking
Application/Usage	Airflow System
Mounting Preference	No Preference

Physical Characteristics

Form Factor	Wall Mountable
Color Family	Black
Product Color	Black
Product Material	Glass
Product Material	Steel
Static/Stationary Weight Capacity	200.42 lb g
Height	26.1" mm
Width	23" mm
Depth	24.8" mm
Rack Height	13U
Rack Width	19" mm
Rack Depth	19" mm
Weight (Approximate)	94.20 lb g

Miscellaneous

Package Contents	NetShelter WX 13U Rack Cabinet Key(s) User Manual Wall-mounting template
Assembly Required	No
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No

Warranty

Limited Warranty

5 Year

Low in stock

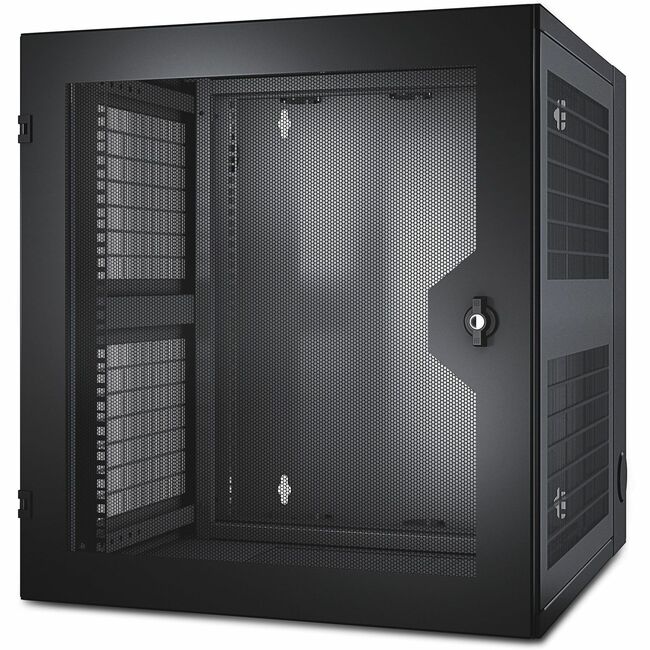

APC by Schneider Electric AR100HD APC NetShelter 13U Wallmount Rack Cabinet Vented Door Double Hinged Server Depth

$1,403.00

APC NetShelter 13U Wallmount Rack Cabinet Vented Door Double Hinged Server Depth - For Networking, Airflow System - 13U Rack Height x 19" Rack Width - Wall Mountable - Black - Steel - 200.42 lb Static/Stationary Weight Capacity - 5 Year Warranty

Efficient and secure edge computing solution when floor space is limited
Wallmount Rack Enclosure
13U, 631mm deep, Max. load 200lb
Rear hinging for equipment installation & mainteance
Reversible single-hinge front door
Adjustable front mounting rails with square or #12-24 tapped holes
Ventilated front door
Fan tray AR8206ABLK sold separately
Ships pre-assembled
5 year APC warranty

General Information

Manufacturer	Schneider Electric SA
Manufacturer Part Number	AR100HD
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Line	NetShelter WX
Product Name	NetShelter WX 13U w/Threaded Hole Vertical Mounting Rail Vented Front Door Black
Marketing Information	Ideal for retail, healthcare, and educational facilities, the wall rack offers an efficient solution for deploying server and networking equipment for edge computing applications. For areas with limited floor space. Designed to house your server, as well as network solutions such as network switches and patch panels. Rack hinges at the rear allowing for access to the back of the rack during installation and setup or while undergoing maintenance. The door is reversible allowing for the door to open direction desired to avoid interference with its surroundings. Optional 120V fan tray top mounted and caster kit. Several APC Smart-UPS models low-profile provide easy UPS integration and mounting. 13U Wall mount cabinet, 19 inches maximum mounting depth, 200lb weight capacity, 19"" rack width, ships fully assembled, vented door, 5 year APC warranty More from the Manufacturer
Product Type	Rack Cabinet

Technical Information

Application/Usage	Networking
Application/Usage	Airflow System
Features	Side-to-side Airflow
Features	Cable Management
Features	Adjustable Mounting Rails
Mounting Preference	No Preference

Physical Characteristics

Form Factor	Wall Mountable
Color Family	Black
Product Color	Black
Product Material	Steel
Static/Stationary Weight Capacity	200.42 lb g
Height	26.1" mm
Width	23" mm
Depth	24.8" mm
Rack Height	13U
Rack Width	19" mm
Weight (Approximate)	94.20 lb g

Miscellaneous

Package Contents	NetShelter WX 13U w/Threaded Hole Vertical Mounting Rail Vented Front Door Black Key(s) User Manual Wall-Mounting Template
Assembly Required	No
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No

Warranty

Limited Warranty

5 Year

Low in stock

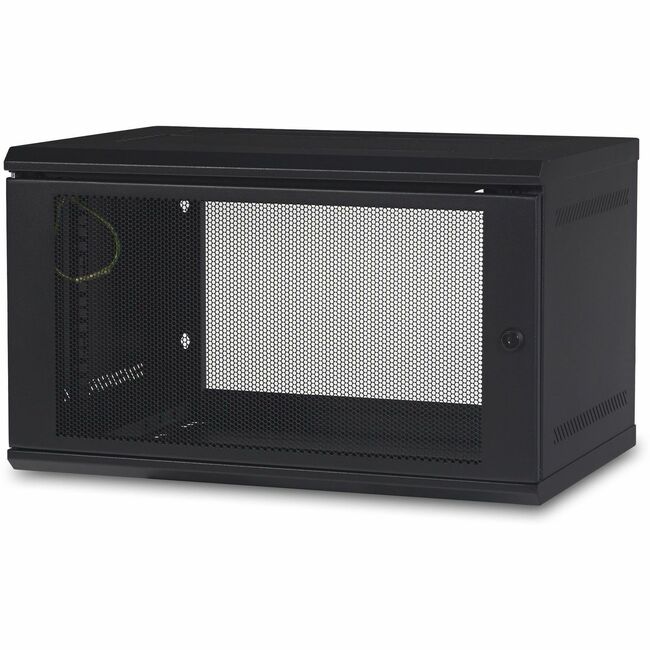

APC by Schneider Electric AR106 APC NetShelter 6U Wallmount Rack Enclosure Cabinet, Single Hinged, Switch Depth, Unassembled

$411.24

APC NetShelter 6U Wallmount Rack Enclosure Cabinet, Single Hinged, Switch Depth, Unassembled - For Server, LAN Switch - 6U Rack Height x 19" Rack Width x 12.95" Rack Depth - Wall Mountable - Black - 200.42 lb Static/Stationary Weight Capacity - 5 Year Warranty

Efficient and secure edge computing solution when floor space is limited
Wallmount Rack Enclosure
6U, 400mm deep, Max. load 200lb
Reversible single-hinge door
Keyed handle
Ventilated
1/2U knockouts top/bottom
Includes hardware
Fan tray AR8213 is sold separately
Ships unassembled, 5 year APC warranty

General Information

Manufacturer	Schneider Electric SA
Manufacturer Part Number	AR106
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Line	NetShelter WX
Product Model	AR106
Product Name	NetShelter WX 6U Wall Mount Cabinet
Marketing Information	Ideal for retail, healthcare, and educational facilities, the wall rack offers an efficient solution for deploying server and networking equipment for edge computing applications. For areas with limited floor space. Designed to house your server, as well as network solutions such as network switches and patch panels. Rack is packaged unassembled for smaller storage and delivery and takes up to 60% less space than assembled alternatives. The door is reversible allowing for the door to open direction desired to avoid interference with its surroundings. Optional 120V fan tray top/bottom mounted. Top/bottom feature knockouts 1/2U of mounting space for accessories. Several APC Smart-UPS models low-profile provide easy UPS integration and mounting. 6U Wall mount cabinet, 8.9 to 12.9 inches mounting depth, 200lb weight capacity, 19"" rack width, ships unassembled, 5 year APC warranty More from the Manufacturer
Packaged Quantity	1 Each
Product Type	Rack Cabinet

Technical Information

Application/Usage	Server
Application/Usage	LAN Switch
Mounting Preference	No Preference

Physical Characteristics

Form Factor	Wall Mountable
Color Family	Black
Product Color	Black
Static/Stationary Weight Capacity	200.42 lb g
Height	14" mm
Width	23.6" mm
Depth	15.7" mm
Rack Height	6U
Rack Width	19" mm
Rack Depth	12.95" mm
Weight (Approximate)	20.70 lb g

Miscellaneous

Country of Origin	India
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No

Warranty

Limited Warranty	5 Year
Additional Warranty Information	5 year repair or replace

Low in stock

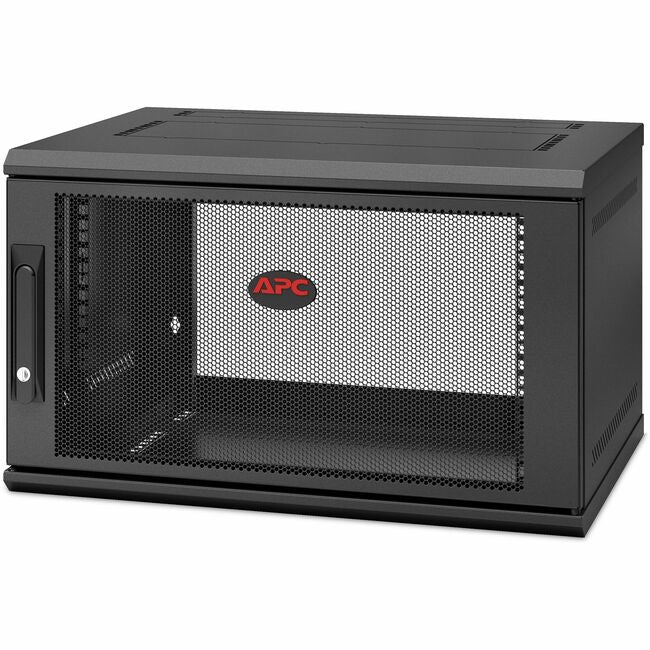

APC by Schneider Electric AR106SH4 APC NetShelter 6U Wallmount Rack Enclosure Cabinet Single Hinged Switch Depth

$507.84

APC NetShelter 6U Wallmount Rack Enclosure Cabinet Single Hinged Switch Depth - For Networking, Airflow System - 6U Rack Height x 19" Rack Width x 12.95" Rack Depth - Wall Mountable - Black - 200.42 lb Static/Stationary Weight Capacity - 5 Year Warranty

Efficient and secure edge computing solution when floor space is limited
6U, 400mm deep, Max. load 200lb
Reversible single-hinge door
Locking swing handle
Ventilated
1/2U knockouts top/bottom
Includes hardware
Fan tray AR8213, Combo handle AR8132A, NetBotz NBRK0750/NBHN0125 are sold separately
Ships pre-assembled
5 year APC warranty

General Information

Manufacturer	Schneider Electric SA
Manufacturer Part Number	AR106SH4
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Line	NetShelter WX
Product Model	AR106SH4
Product Name	NetShelter WX 6U Single Hinged Wall-mount Enclosure 400mm Deep
Marketing Information	Ideal for retail, healthcare, and educational facilities, this wall mount rack offers an efficient solution for deploying server and networking equipment for edge computing applications. This rack enclosure is wall mountable, ideal for areas with limited floor space, and is designed specifically for servers and network switches and patch panels. The cabinet's door is reversible and is compatible with APC's Netbotx security upgrade to provide remote access, video surveillance, and environmental monitoring (sold separately). Optional 120V fan tray can be top or bottom mounted (sold separately) Both the top and bottom feature knockouts of 1/2U mounting space for accessories. And several APC Smart-UPS models low-profile provide easy UPS integration and mounting Wall mount cabinet, mounting depth range of 2.87 to 12.95 inches, 200lb weight capacity, 19"" rack width, ships fully assembled, ventilated with accessory integration options, 5 year APC warranty. More from the Manufacturer
Packaged Quantity	1 Each
Product Type	Rack Cabinet

Technical Information

Application/Usage	Networking
Application/Usage	Airflow System
Mounting Preference	No Preference

Physical Characteristics

Form Factor	Wall Mountable
Color Family	Black
Product Color	Black
Static/Stationary Weight Capacity	200.42 lb g
Height	14" mm
Width	23.6" mm
Depth	15.7" mm
Rack Height	6U
Rack Width	19" mm
Rack Depth	12.95" mm
Weight (Approximate)	24.49 lb g

Miscellaneous

Assembly Required	No
Country of Origin	Philippines
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No

Warranty

Limited Warranty

5 Year

Low in stock

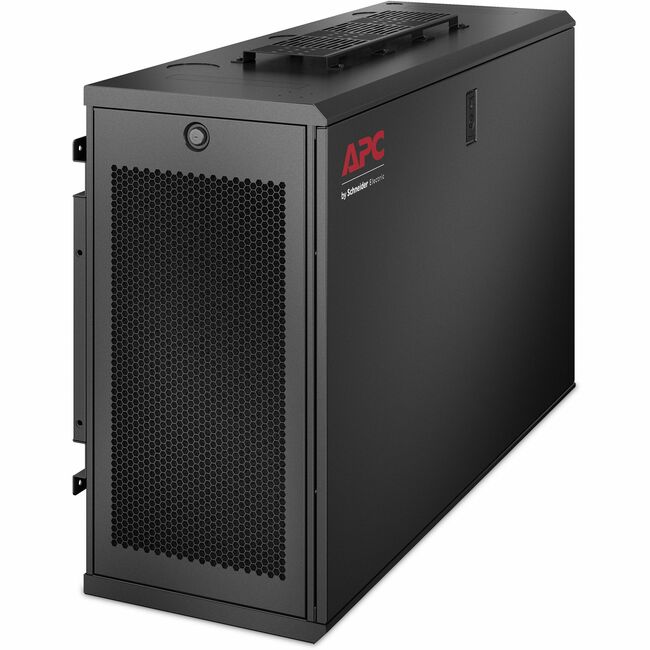

APC BY Schneider Electric AR106V Schneider Electric NetShelter 6U Low-profile Wallmount Rack Enclosure Cabinet 120V Server Depth

$1,725.00

Schneider Electric NetShelter 6U Low-profile Wallmount Rack Enclosure Cabinet 120V Server Depth - For Networking, Storage, Converged Infrastructure, Server, Airflow System - 6U Rack Height x 19" Rack Width x 30" Rack Depth - Wall Mountable - Black - 250.53 lb Dynamic/Rolling Weight Capacity - 250.53 lb Static/Stationary Weight Capacity - 5 Year Warranty

Efficient and secure edge computing solution when floor space is limited
Wallmount Rack Enclosure
6U, 30in mounting depth, Max.load 250lb
Wallmount or stand alone with optional casters
Vertical device mounting
Fan and dust filter included
Shock packaging included for easy integration
APC Smart-UPS, Casters AR8471, Netbotz NBRK0750 are sold separately
Ships pre-assembled
5 year APC warranty

General Information

Manufacturer	Schneider Electric SA
Manufacturer Part Number	AR106V
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	Schneider Electric
Product Line	NetShelter WX
Product Name	NetShelter WX 6U Low-Profile Wall Mount Enclosure 120V Fans
Marketing Information	APC by Schneider Electric 6U Wall-Mount is an innovative new way to deploy server and networking equipment at the edge. Ideal for retail, healthcare, educational facilities and light industrial spaces, the low-profile design offers an efficient solution for deploying hyperconverged server and networking applications. The rack enclosure allows longer depth equipment to be wall mounted, up to 30 inches deep. A detachable wall bracket and optional casters (sold separately) allow the server rack to be mounted on either the wall or stand alone on the floor. A dust filter and two integrated fans allow deployment in light-industrial environments. APC Smart-UPS, APC NetBotz Physical and Environmental Security, and APC EcoStruxure IT can be configured with this cabinet (sold separately). 6U vertical wall-mount cabinet, 30 in mounting depth, 250 lb weight capacity, 19" rack width, side panels for access to equipment, ships fully assembled, UL2416 Listed, MERV 5 dust filter and 120V integrated fans included. Input connector IEC 60320 C13 with 500VA - 1.5kVA output power capacity. More from the Manufacturer
Product Type	Rack Cabinet

Technical Information

Application/Usage	Networking
Application/Usage	Storage
Application/Usage	Converged Infrastructure
Application/Usage	Server
Application/Usage	Airflow System
Mounting Location	Vertical
Mounting Preference	No Preference

Power Description

Plug/Connector Type

IEC 60320 C13

Physical Characteristics

Form Factor	Wall Mountable
Color Family	Black
Product Color	Black
Dynamic/Rolling Weight Capacity	250.53 lb g
Static/Stationary Weight Capacity	250.53 lb g
Height	25.5" mm
Width	13.9" mm
Depth	38.1" mm
Rack Height	6U
Rack Width	19" mm
Rack Depth	30" mm
Weight (Approximate)	80.01 lb g

Miscellaneous

Assembly Required	No
Country of Origin	Philippines
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No

Warranty

Limited Warranty

5 Year

In stock

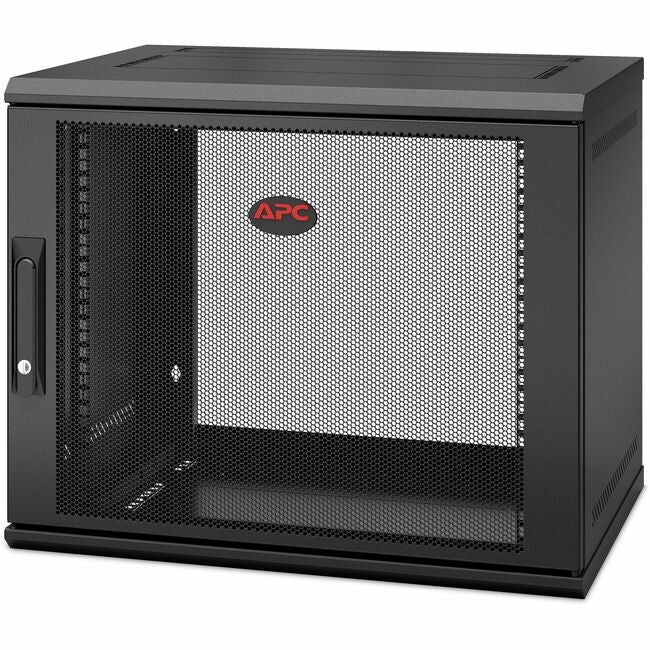

APC by Schneider Electric AR109SH4 APC NetShelter 9U Wallmount Rack Enclosure Cabinet Single Hinged Switch Depth

$655.04

APC NetShelter 9U Wallmount Rack Enclosure Cabinet Single Hinged Switch Depth - For Networking, Airflow System - 9U Rack Height x 19" Rack Width x 12.95" Rack Depth - Wall Mountable - Black - 200.42 lb Static/Stationary Weight Capacity - 5 Year Warranty

Efficient and secure edge computing solution when floor space is limited
Wallmount Rack Enclosure
6U, 600mm deep, Max. load 200lb
Reversible single-hinge door
Locking swing-handle
Ventilated
1/2U knockouts top/bottom
Includes hardware
Fan tray AR8213, Combo handle AR8132A, NetBotz NBRK0750/NBHN0125 are all sold separately
Ships pre-assembled, 5 year APC warranty

General Information

Manufacturer	Schneider Electric SA
Manufacturer Part Number	AR109SH4
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Line	NetShelter WX
Product Name	NetShelter WX 9U Single Hinged Wall-mount Enclosure 400mm Deep
Marketing Information	Ideal for retail, healthcare, and educational facilities, this wall mount rack offers an efficient solution for deploying server and networking equipment for edge computing applications. This rack enclosure is wall mountable, ideal for areas with limited floor space, and is designed specifically for servers and network switches and patch panels. The cabinet's door is reversible and is compatible with APC's Netbotx security upgrade to provide remote access, video surveillance, and environmental monitoring (sold separately). Optional 120V fan tray can be top or bottom mounted (sold separately) Both the top and bottom feature knockouts of 1/2U mounting space for accessories. And several APC Smart-UPS models low-profile provide easy UPS integration and mounting. 6U Wall mount cabinet, mounting depth range of 2.87 to 20.8 inches, 200lb weight capacity, 19"" rack width, ships fully assembled, ventilated with accessory integration options, 5 year APC warranty. More from the Manufacturer
Packaged Quantity	1 Each
Product Type	Rack Cabinet

Technical Information

Application/Usage	Networking
Application/Usage	Airflow System
Mounting Preference	No Preference

Physical Characteristics

Form Factor	Wall Mountable
Color Family	Black
Product Color	Black
Static/Stationary Weight Capacity	200.42 lb g
Height	19.1" mm
Width	23.6" mm
Depth	15.7" mm
Rack Height	9U
Rack Width	19" mm
Rack Depth	12.95" mm
Weight (Approximate)	28.70 lb g

Miscellaneous

Assembly Required	No
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No

Warranty

Limited Warranty

5 Year

Out of stock

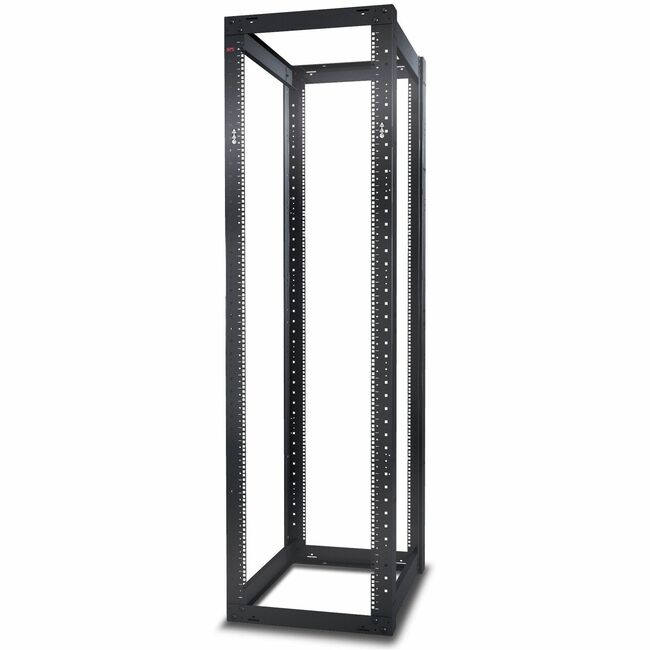

APC by Schneider Electric AR203A APC NetShelter Open Frame Rack, 4 Post, 44U, Square Holes

$1,177.60

In stock

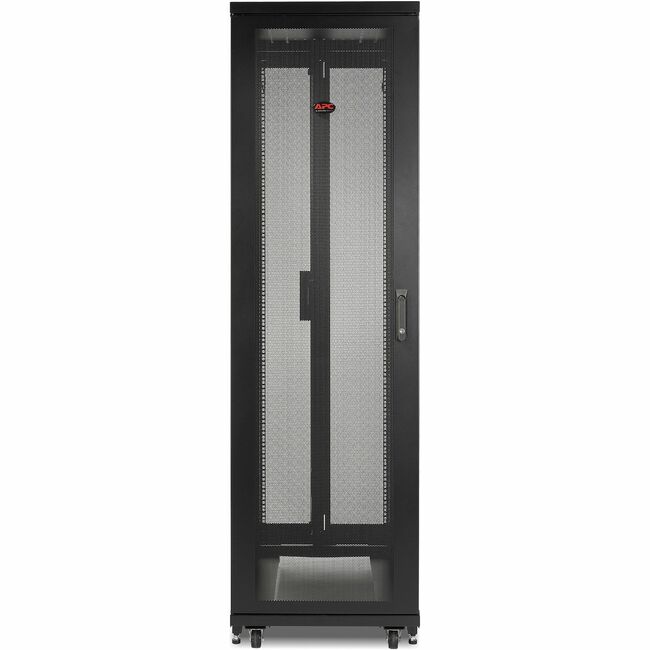

APC by Schneider Electric AR2400 APC NetShelter SV, Server Rack Enclosure, 42U, 600W x 1060D mm, with Sides, Black

$1,835.40

APC NetShelter SV, Server Rack Enclosure, 42U, 600W x 1060D mm, with Sides, Black - 42U Rack Height x 19" Rack Width - Black - 1014.13 lb Dynamic/Rolling Weight Capacity - 2209.03 lb Static/Stationary Weight Capacity - 5 Year Warranty

Ideal for optimizing data center space while still providing ample room for equipment
It can handle heavy IT equipment
Includes pre-installed casters, leveling feet, and baying hardware, making it easy to set up and move as needed
Features integrated vertical 1U mounting spaces allowing for efficient cable management

General Information

Manufacturer	Schneider Electric SA
Manufacturer Part Number	AR2400
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Line	NetShelter SV
Product Name	NetShelter SV 42U 600mm Wide x 1060mm Deep Enclosure with Sides Black
Marketing Information	Universal IT enclosure with the features and functionality to meet the requirements and applications of rack-mount IT equipment in variety of IT environments. Reliable IT enclosure with a proven design and functionality for demanding IT environments. More from the Manufacturer
Product Type	Rack Cabinet

Technical Information

Mounting Preference

No Preference

Physical Characteristics

Color Family	Black
Product Color	Black
Dynamic/Rolling Weight Capacity	1014.13 lb g
Static/Stationary Weight Capacity	2209.03 lb g
Height	81" mm
Width	23.6" mm
Depth	41.7" mm
Rack Height	42U
Rack Width	19" mm
Weight (Approximate)	247.36 lb g

Miscellaneous

Package Contents	NetShelter SV 42U 600mm Wide x 1060mm Deep Enclosure with Sides Black Baying Hardware Doors Key(s) Keyed-alike Doors and Side Panels Leveling Feet Mounting Hardware Pre-Installed Casters 4 x Bolt-Down Brackets Roof Side Panels Unpacking Sheet
Assembly Required	Yes
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No

Warranty

Limited Warranty

5 Year

Low in stock

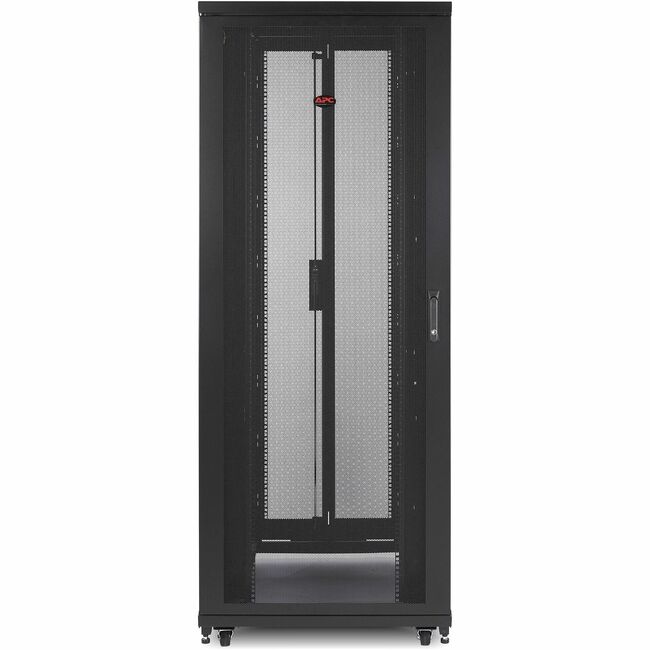

APC by Schneider Electric AR2487 APC NetShelter SV, Server Rack Enclosure, 48U, 800W x 1060D mm, with Sides, Black

$2,578.50

APC NetShelter SV, Server Rack Enclosure, 48U, 800W x 1060D mm, with Sides, Black - 48U Rack Height x 19" Rack Width - Black - 1014 lb Dynamic/Rolling Weight Capacity - 2205 lb Static/Stationary Weight Capacity - 5 Year Warranty

It is a 48U enclosure for denser server and networking applications
It can handle heavy IT equipment
Features integrated vertical 1U mounting spaces allowing for efficient cable management
Includes pre-installed casters, leveling feet, and baying hardware, making it easy to set up and move as needed

General Information

Manufacturer	Schneider Electric SA
Manufacturer Part Number	AR2487
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Line	NetShelter SV
Product Name	NetShelter SV 48U 800mm Wide x 1060mm Deep Enclosure with Sides Black
Marketing Information	The APC NetShelter SV 48U Enclosure is designed for high-density server and networking applications. It includes baying hardware, doors, keys, leveling feet, mounting hardware, pre-installed casters, bolt-down brackets, a roof, and side panels. The enclosure conforms to UL 2416, UL 60950-1, and EIA-310E standards. More from the Manufacturer
Product Type	Rack Cabinet

Technical Information

Mounting Preference

No Preference

Physical Characteristics

Color Family	Black
Product Color	Black
Dynamic/Rolling Weight Capacity	1014 lb g
Static/Stationary Weight Capacity	2205 lb g
Height	91.5" mm
Width	31.5" mm
Depth	41.7" mm
Rack Height	48U
Rack Width	19" mm
Weight (Approximate)	317.02 lb g

Miscellaneous

Package Contents	NetShelter SV 48U 800mm Wide x 1060mm Deep Enclosure with Sides Black Baying Hardware Doors Key(s) Keyed-Alike Doors and Side Panels Leveling Feet Mounting Hardware Pre-Installed Casters 4 x Bolt-Down Brackets Roof Side Panels Unpacking Sheet
Assembly Required	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No

Warranty

Limited Warranty

5 Year

Low in stock

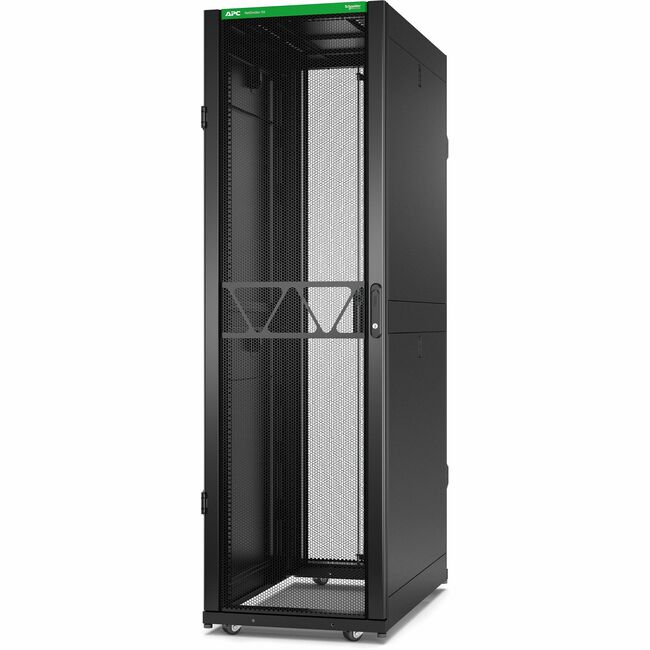

APC by Schneider Electric AR3100B2 APC NetShelter SX Server Rack Gen 2, 42U, 1991H x 600W x 1070D mm, with Sides, Black [TAA]

$3,224.60

APC NetShelter SX Server Rack Gen 2, 42U, 1991H x 600W x 1070D mm, with Sides, Black [TAA] - For Server, Networking, IT Equipment - 42U Rack Height x 19" Rack Width Enclosed Cabinet - Black - Steel - 5 Year Warranty - TAA Compliant

Ideal for AI, high density server and networking applications
2nd Gen model with higher load capacity and better airflow
Complete environmental data for sustainability initiatives
Ample space, organization, security and convenience features
Extensive list of compatible products and accessories

General Information

Manufacturer	Schneider Electric SA
Manufacturer Part Number	AR3100B2
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Line	NetShelter SX
Product Name	NetShelter SX Server Rack Gen 2, 42U, 1991H x 600W x 1070D mm, with Sides, Black
Marketing Information	Introducing the redesigned APC NetShelter SX rack enclosure - trusted, versatile, and built for demanding IT environments. With larger load capacities and more space for equipment, it enables higher-density computing. Choose from standard, wide, extra wide, and large-depth options. The modern look is perfect for colocation and customer-facing businesses. Simplify workflows with easy access to cabling and equipment, and optimize airflow and cable management with our wide range of APC accessories. The 270° (180° bayed) opening doors keep aisles clear, while 80% door perforation improves airflow for high-powered servers. Built with all-steel construction, it lasts for years and can be used for various applications. It ships in sturdy, recyclable packaging. More from the Manufacturer
Packaged Quantity	1
Product Type	Rack Cabinet

Technical Information

Rack Type	Enclosed Cabinet
Application/Usage	Server
Application/Usage	Networking
Application/Usage	IT Equipment
Features	Cable Management
Features	Perforated Door
Mounting Preference	No Preference

Physical Characteristics

Color Family	Black
Product Color	Black
Product Material	Steel
Height	78.4" mm
Width	23.6" mm
Depth	42.1" mm
Rack Height	42U
Rack Width	19" mm
Weight (Approximate)	269.27 lb g

Miscellaneous

Package Contents	Baying hardware Key(s) Keyed-alike doors and side panels Leveling feet Mounting Hardware Pre-installed casters Side Panels
Country of Origin	China
TAA Compliant	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No

Warranty

Limited Warranty

5 Year

In stock

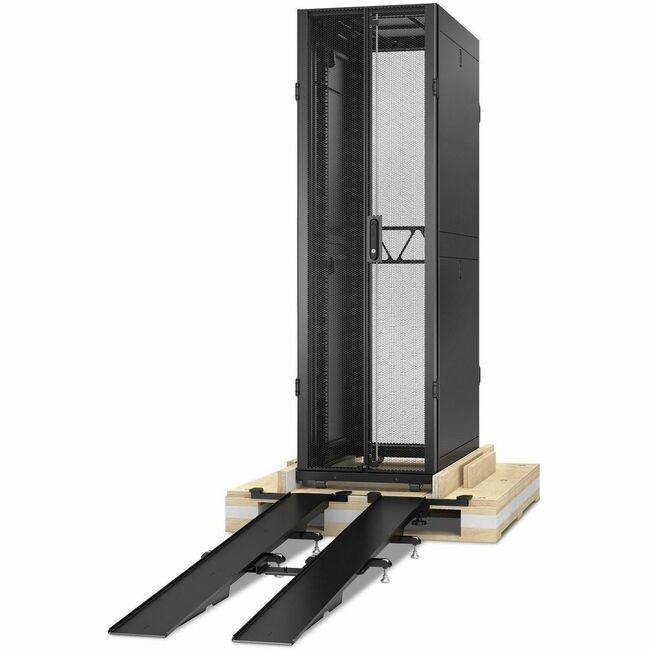

APC by Schneider Electric AR3100SPB2 Schneider Electric NetShelter SX, Server Rack Enclosure Gen 2, Shock Packaging, 2500 lbs, Black, 42U x 600W x 1070D

$5,553.00

Schneider Electric NetShelter SX, Server Rack Enclosure Gen 2, Shock Packaging, 2500 lbs, Black, 42U x 600W x 1070D - For Server, Rack, PDU, UPS, Transformer, Rack Shelf, Airflow System - 42U Rack Height x 19" Rack Width Enclosed Cabinet - Black - Steel - 4000 lb Static/Stationary Weight Capacity - 60 Month Warranty

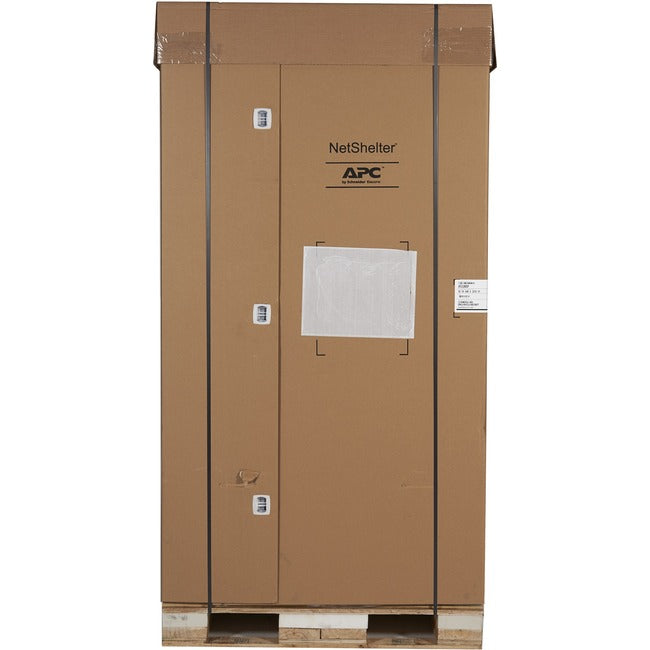

Safe shipping: ISTA 3E shock packaging ensures damage free transit
Fast deployment: Local manufacturing cuts lead times for quick execution
AI and HPC ready: Handles 2500 lb. shipping and 4000 lb. static loads
Easy Installation: Reusable ramp (sold separately) ensures quick, safe pallet removal
Reliable and flexible: 5 year warranty and sizes from 42U to 52U

General Information

Manufacturer	Schneider Electric SA
Manufacturer Part Number	AR3100SPB2
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	Schneider Electric
Product Line	NetShelter SX
Product Name	NetShelter SX Rack Mount Enclosure
Marketing Information	Introducing the redesigned APC NetShelter SX rack enclosure - trusted, versatile, and built for demanding IT environments. With larger load capacities and more space for equipment, it enables higher-density computing. Choose from standard, wide, extra wide, and large-depth options. The modern look is perfect for colocation and customer-facing businesses. Simplify workflows with easy access to cabling and equipment, and optimize airflow and cable management with our wide range of APC accessories. The 270° (180° bayed) opening doors keep aisles clear, while 80% door perforation improves airflow for high-powered servers. Built sustainably with all-steel construction, it lasts for years and can be used for various applications. It also boasts a 3.3% decarbonization rate and ships in sturdy, recyclable packaging. The racks are AI and HPC ready as it can handle 2500 lb. shipping and 4000 lb. static loads More from the Manufacturer
Packaged Quantity	1 Unit
Product Type	Rack Mount Enclosure

Technical Information

Rack Type	Enclosed Cabinet
Application/Usage	Server
Application/Usage	Rack
Application/Usage	PDU
Application/Usage	UPS
Application/Usage	Transformer
Application/Usage	Rack Shelf
Application/Usage	Airflow System
Ventilation	Yes
Features	Cable Management
Features	Perforated
Mounting Preference	No Preference

Physical Characteristics

Color Family	Black
Product Color	Black
Product Material	Steel
Static/Stationary Weight Capacity	4000 lb g
Height	78.4" mm
Width	23.6" mm
Depth	42.1" mm
Rack Height	42U
Rack Width	19" mm
Weight (Approximate)	269.27 lb g

Miscellaneous

Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Single-use Plastic (SUP) Free Shipping Packaging	No

Warranty

Limited Warranty

60 Month

Low in stock

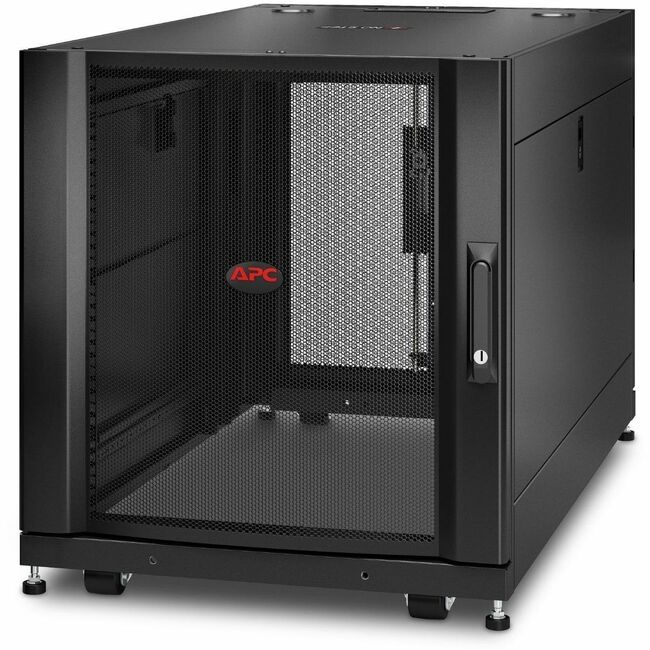

APC by Schneider Electric AR3103 APC NetShelter SX, Server Rack Enclosure, 12U, Black, 658H x 600W x 1070D mm [TAA]

$1,876.50

APC NetShelter SX, Server Rack Enclosure, 12U, Black, 658H x 600W x 1070D mm [TAA] - For Server, Storage - 12U Rack Height x 19" Rack Width x 36.25" Rack Depth - Floor Standing - Black - 2250 lb Dynamic/Rolling Weight Capacity - 3000 lb Static/Stationary Weight Capacity - 5 Year Warranty - TAA Compliant

Compact design fits tight spaces, ideal for small offices and remote deployments
Vendor-neutral EIA-310 19" rack mounting compatibility with adjustable rails
Ready for low to medium density edge computing
Two zero-U accessory channels to maximize equipment space

General Information

Manufacturer	Schneider Electric SA
Manufacturer Part Number	AR3103
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Line	NetShelter SX
Product Name	NetShelter SX 12U Server Rack Enclosure 600mm x 1070mm w/ Sides Black
Marketing Information	APC NetShelter SX server rack enclosure with the most standard features for speed of deployment and installation. Rack design offers 12RU height with 921 mm max equipment mounting depth, 272 kg (600 lb) static load, and 272 kg (600 lb) dynamic load and two 0U accessory channels. Shorter height allows for deployment underneath cabinets, desks, in remote office branch office spaces for a secure and discrete solution for IT devices. More from the Manufacturer
Product Type	Rack Cabinet

Technical Information

Application/Usage	Server
Application/Usage	Storage
Mounting Preference	No Preference

Physical Characteristics

Form Factor	Floor Standing
Color Family	Black
Product Color	Black
Dynamic/Rolling Weight Capacity	2250 lb g
Static/Stationary Weight Capacity	3000 lb g
Height	25.9" mm
Width	23.6" mm
Depth	42.1" mm
Rack Height	12U
Rack Width	19" mm
Rack Depth	36.25" mm
Weight (Approximate)	130.01 lb g

Miscellaneous

Assembly Required	Yes
Country of Origin	United States
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No

Warranty

Limited Warranty

5 Year

Low in stock

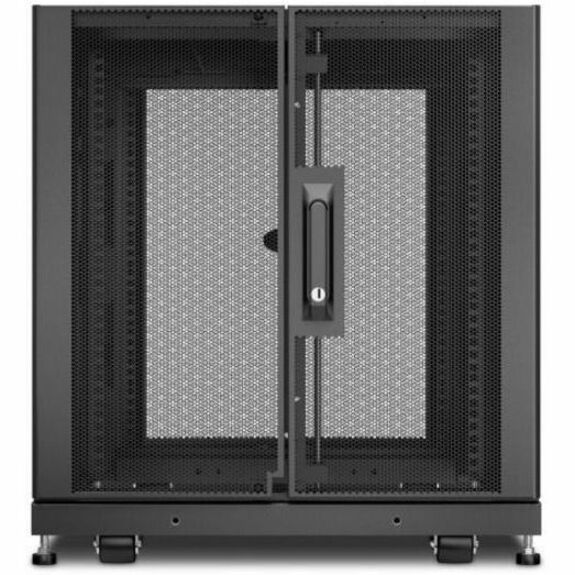

APC by Schneider Electric AR3106 APC Netshelter SX, Server Rack Enclosure, 18U, Black, 925H x 600W x 1070D mm [TAA]

$2,304.60

APC Netshelter SX, Server Rack Enclosure, 18U, Black, 925H x 600W x 1070D mm [TAA] - For Server, Storage - 18U Rack Height x 19" Rack Width x 36.25" Rack Depth - Floor Standing - Black - 2255.33 lb Dynamic/Rolling Weight Capacity - 3007.11 lb Static/Stationary Weight Capacity - 5 Year Warranty - TAA Compliant

Compact design fits tight spaces, ideal for small offices and remote deployments
Vendor-neutral EIA-310 19" rack mounting compatibility with adjustable rails
Ready for low to medium density edge computing
Two zero-U accessory channels to maximize equipment space

General Information

Manufacturer	Schneider Electric SA
Manufacturer Part Number	AR3106
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Line	NetShelter SX
Product Name	NetShelter SX 18U Server Rack Enclosure 600mm x 1070mm w/ Sides Black
Marketing Information	APC NetShelter SX server rack enclosure with the most standard features for speed of deployment and installation. Rack design offers 18RU height with 921 mm max equipment mounting depth, 408 kg (900 lb) static load, and 408 kg (900 lb) dynamic load and two 0U accessory channels. Shorter height allows for deployment underneath cabinets, desks, in remote office branch office spaces for a secure and discrete solution for IT devices. More from the Manufacturer
Product Type	Rack Cabinet

Technical Information

Application/Usage	Server
Application/Usage	Storage
Mounting Preference	No Preference

Physical Characteristics

Form Factor	Floor Standing
Color Family	Black
Product Color	Black
Dynamic/Rolling Weight Capacity	2255.33 lb g
Static/Stationary Weight Capacity	3007.11 lb g
Height	36.4" mm
Width	23.6" mm
Depth	42.1" mm
Rack Height	18U
Rack Width	19" mm
Rack Depth	36.25" mm
Weight (Approximate)	159 lb g

Miscellaneous

Package Contents	NetShelter SX 18U Server Rack Enclosure 600mm x 1070mm w/ Sides Black Casters Doors Key(s) Leveling feet Roof Side panels
Assembly Required	Yes
Country of Origin	United States
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No

Warranty

Limited Warranty

5 Year

Low in stock

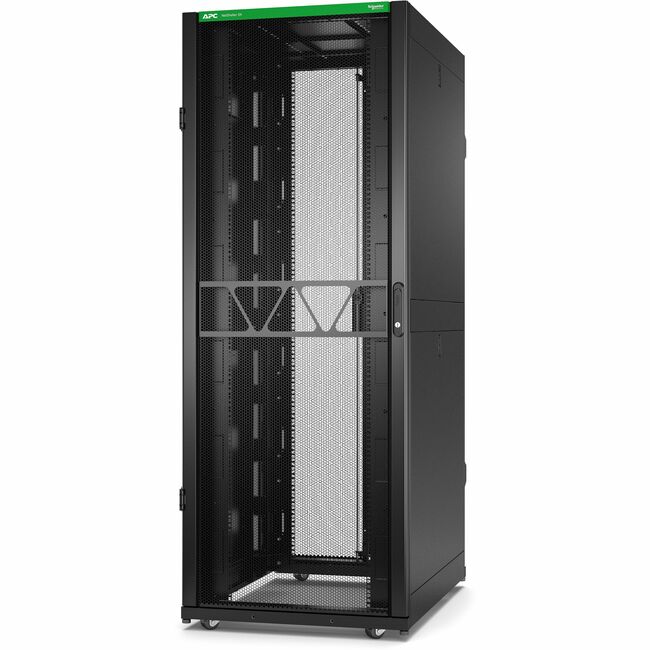

APC BY Schneider Electric AR3150B2 APC NetShelter SX Server Rack Gen 2, 42U, 1991H x 750W x 1070D mm, with Sides, Black [TAA]

$3,973.50

APC NetShelter SX Server Rack Gen 2, 42U, 1991H x 750W x 1070D mm, with Sides, Black [TAA] - For Server, Equipment, Networking, Data Center - 42U Rack Height x 19" Rack Width x 36.02" Rack Depth Enclosed Cabinet - Black - Steel - 2250.04 lb Dynamic/Rolling Weight Capacity - 4000.07 lb Static/Stationary Weight Capacity - 5 Year Warranty - TAA Compliant

Ideal for AI, high density server and networking applications
2nd Gen model with higher load capacity and better airflow
Complete environmental data for sustainability initiatives
Ample space, organization, security and convenience features
Extensive list of compatible products and accessories

General Information

Manufacturer	Schneider Electric SA
Manufacturer Part Number	AR3150B2
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Line	NetShelter SX
Product Name	NetShelter SX Server Rack Gen 2, 42U, 1991H x 750W x 1070D mm, with Sides, Black
Marketing Information	Introducing the redesigned APC NetShelter SX rack enclosure - trusted, versatile, and built for demanding IT environments. With larger load capacities and more space for equipment, it enables higher-density computing. Choose from standard, wide, extra wide, and large-depth options. The modern look is perfect for colocation and customer-facing businesses. Simplify workflows with easy access to cabling and equipment, and optimize airflow and cable management with our wide range of APC accessories. The 270° (180° bayed) opening doors keep aisles clear, while 80% door perforation improves airflow for high-powered servers. Built with all-steel construction, it lasts for years and can be used for various applications. It ships in sturdy, recyclable packaging. More from the Manufacturer
Packaged Quantity	1
Product Type	Rack Cabinet

Technical Information

Rack Type	Enclosed Cabinet
Application/Usage	Server
Application/Usage	Equipment
Application/Usage	Networking
Application/Usage	Data Center
Ventilation	Yes
Features	Cable Management
Features	Perforated Door
Mounting Preference	No Preference

Physical Characteristics

Color Family	Black
Product Color	Black
Product Material	Steel
Dynamic/Rolling Weight Capacity	2250.04 lb g
Static/Stationary Weight Capacity	4000.07 lb g
Height	78.4" mm
Width	29.5" mm
Depth	42.1" mm
Rack Height	42U
Rack Width	19" mm
Rack Depth	36.02" mm
Weight (Approximate)	335.39 lb g

Miscellaneous

Package Contents	NetShelter SX Server Rack Gen 2, 42U, 1991H x 750W x 1070D mm, with Sides, Black Baying hardware Key(s) Keyed-alike doors and side panels Leveling feet Mounting Hardware Pre-installed casters Side Panels
Country of Origin	China
TAA Compliant	Yes
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmental Compliance	China Restriction of Hazardous Substances (China RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No

Warranty

Limited Warranty

5 Year

Out of stock

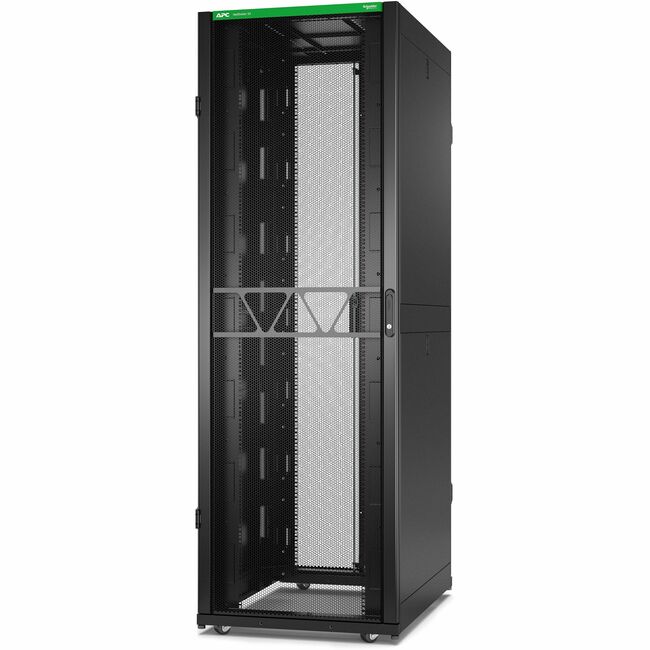

APC BY Schneider Electric AR3157B2 APC NetShelter SX Server Rack Gen 2, 48U, 2258H x 750W x 1070D mm, with Sides, Black [TAA]

$4,725.00

APC NetShelter SX Server Rack Gen 2, 48U, 2258H x 750W x 1070D mm, with Sides, Black [TAA] - For Server, Networking, IT Equipment - 48U Rack Height x 19" Rack Width Enclosed Cabinet - Black - Steel - 5 Year Warranty - TAA Compliant

Ideal for AI, high density server and networking applications
2nd Gen model with higher load capacity and better airflow
Complete environmental data for sustainability initiatives
Ample space, organization, security and convenience features
Extensive list of compatible products and accessories

General Information

Manufacturer	Schneider Electric SA
Manufacturer Part Number	AR3157B2
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Line	NetShelter SX
Product Name	NetShelter SX Server Rack Gen 2, 48U, 2258H x 750W x 1070D mm, with Sides, Black
Marketing Information	Introducing the redesigned APC NetShelter SX rack enclosure - trusted, versatile, and built for demanding IT environments. With larger load capacities and more space for equipment, it enables higher-density computing. Choose from standard, wide, extra wide, and large-depth options. The modern look is perfect for colocation and customer-facing businesses. Simplify workflows with easy access to cabling and equipment, and optimize airflow and cable management with our wide range of APC accessories. The 270° (180° bayed) opening doors keep aisles clear, while 80% door perforation improves airflow for high-powered servers. Built with all-steel construction, it lasts for years and can be used for various applications. It ships in sturdy, recyclable packaging. More from the Manufacturer
Packaged Quantity	1
Product Type	Rack Cabinet

Technical Information

Rack Type	Enclosed Cabinet
Application/Usage	Server
Application/Usage	Networking
Application/Usage	IT Equipment
Features	Cable Management
Features	Perforated Door
Mounting Preference	No Preference

Physical Characteristics

Color Family	Black
Product Color	Black
Product Material	Steel
Height	88.9" mm
Width	29.5" mm
Depth	42.1" mm
Rack Height	48U
Rack Width	19" mm
Weight (Approximate)	354.50 lb g

Miscellaneous

Package Contents	Baying hardware Key(s) Keyed-alike doors and side panels Leveling feet Mounting Hardware Pre-installed casters Side Panels
Country of Origin	China
TAA Compliant	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No

Warranty

Limited Warranty

5 Year

Low in stock

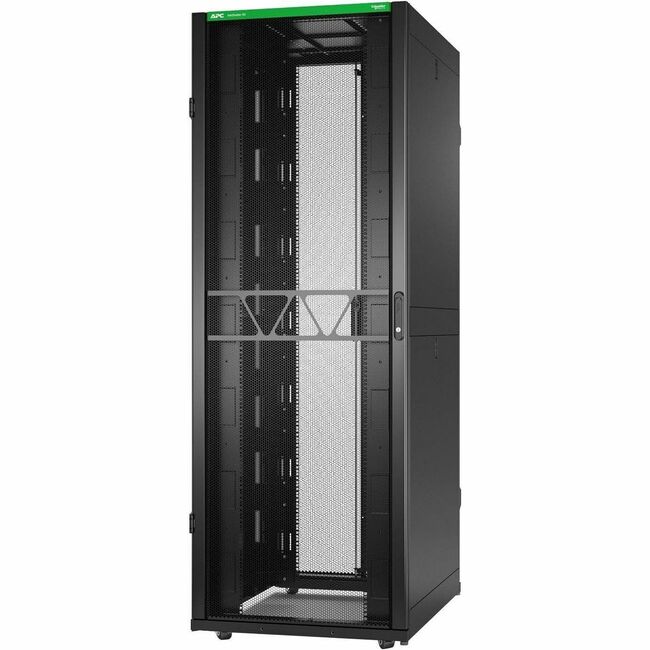

APC BY Schneider Electric AR3187B2 APC NetShelter SX Server Rack Gen 2, 48U, 2258H x 800W x 1070D mm,w/ Side,Black [TAA]

$5,296.50

APC NetShelter SX Server Rack Gen 2, 48U, 2258H x 800W x 1070D mm,w/ Side,Black [TAA] - For Server, Equipment, IT Equipment - 48U Rack Height x 19" Rack Width Enclosed Cabinet - Black - Steel - 2249.99 lb Dynamic/Rolling Weight Capacity - 4000 lb Static/Stationary Weight Capacity - 5 Year Warranty - TAA Compliant

Ideal for AI, high density server and networking applications
2nd Gen model with higher load capacity and better airflow
Complete environmental data for sustainability initiatives
Ample space, organization, security and convenience features
Extensive list of compatible products and accessories

General Information

Manufacturer	Schneider Electric SA
Manufacturer Part Number	AR3187B2
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Line	NetShelter SX
Product Name	NetShelter SX Server Rack Gen 2, 48U, 2258H x 800W x 1070D mm,w/ Side,Black
Marketing Information	Introducing the redesigned APC NetShelter SX rack enclosure - trusted, versatile, and built for demanding IT environments. With larger load capacities and more space for equipment, it enables higher-density computing. Choose from standard, wide, extra wide, and large-depth options. The modern look is perfect for colocation and customer-facing businesses. Simplify workflows with easy access to cabling and equipment, and optimize airflow and cable management with our wide range of APC accessories. The 270° (180° bayed) opening doors keep aisles clear, while 80% door perforation improves airflow for high-powered servers. Built with all-steel construction, it lasts for years and can be used for various applications. It ships in sturdy, recyclable packaging.
Packaged Quantity	1
Product Type	Rack Cabinet

Technical Information

Rack Type	Enclosed Cabinet
Application/Usage	Server
Application/Usage	Equipment
Application/Usage	IT Equipment
Features	Leveling Feet
Features	Cable Management
Features	Perforated Door
Features	Casters
Mounting Preference	No Preference

Physical Characteristics

Color Family	Black
Product Color	Black
Product Material	Steel
Dynamic/Rolling Weight Capacity	2249.99 lb g
Static/Stationary Weight Capacity	4000 lb g
Height	88.9" mm
Width	31.5" mm
Depth	42.1" mm
Rack Height	48U
Rack Width	19" mm
Weight (Approximate)	398.46 lb g

Miscellaneous

Package Contents	Baying hardware Key(s) Keyed-alike doors and side panels Leveling feet Mounting Hardware Pre-installed casters Side Panels
Country of Origin	China
TAA Compliant	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No

Warranty

Limited Warranty

5 Year

Low in stock

APC by Schneider Electric AR3300SP NetShelter SX AR3300SP Shock Packaging

$6,150.20

In stock

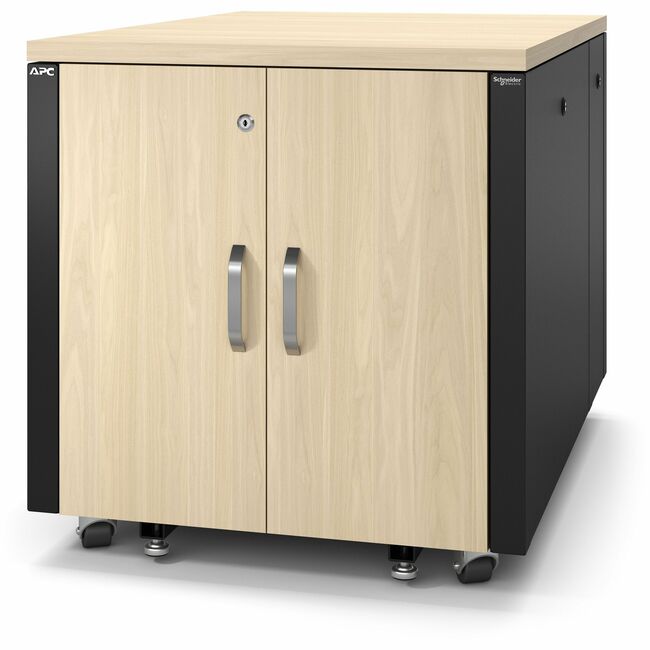

APC by Schneider Electric AR4012A APC NetShelter Soundproof, 12U, Server Rack Enclosure, Maple

$5,713.20

APC NetShelter Soundproof, 12U, Server Rack Enclosure, Maple - For Server - 12U Rack Height x 19" Rack Width - Maple - 3306.93 lb Static/Stationary Weight Capacity - 2 Year Warranty

All-in-one server rack can replace an IT closet
Reduces loud server fans to low background noise levels
Simple to deploy and set up
Ideal for bank branches, retail spaces, healthcare offices & classrooms

General Information

Manufacturer	Schneider Electric SA
Manufacturer Part Number	AR4012A
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Line	NetShelter
Product Name	NetShelter Soundproof, 12U, Server Rack Enclosure, Maple
Marketing Information	APC NetShelter Soundproof Racks deploy quickly, quietly, and securely into offices and retail spaces without drawing attention or disrupting business. This sound dampening rack achieves 18.5db(A) of noise reduction. The aesthetically pleasing design blends seamlessly into any office environment. Sturdy and durable, this IT rack can support heavy equipment, even in transit. Integrated cable managers and brush strips organize cords and keep airflow clear and efficient. It comes with a power block with (4) 5-15 outlets. Thermostat controlled cabinet fans will efficiently reject 1.2kW of heat. Locking doors help secure IT equipment and prevent unwanted access. More from the Manufacturer
Packaged Quantity	1
Product Type	Rack Cabinet

Technical Information

Application/Usage	Server
Features	Casters
Mounting Location	Vertical
Mounting Preference	No Preference

Power Description

Receptacle Detail

4 x IEC 60320 C13

Physical Characteristics

Color Family	Beige
Product Color	Maple
Static/Stationary Weight Capacity	3306.93 lb g
Height	30.9" mm
Width	29.5" mm
Depth	44.5" mm
Rack Height	12U
Rack Width	19" mm
Weight (Approximate)	251.33 lb g

Miscellaneous

Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No

Warranty

Limited Warranty

2 Year

Low in stock

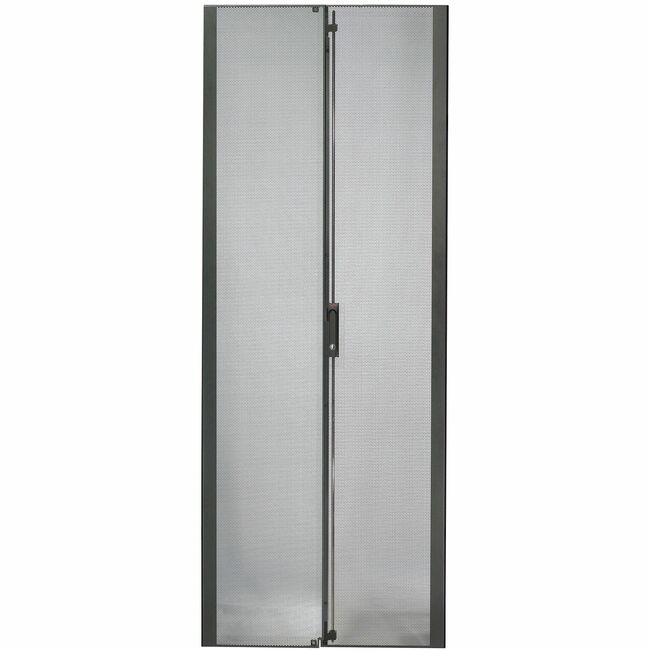

APC by Schneider Electric AR7100 APC NetShelter SX 42U 600mm Wide Perforated Split Doors Black

$703.80

APC NetShelter SX 42U 600mm Wide Perforated Split Doors Black - Black - 42U Rack Height - 75.4" Height x 23.6" Width x 1" Depth

Lockable Doors-All NetShelter Enclosures include key lockable front doors to prevent unwanted access.
Protective grounding provisions-Safety protection against electric shock and reduction of EMI emissions. NetShelter Enclosures incorporate a series of ground studs within each enclosure, providing adequate means for grounding all loose sheet metal panels and/or internally rack-mounted equipment.
Door ventilation exceeds 830 in2 5355 cm2-Adequate ventilation is required for proper operation of today's servers. NetShelter Enclosures include fully perforated front and rear doors to provide ample ventilation for servers and networking equipment. The perforation pattern provides 844 square inches of open area on the front door, exceeding requirements set forth by major server manufacturers. Although this ventilation pattern provides adequate cooling for most configurations, air-moving accessories such as the Schneider Electric Air Distribution Unit and Air Removal Unit are also available to support higher heat density applications.
Promotes Proper Airflow-Helps to maintain proper rack temperatures within the enclosure by promoting top to bottom airflow movement.

General Information

Manufacturer	Schneider Electric SA
Manufacturer Part Number	AR7100
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Line	NetShelter
Product Name	NetShelter SX 42U Perforated Split Door
Product Type	Door Panel

Technical Information

Device Supported

Rack

Physical Characteristics

Color Family	Black
Product Color	Black
Compatible Rack Height	42U
Height	75.4" mm
Width	23.6" mm
Depth	1" mm
Weight (Approximate)	21.05 lb g

Miscellaneous

Compatibility	NetShelter SX
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No

Warranty

Limited Warranty

2 Year

Low in stock

APC by Schneider Electric AR7301 APC NetShelter SX 42U 1070mm Deep Split Side Panels Black Qty 2

$635.40

Low in stock

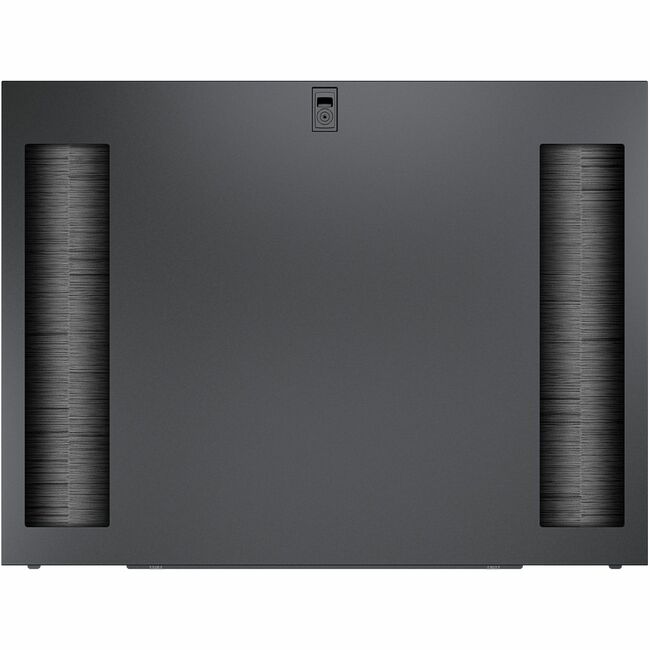

APC by Schneider Electric AR7313 APC NetShelter SX 42U 1200mm Split Feed Through Side Panels Black Qty 2

$1,449.00

Out of stock

APC by Schneider Electric AR7315 APC NetShelter SX 45U 1070mm Split Feed Through Side Panels Black Qty 2

$1,066.50

Low in stock

APC by Schneider Electric AR7511 APC NetShelter Cable Management, Vertical Cable Manager, for NetShelter SX 42U, Black, 60 x 1930 x 10 mm

$229.08

Low in stock

Shop Our Collection

APC BY Schneider Electric AP8716SX340 APC Power Cord Kit (6 EA), Locking, C19 TO C20, 1.8M, Red

APC BY Schneider Electric AP8750 APC NetShelter Power Cord, Locking, IEC C19 to NEMA 5-15P, 3.0m

APC BY Schneider Electric AP8751 APC NetShelter Power Cord, Locking, IEC C19 to NEMA 5-20P, 3.0m

APC BY Schneider Electric AP8753 APC NetShelter Power Cord, Locking, IEC C19 to NEMA L6-20P, 3.0m

Rack Type	Open Frame
Application/Usage	Networking
Rack Post Quantity	4
Mounting Location	Rear
Mounting Preference	No Preference

Package Contents	NetShelter 4 Post Open Frame Rack 44U Square Holes Installation Guide
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No

Package Contents	42U NetShelter SX Deep Split Side Panel Installation Guide Key(s) Slam Latches
Compatibility	APC NetShelter SX Enclosure
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No

Package Contents	Split Feed Through Side Panel Brush Strips Installation Guide Keys Slam Latches
Compatibility	NetShelter SX 42U 1200 Enclosure
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Country of Origin	Philippines
Single-use Plastic (SUP) Free Shipping Packaging	No

Package Contents	Narrow Vertical Cable Organizer Installation Guide Mounting Hardware
Compatibility	NetShelter SX
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No
