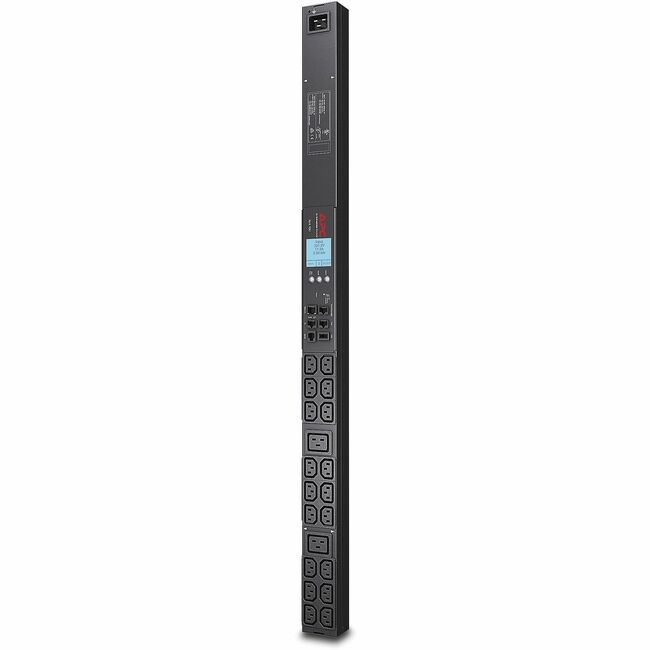

APC by Schneider Electric AP8858 APC NetShelter Metered Rack PDU, 0U, 1 phase, 3.3kW 208V 16A or 3.7kW 230V 16A, 18 C13 and 2 C19 outlets, C20 inlet

100% Genuine

Manufacturer Warranty

Fast US Shipping

APC by Schneider Electric AP8858 APC NetShelter Metered Rack PDU, 0U, 1 phase, 3.3kW 208V 16A or 3.7kW 230V 16A, 18 C13 and 2 C19 outlets, C20 inlet

Part Number:

AP8858

1 pieces ready to ship - additional units ship in 7-10 business days.
Estimated shipping in 7–10 business days.
Estimated shipping in 7–10 business days.
Ready to ship.

1 pieces ready to ship - additional units ship in 7-10 business days.

$1,078.25

USD + Applicable Tax
Visa
Mastercard
American Express
PayPal
Shop Pay

APC NetShelter Metered Rack PDU, 0U, 1 phase, 3.3kW 208V 16A or 3.7kW 230V 16A, 18 C13 and 2 C19 outlets, C20 inlet - Metered - IEC 60320 C20 - 200 V, 208 V, 230 V - 0U - Vertical - Rack-mountable

  • Ideal for colocation, large or remote data center operators
  • Plan capacity & balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
  • Enables improved energy efficiency and scope 1 and 3 emissions tracking
  • Easily monitor and manage through EcoStruxure IT and other platforms
  • 1-Year Secure Network Management Card subscription included
  • Stay on top of potential circuit overloads with user-defined alarms

General Information

Manufacturer Schneider Electric SA
Manufacturer Part Number AP8858
Manufacturer Website Address http://www.schneider-electric.com
Brand Name APC
Product Line NetShelter
Product Series Metered
Product Model AP8858
Product Name Metered Rack AP8858 20-Outlets PDU
Marketing Information

APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) & energy (kWh). This PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to meter customer power usage, optimize energy use as well as plan for capacity . This zeroU PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 220-240 volts via IEC C20 inlet (no cord provided) while power comes out at 100-230 volts through (18) C13 and (2) C19 locking outlets. It integrates with EcoStruxure IT, and daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates
Product Type PDU

Technical Information

PDU Type Metered
Plug/Connector Type IEC 60320 C20

Power Description

Input Voltage 200 V
Input Voltage 208 V
Input Voltage 230 V
Output Voltage 100 V AC
Output Voltage 200 V AC
Output Voltage 208 V AC
Output Voltage 230 V AC

Management

Management

Protocols:

  • SNMP
  • Telnet

Physical Characteristics

Color Family Black
Product Color Black
Mounting Orientation Vertical
Mount Type Rack-mountable
Placement Side
Rack Height 0U
Height 35.5" mm
Width 2.2" mm
Depth 1.7" mm
Weight (Approximate) 6.46 lb g

Miscellaneous

Package Contents
  • Metered Rack AP8858 20-Outlets PDU
  • Installation guide
  • Rack mounting brackets
  • Safety guide
  • Serial configuration cable
    		•
    Country of Origin India
    Environmentally Friendly Yes
    Environmental Compliance Restriction of Hazardous Substances (RoHS)
    Single-use Plastic (SUP) Free Shipping Packaging No

    Warranty

    Limited Warranty 2 Year
