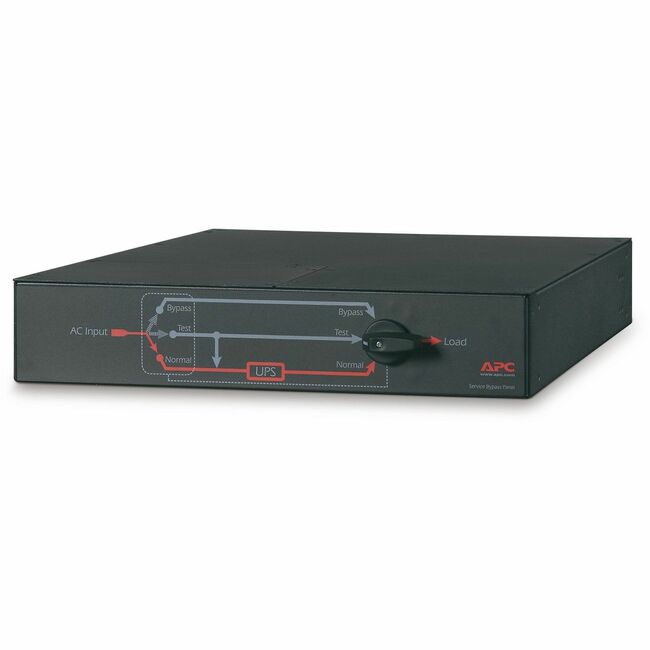

APC by Schneider Electric SBP5000RMT2U APC Service Bypass Panel - 200/208/240V; 30A; BBM; L6-30P input; (2) L6-30R (2) L6-20R output

Name: APC by Schneider Electric SBP5000RMT2U APC Service Bypass Panel - 200/208/240V; 30A; BBM; L6-30P input; (2) L6-30R (2) L6-20R output
Brand: APC by Schneider Electric
SKU: SBP5000RMT2U
Price: 1516.50 USD
Availability: InStock

Part Number:

SBP5000RMT2U

1 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

1 pieces ready to ship - additional units ship in 7-10 business days.

$1,516.50

USD + Applicable Tax

APC Service Bypass Panel - 200/208/240V; 30A; BBM; L6-30P input; (2) L6-30R (2) L6-20R output - 2 x NEMA L6-20R, 2 x NEMA L6-30R - 5000 W - 200 V AC, 208 V AC - 24 A, 24 A, 24 A

Supports up to 30A, ideal for high-demand environments
Equipped with 2 L6-30R and 2 L6-20R output connectors for flexible power distribution
Features a bypass switch for safe maintenance
Designed for rack installation, saving space in data centers

General Information

Manufacturer	Schneider Electric SA
Manufacturer Part Number	SBP5000RMT2U
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC
Product Name	19" Rack Mountable 24A Maintenance Bypass Panel
Marketing Information	The APC SBP5000RMT2U Service Bypass Panel is a reliable solution designed to ensure uninterrupted power to your critical equipment during UPS maintenance or upgrades. Engineered for compatibility with APC Smart-UPS and Smart-UPS On-Line, this panel requires L6-30P input and offers (2) L6-30R, (2) L6-20R outlets. The panel is 2U in height with 208V input and user selectable 200V/208V/240V output voltage. This panel comes with a 2-year warranty.
Packaged Quantity	1 Each
Product Type	Bypass Panel

Technical Information

Plug/Connector Type	NEMA L6-30P
Receptacles	2 x NEMA L6-20R
Receptacles	2 x NEMA L6-30R
Protection Type	Overload

Power Description

Load Capacity (VA)	5000 W
Input Voltage	200 V AC
Input Voltage	208 V AC
Output Voltage	200 V AC
Output Voltage	208 V AC
Current	24 A

Physical Characteristics

Color Family	Black
Product Color	Black
Form Factor	Rack-mountable
Rack Height	2U
Height	3.5" mm
Width	17" mm
Depth	26" mm
Weight (Approximate)	30.07 lb g

Miscellaneous

Package Contents	19" Rack Mountable 24A Maintenance Bypass Panel Installation guide Rack mounting brackets User manual
Country of Origin	China
Environmentally Friendly	Yes
Environmental Certification	RoHS
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No

Warranty

Limited Warranty

2 Year
