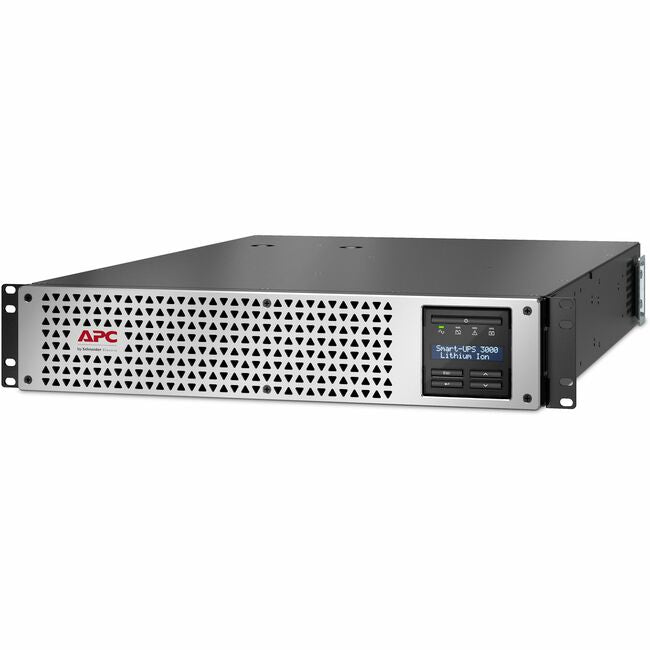

APC Smart-UPS, Line Interactive, 3kVA, Lithium-ion, Rackmount 2U, 120V, 1x NEMA L5-30R+6x NEMA 5-20R outlets, SmartConnect Port+Network Card, AVR, LCD - 2U Rack-mountable - AVR - 2 Hour Recharge - 5.30 Minute Stand-by - 120 V AC, 110 V AC Input - 120 V AC, 110 V AC Output - Single Phase - Sine Wave - USB - LCD/LED Display - 1 x NEMA L5-30R, 6 x NEMA 5-20R Receptacle(s) - SmartConnect
- 2880VA/2700W line interactive pure sine wave 2U rackmount UPS
- Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
- Lithium-ion battery minimizes the need to replace battery during the life time of UPS
- Cloud-based remote power monitoring via SmartConnect Ethernet Port
- 1-Year Secure Network Management Card subscription included
- Preinstalled Network Management Card for network-based UPS monitoring & management
- Graceful shutdown of physical servers, virtual machines and HCI Clusters
- Peace of mind with a 5-year warranty on UPS and battery
- 1x NEMA L5-30R in addition to 6x NEMA 5-20R
General Information
| Manufacturer |
Schneider Electric SA |
| Manufacturer Part Number |
SMTL3KRM2UCLNC |
| Manufacturer Website Address |
http://www.schneider-electric.com |
| Brand Name |
APC |
| Product Line |
Smart-UPS |
| Product Name |
Smart-UPS 3KVA Rack-mountable UPS |
| Marketing Information |
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2880VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA L5-30 input, 6 NEMA 5-20R and 1 NEMA L5-30R outlets. It has a preinstalled Network Management Card for UPS network-based monitoring and management. It has a preinstalled Network Management Card for UPS network-based monitoring and management. It comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery. More from the Manufacturer
|
| Packaged Quantity |
1 |
| Product Type |
Line-interactive UPS |
Technical Information
| AVR |
Yes |
| Plug/Connector Type |
NEMA L5-30P |
| Receptacle Type |
NEMA L5-30P |
| Receptacle Detail |
1 x NEMA L5-30R |
| Receptacle Detail |
6 x NEMA 5-20R |
| Cord Length |
8 ft mm |
| Transfer Time |
10 ms Second |
| Phase |
Single Phase |
| Application/Usage |
Edge Computing |
| Application/Usage |
Office |
| Application/Usage |
Network Equipment |
| Application/Usage |
IT |
| Application/Usage |
Business |
| Application/Usage |
Critical System |
| Application/Usage |
Server |
| Application/Usage |
Virtual Machine |
| Application/Usage |
Hyperconverged Infrastructure (HCI) |
| Application/Usage |
POS |
| Application/Usage |
Router |
| Application/Usage |
Switch |
| Application/Usage |
Hub |
Power Description
| Load Capacity (VA) |
2880 VA W |
| Load Capacity (Watt) |
2700 W |
| Input Voltage |
120 V AC |
| Input Voltage |
110 V AC |
| Output Voltage |
120 V AC |
| Output Voltage |
110 V AC |
| Input Frequency |
60 Hz |
| Output Frequency |
60 Hz |
| Waveform Type |
Sine Wave |
| Surge Energy Rating |
459 J |
| Input Power Factor |
0.9 |
Display & Graphics
Management
| Network Management |
SmartConnect |
| Alarm |
On Battery |
| Alarm |
Low Battery |
| Alarm |
Overload |
Controls/Indicators
| Status Indicators |
LED Indicators:
- On Line
- On Battery
- Replace Battery
- Overload
|
Interfaces/Ports
Battery Information
| Number of Batteries |
1 |
| Battery Chemistry |
Lithium Ion (Li-Ion) |
| Battery Energy |
1209.6 kJ |
| Backup/Run Time (Full Load) |
5.30 Minute Second |
| Backup/Run Time (Half Load) |
10.23 Minute Second |
| Typical Battery Recharge Time |
2 Hour Second |
Environmental Conditions
| Maximum Operating Elevation |
10000 ft mm |
| Maximum Storage Elevation |
50000 ft mm |
| Storage Temperature |
5°F (-15°C) - 113°F (45°C) °F |
| Storage Relative Humidity |
95% |
| Maximum Operating Temperature |
104°F (40°C) °F |
| Sound Emission |
55 dB |
| Thermal Dissipation |
101.99 W |
Physical Characteristics
| Product Color |
Black |
| Product Color |
Silver |
| Height |
3.39" mm |
| Width |
17.01" mm |
| Depth |
26.89" mm |
| Rack Height |
2U |
| Form Factor |
Rack-mountable |
| Weight (Approximate) |
75.44 lb g |
Miscellaneous
| Package Contents |
- Smart-UPS 3KVA Rack-mountable UPS
- Rack Mounting Brackets
- Rack Mounting Support Rails
- Ethernet Patch Cable
- Washer
- Screw
- Temperature Sensor
|
| Energy Star |
Yes |
| Country of Origin |
Philippines |
| Environmentally Friendly |
Yes |
| Environmental Compliance |
Restriction of Hazardous Substances (RoHS) |
| Single-use Plastic (SUP) Free Shipping Packaging |
No |
Warranty
