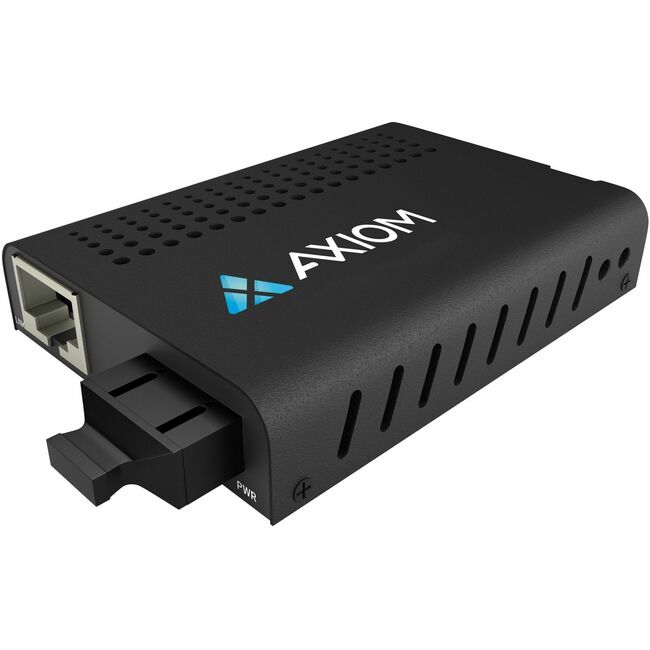

Axiom AXG99293 Transceiver/Media Converter

Name: Axiom AXG99293 Transceiver/Media Converter
Brand: Axiom
SKU: AXG99293
Price: 1257.30 USD
Availability: InStock

Part Number:

AXG99293

1 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

1 pieces ready to ship - additional units ship in 7-10 business days.

$1,257.30

USD + Applicable Tax

Axiom Transceiver/Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - 1310 nm Fiber - Gigabit Ethernet - 10/100/1000Base-TX, 1000Base-ZX - 70 km - DC - Compact, Standalone - TAA Compliant

Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
With 10/100/1000Base-TX technology get up to 1000Mbps data transfer rate over twisted pair cable
Compact Transceiver/Media Converter can be conveniently placed anywhere to ensure maximum space-efficiency

General Information

Manufacturer	Axiom Memory Solutions
Manufacturer Part Number	AXG99293
Manufacturer Website Address	http://www.axiommemory.com
Brand Name	Axiom
Product Line	Mini
Product Name	Transceiver/Media Converter
Marketing Information	The Axiom Mini 10/100/1000Base-TX to 100/1000Base-FX Media Converter Series is a Gigabit Ethernet stand-alone Mini unmanaged media converter that provides cost effective, entry-level media conversion between Copper RJ45 10/100/1000Base-TX ports and 100/1000Base-FX fiber optic ports. Available with an open SFP port or its fixed connector configuration, deployments can be just plug-and-play or are fully customizable with the transceiver of your choice. With its small size, it is ideal for locations where space is limited. Choose from Multimode or Single-mode fiber connections to meet the distance requirements of your network. Unit and Port LEDs allow for quick status information Auto-Negotiation Full-Duplex or Half-Duplex Operation Modes Auto-MDI/MDIX Automatic Link Restoration Connect to legacy network equipment Eliminate Collision Domains 10/100/1000Base-TX UTP to 1000Base-FX Fiber media convertion Supports IEEE802.3U IEEE802.3z 1000Base-TX/FX protocols , IEEE802.3ab standards Available with Open SFP Port or optional built in LC/SC/ST Connections DIP switch to set different configurations Compact package size Supports IEEE802.3x flow control; 100Base-FX interface; auto MDI-MDIX function; LFP function
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	1
Number of SC Ports	1
SC Port Type	Duplex

Media & Performance

Media Type Supported	Twisted Pair
Media Type Supported	Optical Fiber
Fiber Mode Supported	Single-mode
Fiber Optic Cable Wavelength	1310 nm mm
Maximum Distance Supported	70 km mm
Fiber Optic Cable Core/Cladding Specification	9/125 µm

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-TX
Network Technology	1000Base-ZX

Power Description

Power Source	DC
Power Consumption	2 W
Plug/Connector Type	DC Jack

Physical Characteristics

Form Factor	Compact
Form Factor	Standalone
Height	0.9" mm
Width	2.9" mm
Depth	4" mm

Miscellaneous

TAA Compliant

Yes

Warranty

Limited Warranty

1 Year
