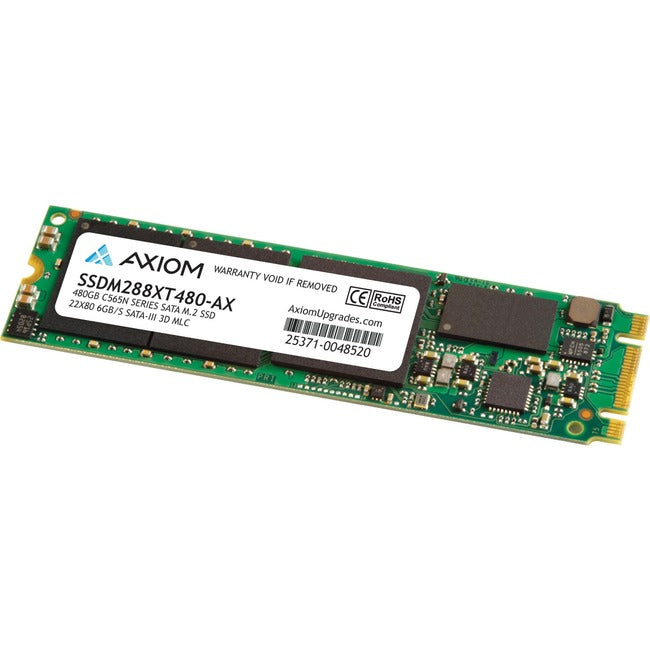

Axiom SSDM288XT480-AX 480GB C565n Series SATA M.2 22x80 SSD 6Gb/s SATA-III

100% Genuine

Manufacturer Warranty

Fast US Shipping

Axiom SSDM288XT480-AX 480GB C565n Series SATA M.2 22x80 SSD 6Gb/s SATA-III

Part Number:

SSDM288XT480-AX

18 pieces ready to ship - additional units ship in 7-10 business days.
Estimated shipping in 7–10 business days.
Estimated shipping in 7–10 business days.
Ready to ship.

18 pieces ready to ship - additional units ship in 7-10 business days.

$372.60

USD + Applicable Tax
Visa
Mastercard
American Express
PayPal
Shop Pay

Axiom 480GB C565n Series SATA M.2 22x80 SSD 6Gb/s SATA-III - 565 MB/s Maximum Read Transfer Rate - 3 Year Warranty

  • Silicon Motion SM2258 controller
  • SATA 3.1 Compliant SATA 6Gb/s - backwards compatible with SATA 3Gb/s and 1.5Gb/s
  • ATA/ATAPI-8-ACS3 command set compliant
  • Industry-standard 512 byte sector support
  • SLC caching accelerates burst performance
  • DTT mode enhances sustained write performance
  • Global wear leveling evens program/erase counts to extend drive lifespan
  • StaticDataRefresh technology ensures data integrity
  • Intelligent garbage collection routines for advanced free space management
  • TRIM command support (OS dependent)

General Information

Manufacturer Axiom Memory Solutions
Manufacturer Part Number SSDM288XT480-AX
Manufacturer Website Address http://www.axiommemory.com
Brand Name Axiom
Product Series C565n
Product Name C565n Series M.2 SSD
Marketing Information

The Axiom C565n Series M.2 SSD combines performance and reliability with low power operation to make the ideal mobile drive. The high read and write performance will satisfy the most demanding power user. While the low power mode extends battery life for the road warrior.

Providing an industry-leading bandwidth of more than 565MB/sec transfers, the Axiom C565n Series M.2 SSD can approach the limits of the SATA 6Gb/s interface on large transfers. Performance reaches enterprise class standards with up to 86,000 IOPS.

A robust LDPC algorithm and StaticDataRefresh technology protect the data. Efficient bad block management and reduced write amplification further bolster endurance. Drive health is monitored using an SSD-specific set of S.M.A.R.T. attributes. The combination of these techniques provides data protection unrivaled in the storage industry.
Product Type Solid State Drive

Technical Information

Storage Capacity 480 GB Byte

Drive Performance

Maximum Read Transfer Rate 565 MB/s Bps
Maximum Write Transfer Rate 525 MB/s Bps

Network & Communication

Wireless LAN No

Interfaces/Ports

Drive Interface SATA
Drive Interface Standard SATA/600

Physical Characteristics

Drive Type Internal
Form Factor M.2 2280
Width 0.9" mm
Depth 3.1" mm
Weight (Approximate) 1.41 oz g

Miscellaneous

Device Supported Motherboard
Device Supported Desktop PC
Compatibility
  • ASUS - VivoMini UN65H
  • Acer - Veriton N Series N4640G Mini
  • Dell - Inspiron 13 5000 (5368)
  • Dell - Inspiron 13 5000 (5370)
  • Dell - Inspiron 13 5000 (5378)
  • Dell - Inspiron 13 7000 (7368)
  • Dell - Inspiron 13 7000 (7378)
  • Dell - Latitude 12 (5280)
  • Dell - Latitude 12 (5289) 2-in-1
  • Dell - Latitude 12 (7280)
  • Dell - Latitude 12 7000 (E7270)
  • Dell - Latitude 13 (7350)
  • Dell - Latitude 13 (7370)
  • Dell - Latitude 13 (7380)
  • Dell - Latitude 14 (5480)
  • Dell - Latitude 14 (5490)
  • Dell - Latitude 14 (7490)
  • Dell - Latitude 14 5000 (E5470) with 1 SODIMM
  • Dell - Latitude 14 5000 (E5470) with 2 SODIMMs
  • Dell - Latitude 14 7000 (E7470)
  • Dell - Latitude 14 7000 Series (7480)
  • Dell - Latitude 15 (5580)
  • Dell - Latitude 15 (5590)
  • Dell - Latitude 15 (5591)
  • Dell - Latitude 15 5000 (E5570)
  • Dell - Latitude 3490
  • Dell - Latitude 3590
  • Dell - Latitude 5290
  • Dell - Latitude 7389 (2-in-1)
  • Dell - Latitude 7390
  • Dell - OptiPlex 7040 MT
  • Dell - OptiPlex 7040 Micro
  • Dell - OptiPlex 7040 SFF
  • Dell - OptiPlex 7050 SFF / Tower
  • Dell - OptiPlex 7060 Micro
  • Dell - OptiPlex 7060 Small Form Factor (SFF) / Tower
  • Dell - OptiPlex 7440 AIO
  • Dell - OptiPlex 7450 All-in-One Desktop
  • Dell - Precision 15 3000 Series (3510)
  • Dell - Precision 15 7000 Series (7510)
  • Dell - Precision 3520
  • Dell - Precision 7710
  • Dell - XPS 13 (9370)
  • HP-Compaq - 250 G5 (Core i3-5005U, DDR3)
  • HP-Compaq - 250 G5 (Pentium N3710/Celeron N3010, DDR3)
  • HP-Compaq - 250 G5 (i3-6100U/i5-6200U/i7-6500U, DDR4)
https://www.axiomupgrades.com/productdetail/SSDM288XT120-AX/
TAA Compliant Yes
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty 3 Year
