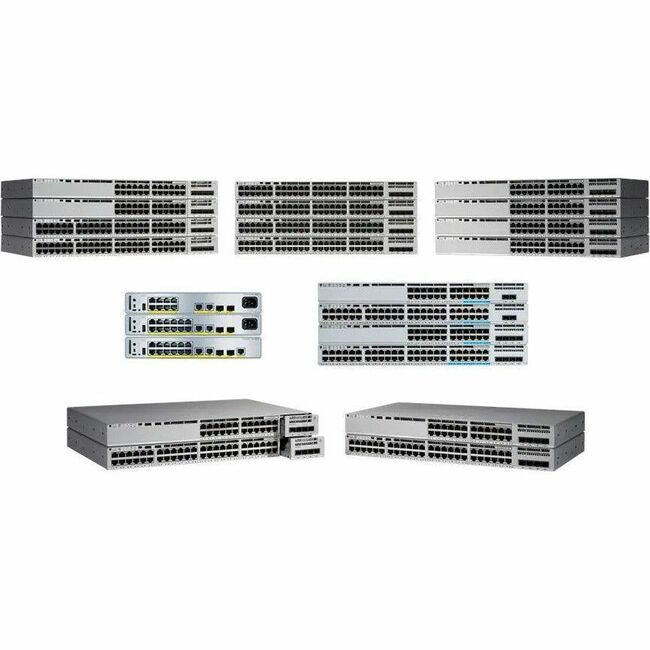

Cisco C9200CX-8UXG-2X-E Catalyst C9200CX-8UXG-2X Ethernet Switch

100% Genuine

Manufacturer Warranty

Fast US Shipping

Cisco C9200CX-8UXG-2X-E Catalyst C9200CX-8UXG-2X Ethernet Switch

Part Number:

C9200CX-8UXG-2X-E

13 pieces ready to ship - additional units ship in 7-10 business days.
Estimated shipping in 7–10 business days.
Estimated shipping in 7–10 business days.
Ready to ship.

13 pieces ready to ship - additional units ship in 7-10 business days.

$4,183.87

USD + Applicable Tax
Visa
Mastercard
American Express
PayPal
Shop Pay

Cisco Catalyst C9200CX-8UXG-2X Ethernet Switch - 8 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10GBase-X, 10/100/1000Base-T - 3 Layer Supported - Modular - 315 W Power Consumption - 240 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Rack-mountable, DIN Rail Mountable, Wall Mountable, Compact, Under Table - Lifetime Limited Warranty

  • Ethernet Switch supports network continuity by maintaining data transmission during operation
  • Allows connection between separate networks to support infrastructure flexibility and structured traffic distribution
  • Features 8 networking ports to establish a local wired network or extend connectivity within an existing layout
  • Built?in power supply supports internal components by providing required operating voltage
  • Layer 3 support allows routing functionality that supports network scalability through structured traffic handling
  • Rack?mountable design supports installation within standard equipment racks to accommodate organized hardware placement
  • Management capability enables control over network setup and configuration according to operational requirements
  • Gigabit Ethernet ports support higher network data rates than standard Ethernet connections
  • Twisted pair cable support enables cost?efficient network connections for data transmission across distances

General Information

Manufacturer Cisco Systems, Inc
Manufacturer Part Number C9200CX-8UXG-2X-E
Manufacturer Website Address http://www.cisco.com
Brand Name Cisco
Product Line Catalyst
Product Series 9200
Product Model C9200CX-8UXG-2X
Product Name Catalyst C9200CX-8UXG-2X Ethernet Switch
Marketing Information

Introduction

Extend intent-based networking everywhere

Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise - it is secure, always on, and IT simplified.

As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey.

Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations.

With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry's unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access. Catalyst 9200 Series switches also provide operational choice of Cisco DNA Center, or Meraki cloud monitoring.

Product overview

Product highlights

  • Full Power over Ethernet Plus (PoE+) capability for up to 48 ports for C9200 and Power over Ethernet Plus (PoE+) capability for up to 12 ports for C9200CX. Available in fan less variants for C9200CX.
  • Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks for C9200. C9200CX are powered by internal fixed power supply or optional power adapters, when not powered by upstream 802.3bt type4 90W PSE.
  • Flexible downlink options with data, PoE+ or mGig
  • Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
  • UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
  • Enhanced security with AES-128 MACsec encryption on C9200 and AES-256 MACsec encryption for C9200CX variants, policy-based segmentation, and trustworthy solutions for the whole C9200 family
  • Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
  • Advanced network monitoring using Full Flexible NetFlow
Product Type Ethernet Switch

Technical Information

Features Fanless

Interfaces/Ports

Total Number of Network Ports 8
Network (RJ-45) Yes
Uplink Port Yes
Modular Yes
Port/Expansion Slot Details 8 x 10 Gigabit Ethernet UPoE
Port/Expansion Slot Details 2 x 10 Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported Twisted Pair
Media Type Supported Optical Fiber
Ethernet Technology Gigabit Ethernet
Ethernet Technology 10 Gigabit Ethernet
Network Technology 10GBase-X
Network Technology 10/100/1000Base-T

I/O Expansions

Total Number of Expansion Slots 2
Expansion Slot Type SFP+
Number of SFP+ Slots 2

Network & Communication

Layer Supported 3
Networking Standards IEEE 802.3at
Networking Standards IEEE 802.1s
Networking Standards IEEE 802.1w
Networking Standards IEEE 802.3
Networking Standards IEEE 802.1x
Networking Standards IEEE 802.3ad
Networking Standards IEEE 802.3af
Networking Standards IEEE 802.1D
Networking Standards IEEE 802.1p
Networking Standards IEEE 802.3u
Networking Standards IEEE 802.3ab
Networking Standards IEEE 802.3z

Management & Protocols

Manageable Yes

Power Description

PoE (RJ-45) Port Yes
PoE Budget 240 W
Input Voltage 120 V AC
Input Voltage 230 V AC
Power Source Power Supply
Power Consumption 315 W

Physical Characteristics

Form Factor Rack-mountable
Form Factor DIN Rail Mountable
Form Factor Wall Mountable
Form Factor Compact
Form Factor Under Table
Height 1.7" mm
Width 10.6" mm
Depth 9.6" mm
Weight (Approximate) 7 lb g

Miscellaneous

Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty Lifetime
