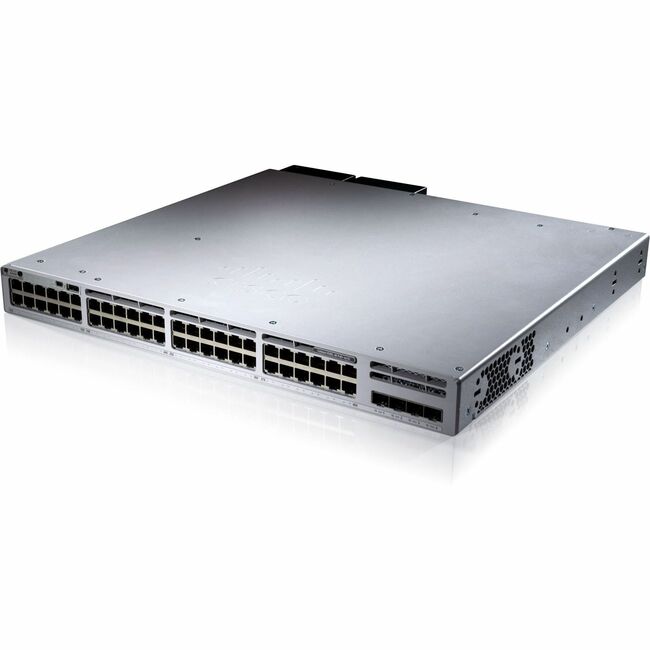

Cisco C9300-48UXM-M Meraki Catalyst C9300-48UXM-M Ethernet Switch

Name: Cisco C9300-48UXM-M Meraki Catalyst C9300-48UXM-M Ethernet Switch
Brand: Cisco
SKU: C9300-48UXM-M
Price: 18305.87 USD
Availability: InStock

Part Number:

C9300-48UXM-M

15 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

15 pieces ready to ship - additional units ship in 7-10 business days.

$18,305.87

USD + Applicable Tax

Cisco Meraki Catalyst C9300-48UXM-M Ethernet Switch - 48 Ports - Manageable - 2.5 Gigabit Ethernet, 10 Gigabit Ethernet - 2.5GBase-T, 10GBase-T - 3 Layer Supported - Modular - 785.50 W Power Consumption - 490 W PoE Budget - Twisted Pair - PoE Ports - 1U - Rack-mountable

Ethernet Switch supports increased network bandwidth availability through data switching
Cascade connections to other network devices through the uplink port to extend a local area network topology
Stack port supports interconnection with other ethernet switch units within a stack
Features 48 networking ports to support the connection requirements of larger workgroups using wired infrastructure
Built?in power supply supports internal components by providing required operating voltage
Layer 3 switching support enables structured traffic management without altering established network architecture
Rack?mountable design supports installation within standard equipment racks to accommodate organized hardware placement
Managed capability enables configuration and monitoring functions that support structured network operation
Lets you connect to the 2.5 gigabit ethernet Ethernet technology to support network connectivity and improved operational productivity
Twisted pair cable support enables cost?efficient network connections for data transmission across distances

General Information

Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	C9300-48UXM-M
Manufacturer Website Address	http://www.cisco.com
Brand Name	Cisco Meraki
Product Line	Catalyst
Product Series	9300-M
Product Model	C9300-48UXM-M
Product Name	Catalyst C9300-48UXM-M Ethernet Switch
Marketing Information	The Catalyst 9300-M addresses the most demanding enterprise applications by combining the simplicity of the Meraki dashboard with powerful switching hardware. To satisfy high-bandwidth applications and the deployment of high-speed 802.11ax/wifi-6 access points, the Catalyst 9300-M provides multigigabit ports, 480G stacking, and modular 10/40G uplinks. The Catalyst 9300-M delivers resiliency with fast stack convergence and StackPower. The Catalyst 9300-M provides Adaptive Policy using an over-the-wire tag which segments traffic into security groups to deliver scalable security. The Catalyst 9300-M is integrated under the Meraki dashboard to provide a simply powerful solution to the most demanding wired access applications. Adaptive Policy provides simple & scalable security policies to segment traffic using Security Groups. Security Groups are created in the dashboard using natural language such as "IOT device" & "Guest." The security policy intent (e.g., Permit or Deny) is then simply provisioned between Security Groups which results in the segmentation of each group's traffic. By making security policy management intuitive and scalable relative to legacy IP-address based Access Control Lists, Adaptive Policy empowers operators to confidently secure their network traffic independent of future network changes. By pooling & distributing power across C9300-Ms using a series of StackPower cables, StackPower provides simple and resilient power distribution across the stack.
Product Type	Ethernet Switch

Interfaces/Ports

Total Number of Network Ports	48
Network (RJ-45)	Yes
Uplink Port	Yes
Modular	Yes
Stack Port	Yes
Port/Expansion Slot Details	36 x 2.5 Gigabit Ethernet Network
Port/Expansion Slot Details	12 x 10 Gigabit Ethernet UPoE
Port/Expansion Slot Details	1 x Uplink
Port/Expansion Slot Details	2 x Stack

Media & Performance

Media Type Supported	Twisted Pair
Ethernet Technology	2.5 Gigabit Ethernet
Ethernet Technology	10 Gigabit Ethernet
Network Technology	2.5GBase-T
Network Technology	10GBase-T

I/O Expansions

Total Number of Expansion Slots	1
Expansion Slot Type	Uplink Module

Network & Communication

Layer Supported	3
Networking Standards	IEEE 802.1p
Networking Standards	IEEE 802.1Q
Networking Standards	IEEE 802.1s
Networking Standards	IEEE 802.1ab
Networking Standards	IEEE 802.1ad
Networking Standards	IEEE 802.1x

Management & Protocols

Manageable

Yes

Power Description

PoE (RJ-45) Port	Yes
PoE Budget	490 W
Power Source	Power Supply
Redundant Power Supply Supported	Yes
Number of Power Supplies Supported	2
Number of Power Supplies Installed	1
Power Consumption	785.50 W

Physical Characteristics

Compatible Rack Unit	1U
Form Factor	Rack-mountable
Height	1.7" mm
Width	17.5" mm
Depth	22.2" mm
Weight (Approximate)	20.05 lb g
