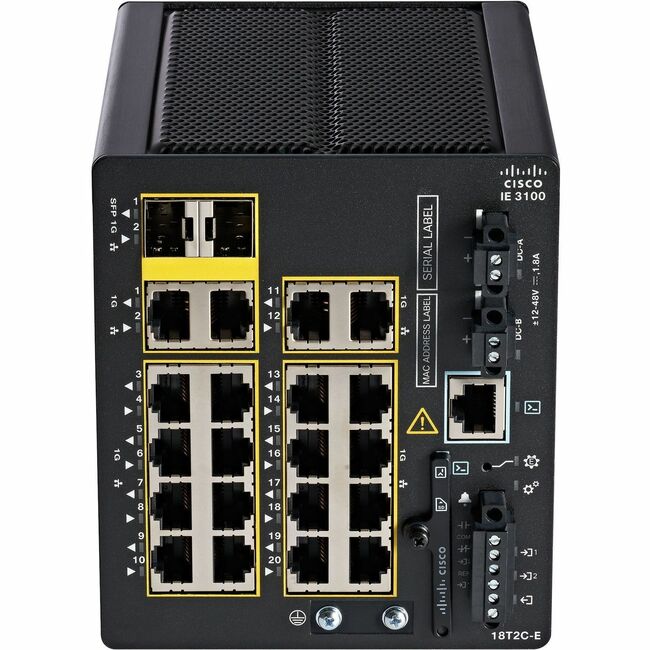

Cisco IE-3100-18T2C-E Catalyst IE3100 Rugged Layer 3 Switch

100% Genuine

Manufacturer Warranty

Fast US Shipping

Cisco IE-3100-18T2C-E Catalyst IE3100 Rugged Layer 3 Switch

Part Number:

IE-3100-18T2C-E

135 pieces ready to ship - additional units ship in 7-10 business days.
Estimated shipping in 7–10 business days.
Estimated shipping in 7–10 business days.
Ready to ship.

135 pieces ready to ship - additional units ship in 7-10 business days.

$5,686.06

USD + Applicable Tax
Visa
Mastercard
American Express
PayPal
Shop Pay

Cisco Catalyst IE3100 Rugged Layer 3 Switch - 20 Ports - Manageable - Gigabit Ethernet - 1000Base-T - 3 Layer Supported - 36.70 W Power Consumption - 240 W PoE Budget - Twisted Pair - PoE Ports - Black - DIN Rail Mountable, Compact

  • Layer 3 Switch supports network connectivity intended for consistent and efficient data transmission
  • Allows connection between separate networks to support infrastructure flexibility and structured traffic distribution
  • Features 20 networking ports to establish a local wired network or extend connectivity within an existing layout
  • DC power source provides required electrical input for normal device functionality
  • Layer 3 switching support enables structured traffic management without altering established network architecture
  • DIN Rail Mountable form factor supports product placement based on physical design requirements
  • Managed capability enables configuration and monitoring functions that support structured network operation
  • Gigabit Ethernet ports support higher network data rates than standard Ethernet connections
  • Twisted pair cable support enables cost?efficient network connections for data transmission across distances
  • Available in black color to allow visual alignment with surrounding equipment

General Information

Manufacturer Cisco Systems, Inc
Manufacturer Part Number IE-3100-18T2C-E
Manufacturer Website Address http://www.cisco.com
Brand Name Cisco
Product Line Catalyst
Product Series IE3100 Rugged
Product Name Catalyst IE3100 Rugged Layer 3 Switch
Marketing Information

The Cisco Catalyst IE3100 Rugged Series delivers mainstream adoption of Gigabit Ethernet connectivity in a compact, fixed form-factor switch that is purpose-built for a wide variety of extended enterprise and industrial applications in the most space constrained scenarios.

Product overview

Cisco Catalyst IE3100 Rugged Series switches with up to 20 Gigabit Ethernet interfaces deliver high-speed Gigabit Ethernet connectivity in a compact form factor and are designed for a wide range of industrial applications for which hardened products are required. This platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3100 is ideal for space constrained deployments often found in distribution centers, warehouses, and outdoor spaces.

These switches run Cisco IOS® XE, an operating system with built-in security and trust, featuring Secure Boot, image signing, and the Cisco® Trust Anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.

The Cisco Catalyst IE3100 Rugged Series can be managed with a powerful management tool, Cisco DNA Center, and can easily be set up with a completely redesigned user-friendly modern GUI tool called WebUI.

The IE3100 Rugged Series switches offer:

  • Models offering 6, 10, 12, or 20 Gigabit Ethernet ports with up to 4 Gigabit SFP uplink ports or 2 Gigabit Combo uplink ports
  • Robust resiliency enabled by features such as Media Redundancy Protocol (MRP), Resilient Ethernet Protocol (REP), and dual-input DC power supplies
  • Simplified software management with universal images
  • Support for industrial automation protocols EtherNet/IP (CIP), Modbus and PROFINET
  • Support for Layer-2 Network Address Translation
Packaged Quantity 1
Product Type Layer 3 Switch

Technical Information

Features Fanless

Interfaces/Ports

Total Number of Network Ports 20
Network (RJ-45) Yes
Uplink Port Yes
Port/Expansion Slot Details 18 x 10/100/1000 Base-T RJ-45 Network Port
Port/Expansion Slot Details 2 x Gigabit Ethernet Uplink Network Port
Port/Expansion Slot Details 1 x (RS-232) RJ-45 Serial Port
Port/Expansion Slot Details 1 x Micro-USB Type B

Media & Performance

Media Type Supported Twisted Pair
Ethernet Technology Gigabit Ethernet
Network Technology 1000Base-T
Maximum Data Transfer Rate 125 MB/s Bps

Network & Communication

Layer Supported 3
Networking Standards IEEE 802.3af
Networking Standards IEEE 802.3at
Networking Standards IEEE 802.1Q
Networking Standards IEEE 802.1w
Networking Standards IEEE 802.1ab
Networking Standards IEEE 802.1s
Networking Standards IEEE 802.3ad
Networking Standards IEEE 802.1x
Networking Standards IEEE 802.1p
Networking Standards IEEE 802.1D
Networking Standards IEEE 802.3ah
Networking Standards IEEE 802.3u
Networking Standards IEEE 802.3ab
Networking Standards IEEE 802.3z

Management & Protocols

Manageable Yes

Power Description

PoE (RJ-45) Port Yes
PoE Budget 240 W
Input Voltage 12 V
Input Voltage 48 V
Input Voltage 9.6 V
Input Voltage 60 V
Power Source DC
Power Source Power Adapter
Redundant Power Supply Supported Yes
Number of Power Supplies Supported 2
Power Consumption 36.70 W

Physical Characteristics

Product Color Black
Form Factor DIN Rail Mountable
Form Factor Compact
Height 5" mm
Width 4.3" mm
Depth 5.1" mm
Weight (Approximate) 2.80 lb g

Miscellaneous

Energy Star No
