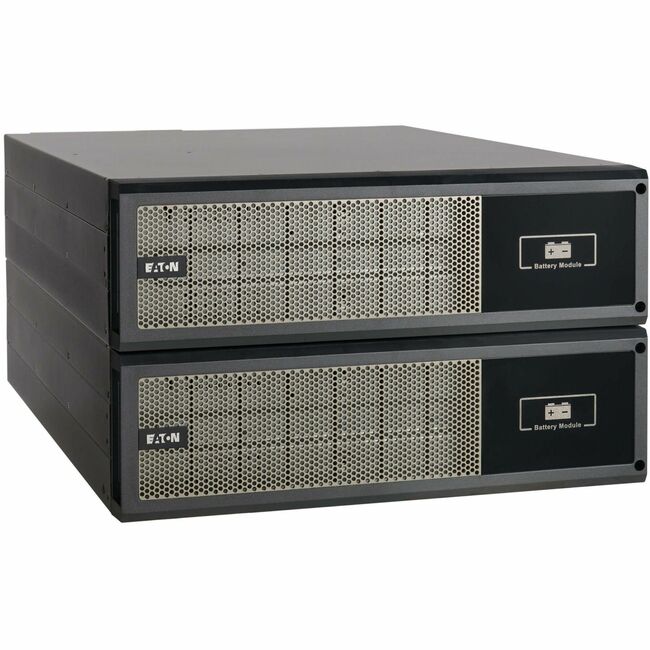

Eaton 93PX2EBM480U Two Rack mountable EBM required for either the 15kW or 20kW UPS Module

Name: Eaton 93PX2EBM480U Two Rack mountable EBM required for either the 15kW or 20kW UPS Module
Brand: Eaton
SKU: 93PX2EBM480U
Price: 3600.0 USD
Availability: InStock

Part Number:

93PX2EBM480U

11 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

11 pieces ready to ship - additional units ship in 7-10 business days.

$3,600.00

USD + Applicable Tax

Eaton Two Rack mountable EBM required for either the 15kW or 20kW UPS Module - 480 V DC - Lead Acid - Valve Regulated Lead Acid (VRLA)

Includes one pair of 3U EBMs combined in one 6U application
Connects to select expandable Eaton 93PX UPS systems for extended runtime
Daisy-chain connector supports additional battery packs for even longer runtime
Comes with heavy-gauge cabling with high-current 480V DC connectors
Innovative quick-connect design for easy plug-and-play deployment and service
2-year limited warranty

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	93PX2EBM480U
Manufacturer Website Address	http://www.eaton.com
Brand Name	Eaton
Product Model	93PX2EBM480U
Product Name	93PX2EBM480U Battery Unit
Marketing Information	Backup Battery Module Gives Your Compatible Eaton UPS System Extended Runtime The 93PX2EBM480U offers extended battery runtime when used in conjunction with Eaton's 93PX 3-phase UPS systems. It can also be daisy-chained for a maximum of four auto-detected pairs of 3U extended battery modules (EBMs) to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation. Innovative Quick-Connect Design for Easy Plug-and-Play Deployment and Service Interconnections between the 93PX2EBM480U, UPS power module(s) and a maintenance bypass panel provide easy plug-and-play setup and serviceability. You can mount all UPS modules in an EIA-standard 19-inch rack using the included hardware, and connect the modules together using the included cables.
Product Type	Battery Unit

Technical Information

Battery Characteristics	Valve Regulated Lead Acid (VRLA)
Battery Chemistry	Lead Acid
Output Voltage	480 V DC
Battery Size	Proprietary Battery Size

Physical Characteristics

Height	5.1" mm
Width	17.2" mm
Depth	27.3" mm
Weight (Approximate)	157.60 lb g

Miscellaneous

Package Contents	93PX2EBM480U Battery Unit Rack-Mounting Hardware Assorted Cabling User Documentation
Compatibility	Eaton 93PX 3-Phase UPS Systems

Warranty

Limited Warranty

2 Year
