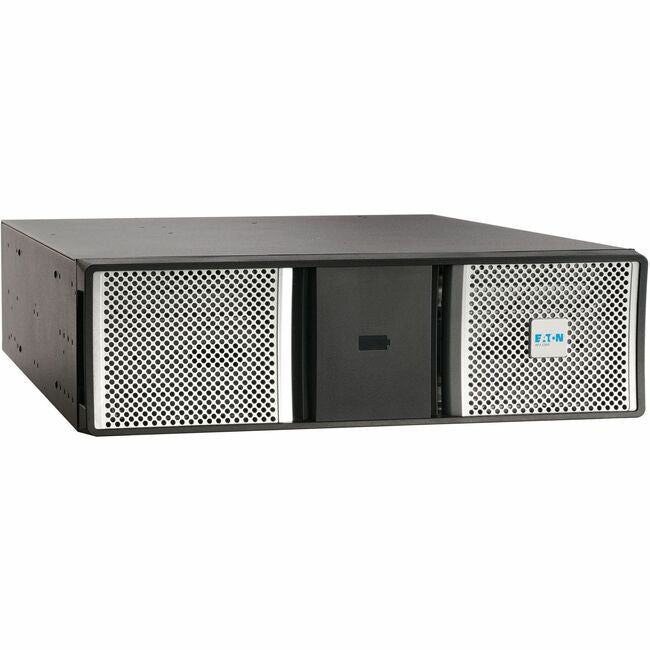

Eaton 9PXEBM180RTG2 180V Extended Battery Module (EBM) for Select Eaton 9PX G2 UPS Systems, 3U Rack/Tower

Name: Eaton 9PXEBM180RTG2 180V Extended Battery Module (EBM) for Select Eaton 9PX G2 UPS Systems, 3U Rack/Tower
Brand: Eaton
SKU: 9PXEBM180RTG2
Price: 2492.28 USD
Availability: InStock

Part Number:

9PXEBM180RTG2

9 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

9 pieces ready to ship - additional units ship in 7-10 business days.

$2,492.28

USD + Applicable Tax

Eaton 180V Extended Battery Module (EBM) for Select Eaton 9PX G2 UPS Systems, 3U Rack/Tower - 180 V DC - Lead Acid - Valve-regulated/User Replaceable - Hot Swappable

Offers a reasonable fit to your UPS
Valve-regulated/User Replaceable battery characteristics provide optimal charging results with added usability
Once installed, it requires low maintenance
With 180 V DC battery, never run out of power and keep your UPS operational at all times

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	9PXEBM180RTG2
Manufacturer Website Address	http://www.eaton.com
Brand Name	Eaton
Product Name	9PXEBM180RTG2 Battery Unit
Marketing Information	Backup Battery Module Gives Your Compatible Eaton UPS System Extended Runtime The 9PXEBM180RTG2 offers extended battery runtime when used in conjunction with Eaton's 9PX3K3UG2, 9PX3K3UNP1G2, 9PX3K3UNP2G2, 9PX3K3UNTF5G2, 9PX5KG2, 9PX5KP1G2, 9PX5KP2G2, 9PX5KTF5G2, 9PX6KG2, 9PX6KIECG2, 9PX6KP1G2, 9PX6KP2G2 and 9PX6KTF5G2 UPS systems. It can also be daisy-chained for a maximum of 12 auto-detected battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation. Supports 3U Rack or Tower Installation This backup battery pack's multi-use form factor supports mounting in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit. You can also adapt it for tower installation using the included support stands. For installation in 2-post racks, one RK2PC mounting kit (sold separately) is required for each UPS, EBM, PPDM or transformer.
Product Type	Battery Unit

Technical Information

Battery Characteristics	Valve-regulated/User Replaceable
Battery Chemistry	Lead Acid
Hot Swappable	Yes
Output Voltage	180 V DC
Battery Size	Proprietary Battery Size

Environmental Conditions

Minimum Operating Temperature	32°F (0°C) °F
Maximum Operating Temperature	104°F (40°C) °F

Physical Characteristics

Height	5.1" mm
Width	17.3" mm
Depth	25" mm
Weight (Approximate)	150 lb g

Miscellaneous

Package Contents	9PXEBM180RTG2 Battery Unit External Battery Cable, 1 ft. (0.3 m) Tower Support Stands Rack-mounting Hardware Quick Start Guide
Compatibility	Eaton's 9PX G2 UPS Systems: 9PX3K3UG2 9PX3K3UNP1G2 9PX3K3UNP2G2 9PX3K3UNTF5G2 9PX5KG2 9PX5KP1G2 9PX5KP2G2 9PX5KTF5G2 9PX6KG2 9PX6KIECG2 9PX6KP1G2 9PX6KP2G2 9PX6KTF5G2
Energy Star	Yes
Country of Origin	Philippines
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

3 Year
