Eaton B070-008-19-IP Tripp Lite by Eaton NetCommander 8-Port Cat5 KVM over IP Switch - 19 in. LCD 1 Remote + 1 Local User 1U Rack-Mount

Name: Eaton B070-008-19-IP Tripp Lite by Eaton NetCommander 8-Port Cat5 KVM over IP Switch - 19 in. LCD 1 Remote + 1 Local User 1U Rack-Mount
Brand: Eaton
SKU: B070-008-19-IP
Price: 2690.58 USD
Availability: InStock

Part Number:

B070-008-19-IP

110 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

110 pieces ready to ship - additional units ship in 7-10 business days.

$2,690.58

USD + Applicable Tax

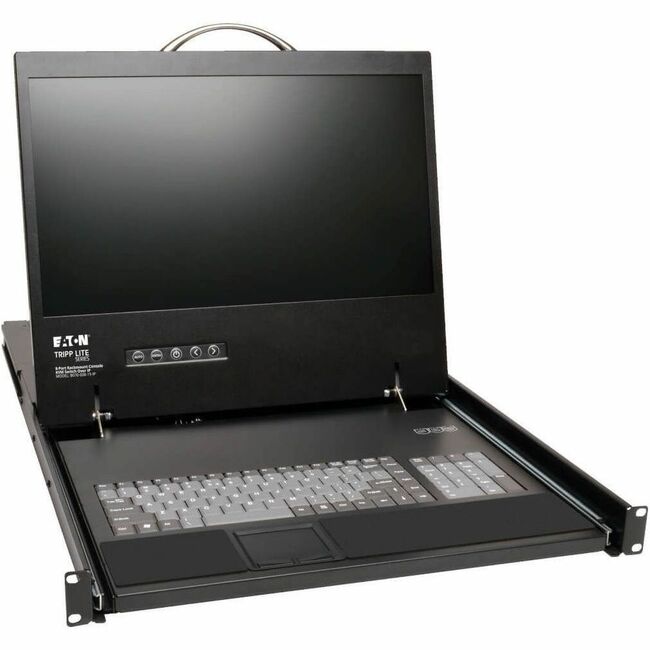

Tripp Lite by Eaton NetCommander 8-Port Cat5 KVM over IP Switch - 19 in. LCD 1 Remote + 1 Local User 1U Rack-Mount - 8 Computer(s) - 19" LCD - 1366 x 768 - 12 x Network (RJ-45) - 1 x USB - Keyboard120 V AC, 230 V AC Input Voltage - 1U High - TAA Compliant

Control computers/servers locally or via LAN, WAN or Internet
Occupies just 1U of space in a rack-mountable drawer
Low-cost Cat5 cabling allows longer distances, reduces cable clutter
19" LCD screen supports video resolutions up to 1366 x 768
Simultaneous support for 2 users - 1 local, 1 remote
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Free Management Software available to Access and Control all of your Tripp Lite NetCommander IP KVM's (B070 and B072 IP series) from a single interface
Fast Virtual Media KVM System patented under Pat. No. US 9,417,720

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	B070-008-19-IP
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Line	NetCommander
Product Model	B070-008-19-IP
Product Name	8-Port, 1+1 User NetCommander Cat5 IP Console KVM Switch
Marketing Information	Tripp Lite's B070-008-19-IP KVM Switch gives you a rack-mountable full keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it's the optimal solution for controlling up to 8 computers/servers locally, from across the room, down the street or halfway around the globe on a LAN, WAN or Internet.The B070-008-19-IP uses inexpensive, user-supplied Cat5e/6/6a cabling with Server Interface Units so you can control computers/servers located up to 100 ft. away from the switch. This switch features two 10/100 Mbps LAN ports, so if one fails, the other takes over, keeping remote access uninterrupted. Users can switch easily between the 8 ports using an on-screen display (OSD). Multi-level password protection prohibits unauthorized users from accessing the connected computers, and a local user and a remote user can be logged on simultaneously. The built-in 19" LCD screen supports video resolutions up to 1366 x 768.Two serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; you can assign individual ports to an IP PDU port to power on/off the server connected to that port. The B070-008-19-IP stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with both Windows and Linux operating systems, and provides remote access using a Windows computer. Heavy-duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. Free NetCommander-AXS Management Software is available for access and control of all of your Tripp Lite NetCommander IP KVM switches (B070 and B072 series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDU's, and manage KVM settings. This software can be found on the model support page of the B070-008-19-IP, or via searching NetCommander-AXS on www.tripplite.com More from the Manufacturer
Product Type	LCD Rack Console

Technical Information

KVM Switch	Yes
KVM Technology	Digital
Number of Computers Supported	8
Device Type	LCD Rack Console

Display & Graphics

Screen Size	19" mm
Display Screen Type	LCD
Screen Resolution	1366 x 768

Input Devices

Keyboard

Yes

Interfaces/Ports

Network (RJ-45)	Yes
USB	Yes
Number of Network (RJ-45) Ports	12
Number of USB Ports	1

Power Description

Input Voltage	120 V AC
Input Voltage	230 V AC

Physical Characteristics

Color Family	Black
Product Color	Black
Rack Height	1U
Height	1.7" mm
Width	17.4" mm
Depth	28.4" mm
Weight (Approximate)	28.66 lb g

Miscellaneous

Package Contents	8-Port, 1+1 User NetCommander Cat5 IP Console KVM Switch Power Cord Rackmount Hardware Owners Manual CD Quick Start Guide
Environmentally Friendly	Yes
Country of Origin	Taiwan
TAA Compliant	Yes

Warranty

Limited Warranty

1 Year
