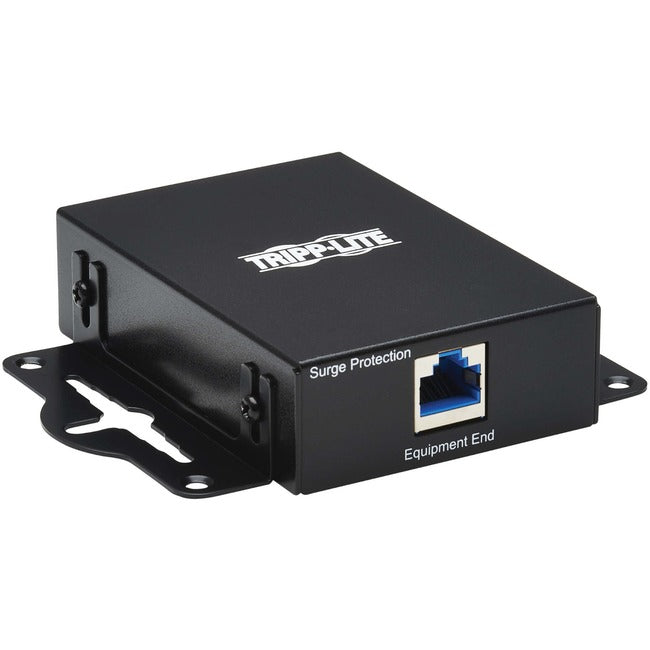

Eaton B110-SP-10G Tripp Lite by Eaton In-Line Network Surge Protector - 10 Gbps, Cat6a/8, Metal Case, IEC Compliant, TAA

Name: Eaton B110-SP-10G Tripp Lite by Eaton In-Line Network Surge Protector - 10 Gbps, Cat6a/8, Metal Case, IEC Compliant, TAA
Brand: Eaton
SKU: B110-SP-10G
Price: 91.67 USD
Availability: InStock

Part Number:

B110-SP-10G

248 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

248 pieces ready to ship - additional units ship in 7-10 business days.

$91.67

USD + Applicable Tax

Tripp Lite by Eaton In-Line Network Surge Protector - 10 Gbps, Cat6a/8, Metal Case, IEC Compliant, TAA - 2 x RJ-45 - Ethernet - TAA Compliant

Easy to connect between network source and device using standard Cat5/5e/6/8 cabling
Rapid reaction time under 1 ns helps prevent damage from power surges
Supports Ethernet network data transmission speeds up to 10 Gbps
Plug-and-play operation with no software required for easy, immediate installation
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
2-year limited warranty

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	B110-SP-10G
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Model	B110-SP-10G
Product Name	B110-SP-10G Surge Suppressor/Protector
Marketing Information	In-Line Surge Protector Keeps Your 10G Ethernet Network Equipment Safe Ideal for home/corporate security systems, home theaters, trade shows and other digital signage applications, the B110-SP-10G protects connected network equipment from damage caused by electrostatic discharge (ESD), power surges and cable discharge events. Just connect it between your network source and device using Cat5/5e/6/6a/8 cables and ground it with the included wire. Your Last Defense Against Intruding Voltage Spikes Solid-state silicon-avalanche diode technology features low clamping voltage, providing superior protection against ESD and super-fast response time under one nanosecond. Gas discharge modules on all four twisted pairs protect each wire from surges or spikes by dissipating the voltage transient through a contained plasma gas. The B110-SP-10G meets the following IEC regulations: IEC 61000-4-2 (8K/15kV), IEC 61000-4-5 2kA (8/20µs), 6kV (8/20µs) and IEC 61000-4-4 (2kV) Ready to Use Right from the Package, So You Can Plug and Play Immediately This in-line surge protector supports data transmission speeds up to 10 Gbps without signal degradation. No software, drivers or external power supply is required. The compact metal housing is designed to endure in applications where static discharge is likely to occur. Mounting hardware is included for convenient installation where needed. Be sure the distance between the B110-SP-10G and the equipment it is protecting is no more than 330 feet. TAA-Compliant for GSA Schedule Purchases The B110-SP-10G is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Packaged Quantity	Box
Product Type	Surge Suppressor/Protector

Technical Information

Receptacles	2 x RJ-45
Dataline Protection	Ethernet

Physical Characteristics

Product Material	Aluminum
Height	3.6" mm
Width	2.5" mm
Depth	1" mm
Weight (Approximate)	8.80 oz g

Miscellaneous

Package Contents	B110-SP-10G Surge Suppressor/Protector Grounding Wire Grounding Wire Screw Mounting Hardware Quick Start Guide
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty

Limited Warranty

2 Year
