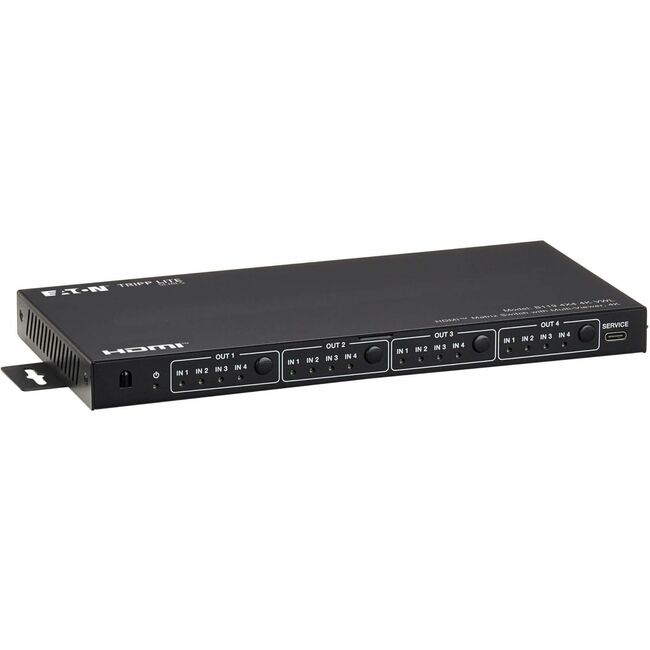

Eaton B119-4X4-4K-VWL Tripp Lite series B119-4X4-4K-VWL Audio/Video Switchbox

Extends 4K Video from 4 HDMI Sources to 4 HDMI Monitors or HDTVs

The B119-4X4-4K-VWL is a 4x4 seamless matrix switch that can also be used as a video wall processor. In switch mode, it can display any of the four HDMI inputs on any of the four HDMI output displays at 4K resolution. In video wall mode, it divides one display across two to four devices at 1080p resolution, creating a super-display of multiple screens. It is ideal for video wall applications in retail settings, concert venues, restaurants and bars, hotels, offices, houses of worship and other applications where large, visually appealing displays are needed.

2 Operational Modes: 4x4 Matrix and Video Wall

This Matrix Switch features four 4K/30 Hz HDMI inputs and four HDMI outputs to create 10 unique video wall splicing modes: 2x2, 2x1, 2x1-2, 1x2, 1x2-2, 3x1, 4x1, 1x3, 1x4 and matrix. Output resolutions can be upscaled or downscaled to 720p, 1080p, 1920 x 1200 or 4K/30 Hz. Seamless video switching ensures no delay or picture loss during transitions. You can set display modes via front-panel buttons, the included remote or RS-232 commands.

Transmits 4K Video with 4:4:4 Color

The B119-4X4-4K-VWL supports Ultra HD 4K resolutions at 30 Hz with LPCM, Dolby Digital/Plus and DTS audio. HDCP 1.4 encryption allows you to stream 4K content with no loss in resolution. This switch also supports uncompressed 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

Plug-and-Play Operation for Quick Setup and Immediate Use

The unit works right out of the box with no software required. Mounting hardware is included for installing the unit on a wall or other flat surface. Connect up to four 4K source devices to the HDMI inputs and up to four 4K displays to the HDMI outputs with user-supplied cables. The external power supply comes with four international plug adapters to ensure an AC connection anywhere.

TAA-Compliant for GSA Schedule Purchases

The B119-4X4-4K-VWL is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

• HDMI Matrix Switch
• Remote Control
• 3-pin RS-232 Phoenix Connector
• External Power Supply (Input: 100-240V, 50/60 Hz, 0.4A; Output: 12V 1A) with 4 ft. (1.2 m) cord
• 4x International Plug Adapters (AS/NZS 3112 Australia, BS 1363 UK, CEE 7/7 Schuko, NEMA 1-15P North America)
• Mounting Hardware
• Installation Instructions
