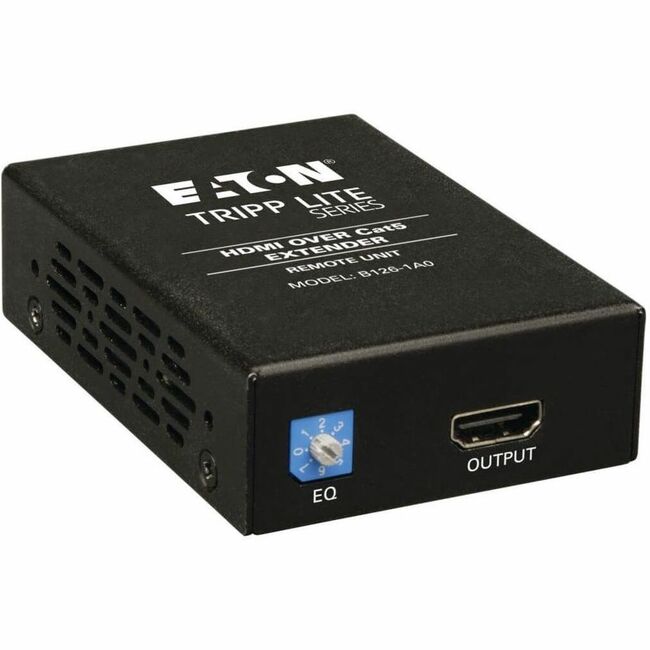

Eaton B126-1A0 Tripp Lite by Eaton HDMI over Cat5/6 Extender Box-Style Remote Receiver for Video/Audio Up to 150 ft. (45 m) TAA

Name: Eaton B126-1A0 Tripp Lite by Eaton HDMI over Cat5/6 Extender Box-Style Remote Receiver for Video/Audio Up to 150 ft. (45 m) TAA
Brand: Eaton
SKU: B126-1A0
Price: 251.02 USD
Availability: InStock

Part Number:

B126-1A0

538 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

538 pieces ready to ship - additional units ship in 7-10 business days.

$251.02

USD + Applicable Tax

Tripp Lite by Eaton HDMI over Cat5/6 Extender Box-Style Remote Receiver for Video/Audio Up to 150 ft. (45 m) TAA - 1 Input Device - 1 Output Device - 200 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - Twisted Pair - TAA Compliant

Works in tandem with B126-002 or B126-004 transmitter unit
Supports high-definition video resolutions up to 1080p (60 Hz)
Supports stereo and 7.1-channel surround sound audio
Works with all operating systems and HDMI video sources
Plug and play-no software or drivers to install

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	B126-1A0
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Model	B126-1A0
Product Name	B126-1A0 Video Console
Marketing Information	The B126-1A0 is a receiver unit that is used with the B126-002 and B126-004 transmitter units. It extends a 1080p (60Hz) signal to a monitor up to 150 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) It features a built-in Equalization control for adjustment of the video image. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM). Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the receiver unit to a display using a Tripp Lite P568-Series HDMI cable (not included). Finally, connect the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. More from the Manufacturer
Product Type	Video Extender Receiver

Technical Information

Connectivity Technology	Wired
Number of Input Devices Supported	1
Number of Output Devices Supported	1
Maximum Operating Distance	200 ft mm

Interfaces/Ports

Network (RJ-45)	Yes
HDMI Out	Yes
Number of Network (RJ-45) Ports	1
Number of HDMI Outputs	1

Media & Performance

Media Type Supported	Twisted Pair
Twisted Pair Cable Standard	Category 6

Physical Characteristics

Color Family	Black
Product Color	Black
Receiver Height	1" mm
Receiver Width	2.50" mm
Receiver Depth	3.60" mm
Form Factor	Wall Mountable

Miscellaneous

Package Contents	B126-1A0 Video Console Screwdriver for Adjustment of Equalization Mounting Hardware External Power Supply Owner's manual
Country of Origin	Taiwan
TAA Compliant	Yes

Warranty

Limited Warranty

1 Year
