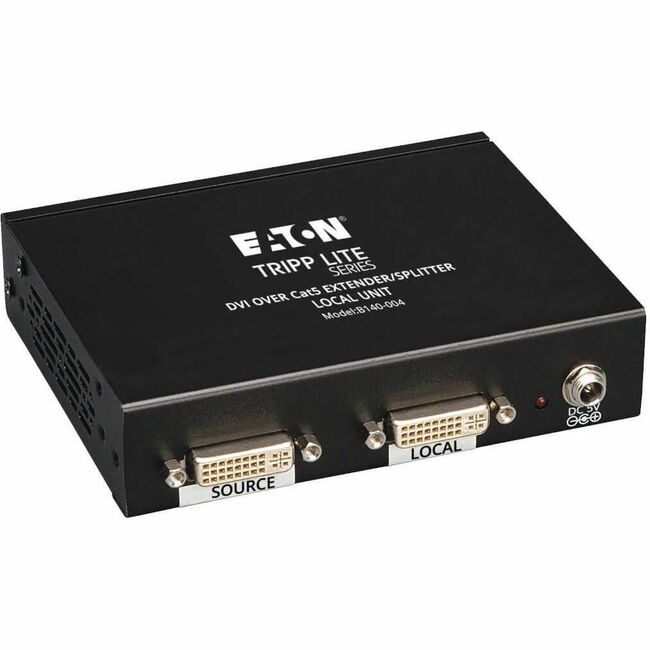

Eaton B140-004 Tripp Lite Series 4-Port DVI over Cat5/6 Splitter/Extender, Box-Style Transmitter for Video, DVI-D Single Link, 200 ft. (60 m), TAA

100% Genuine

Manufacturer Warranty

Fast US Shipping

Eaton B140-004 Tripp Lite Series 4-Port DVI over Cat5/6 Splitter/Extender, Box-Style Transmitter for Video, DVI-D Single Link, 200 ft. (60 m), TAA

Part Number:

B140-004

161 pieces ready to ship - additional units ship in 7-10 business days.
Estimated shipping in 7–10 business days.
Estimated shipping in 7–10 business days.
Ready to ship.

161 pieces ready to ship - additional units ship in 7-10 business days.

$364.98

USD + Applicable Tax
Visa
Mastercard
American Express
PayPal
Shop Pay

Eaton Tripp Lite Series 4-Port DVI over Cat5/6 Splitter/Extender, Box-Style Transmitter for Video, DVI-D Single Link, 200 ft. (60 m), TAA - 1920x1080 at 60Hz

  • Supports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60Hz
  • For longer distances - Use a B140-1A0 or B140-1A0-WP active receiver unit to extend a 1920 x 1080 @ 60Hz signal up to 150 ft., or a 1024 x 768 @ 60Hz signal up to 200 ft.
  • For shorter distances - Use a B140-1P0 or B140-1P0-WP-1 passive receiver unit to extend a 1920 x 1080 @ 60Hz signal up to 50 ft., or a 1024 x 768 @ 60Hz signal up to 100 ft.
  • Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, to achieve maximum distance and resolution
  • Can further expand the range and number of monitors by adding B140-110 repeaters
  • Compatible with all operating systems
  • Plug and play, no software or drivers required

General Information

Manufacturer Eaton Corporation
Manufacturer Part Number B140-004
Manufacturer Website Address http://www.eaton.com
Brand Name Tripp Lite series
Product Model B140-004
Product Name DVI over Cat5 Extender/Splitter, 4-Port Local Transmitter Unit
Marketing Information

The B140-004 transmits a DVI-D Single-Link signal to four monitors up to 200 ft. away using a single Cat5e/6 patch cable. To achieve maximum distance and resolution, use 24AWG Solid Wire Cat5e/6 cable (Tripp Lite's N202-Series). An additional DVI port is provided for the connection of a local monitor. This local DVI port can also be used to daisychain up to 3 units together, allowing for the connection of up to 13 monitors (12 remote, 1 local). Mounting hardware is included that allows the unit to be rackmounted, wallmounted or pole mounted. In addition, up to three units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB 19" rackmount bracket. The B140-002 is compatible with all operating systems, and is plug and play, with no software or drivers required.

Installation is simple. Connect the B140-004 transmitter to a DVI source using a Tripp Lite P561-Series DVI cable (not included). Connect a Tripp Lite B140-series receiver (not included) to each display using a Tripp Lite P561-Series DVI cable (not included). Finally, each remote receiver is connected to an RJ45 port on the B140-004 using a single Cat5e/6 cable.

For longer extension distances, use a B140-1A0 or B140-1A0-WP active receiver unit to extend a 1920 x 1080 @ 60Hz signal up to 150 ft., or a 1024 x 768 @ 60Hz signal up to 200 ft..

For shorter extension distances, use a B140-1P0 or B140-1P0-WP passive receiver unit to extend a 1920 x 1080 @ 60Hz signal up to 50 ft., or a 1024 x 768 @ 60Hz signal up to 100 ft..

Further expand the range and number of monitors by using a B140-110 repeater unit. Add up to four remote units (three repeaters and one active receiver) to each channel of the B140-004, for a total of 4 displays per channel. (An active receiver should be the last unit in a channel) A 1920 x 1080 @ 60Hz signal can be extended up to 125 ft. from each repeater to the next unit in the channel, or a 1024 x 768 @ 60Hz signal can be extended up to 175 ft..

More from the Manufacturer
Product Type Video Extender Transmitter

Technical Information

Connectivity Technology Wired
Number of Input Devices Supported 1
Number of Output Devices Supported 5
Maximum Operating Distance 200 ft mm

Video

Graphics Modes Full HD
Maximum Video Resolution 1920 x 1080

Interfaces/Ports

Network (RJ-45) Yes
DVI In Yes
Number of Network (RJ-45) Ports 4
Number of DVI Inputs 2

Media & Performance

Media Type Supported Twisted Pair
Twisted Pair Cable Standard Category 6

Physical Characteristics

Color Family Black
Product Color Black
Transmitter Height 1.13" mm
Transmitter Width 5" mm
Transmitter Depth 4" mm

Miscellaneous

Package Contents
  • B140-004 DVI Over Cat5 Extender/Splitter, 4-Port Local Transmitter Unit
  • 1 ft. DVI Daisychain Cable
  • Mounting Hardware
  • External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
  • Owner's Manual
Country of Origin Taiwan
TAA Compliant Yes
Environmentally Friendly Yes

Warranty

Limited Warranty 1 Year
