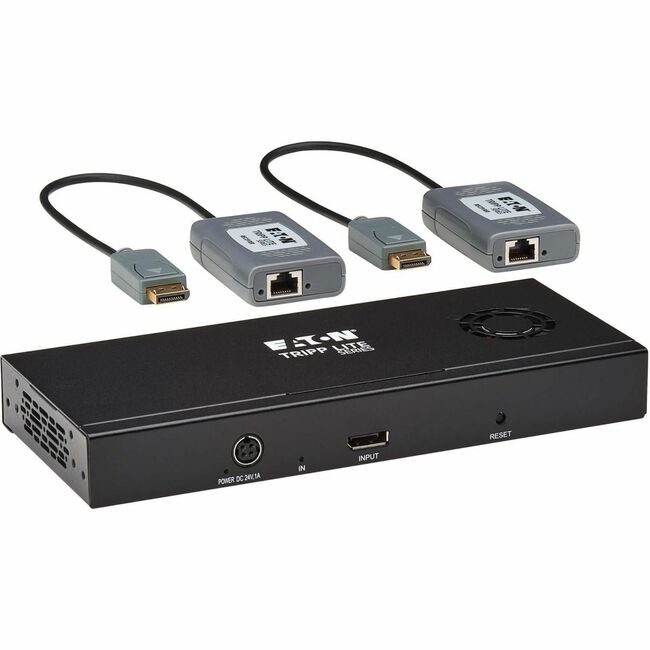

Eaton B156E-002-8K-K Tripp Lite Series 2-Port DisplayPort to DisplayPort Splitter/Extender Kit over Cat6, MST Hub, 8K/4K 60 Hz, DP 1.4, Up to 230 ft. (70 m), TAA

Splits and extends a 4K DisplayPort audio/video signal to two separate DisplayPort monitors up to 230 ft. away with zero latency.

• Transmits in mirrored, extended and video wall modes for advanced digital signage
• Supports UHD resolutions up to 8K @ 60 Hz (4:4:4) in video wall mode
• Power over Cable (PoC) technology provides power to the receivers via Cat6 cable
• Ready for plug-and-play operation with no additional software or drivers needed
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
• 1-year limited warranty

Features | Connect up to 2 DisplayPort Monitors to Your DisplayPort Computer up to 230 ft. Away

This multi-display splitter connects two 4K or 8K DisplayPort monitors, projectors or televisions to the DisplayPort output on your laptop or desktop computer. Recommended for digital signage in schools, churches, trade shows, hotels, office conference rooms, restaurants, bars and retail outlets, the B156E-002-8K-K helps you create video walls, give audio/video presentations in front of large audiences or stream 4K/8K video to multiple locations.

DisplayPort Multi-Stream Transport (MST) Allows Connection of Multiple Displays

By connecting the DisplayPort input to a source that supports DisplayPort MST Mode, you may connect two monitors simultaneously. This allows you to display the same image on each monitor, extend your host desktop across both monitors or combine both monitors into one large display as a video wall. LED indicators let you know which monitors are receiving an AV signal.

Transmits 8K Video Using Cat6 Cabling

The B156E-002-8K-K supports Ultra HD resolutions up to 3840 x 2160 at 60 Hz per monitor with 12-bit Deep Color and 2-channel LPCM audio in extended desktop and mirror modes. In video wall mode, it supports expanded resolutions, including 7680 x 2160 at 60 Hz (2x1 vertical configuration) and 3840 x 4320 at 60 Hz (1x2 horizontal configuration). The B156E-002-8K-K is compliant with DisplayPort 1.4 standards and is backward compatible with previous versions. Note : When in video wall mode, it is recommended to use monitors of the same brand and model to ensure full functionality.

Supports HDR and 4:4:4 for the Sharpest Video Possible

The B156E-002-8K-K supports HDR (High Dynamic Range), providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.3 encryption allows you to stream 4K content with no complications. This extender kit also supports uncompressed 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

Built-In PoC Technology Provides Receiver Power to Avoid Bulky External Power Bricks

Power over Cable (PoC) technology powers the remote receivers over Cat6 cable. LEDs on both the transmitter and receivers will light up to indicate the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of bulky power bricks and gives you the freedom to place the receivers away from an AC outlet.

Designed for Plug-and-Play Convenience

Just connect your source device to the splitter with a user-supplied DisplayPort cable up to 15 feet (4.6 meters). User-supplied Cat6 cables connect the splitter and the pigtail receivers, which connect directly to the monitors' DisplayPort input. No software or drivers are needed. Plug the splitter's external power supply into a compatible AC outlet. Four international plug adapters (North America, Europe, U.K., Australia) are also included. Rugged metal enclosure comes with detachable brackets for mounting on a level s

• Receiver Unit Dimensions: (hwd / in.) 2.95 x 1.85 x 0.73
• Transmitter Unit Dimensions: (hwd / in.) 9.25 x 3.94 x 1.17
• Unit Dimensions: (hwd / in.) 1.169 x 9.252 x 3.937 AC
• Power Adapter Cord Length: (m) 1.4

• Receiver Unit Weight: (lbs.) 0.48501
• Transmitter Unit Weight: (lbs.) 1.433
• Unit Weight: (lbs.) 2.5

• B156E-002-8K-K 2-Port DisplayPort to DisplayPort Multi-Monitor Splitter
• 2 x DisplayPort pigtail receivers
• External power supply (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A) with 4.5 ft. cord
• 4 x International plug adapters (North America, Europe, U.K., Australia)
• Mounting hardware
• Installation guide
