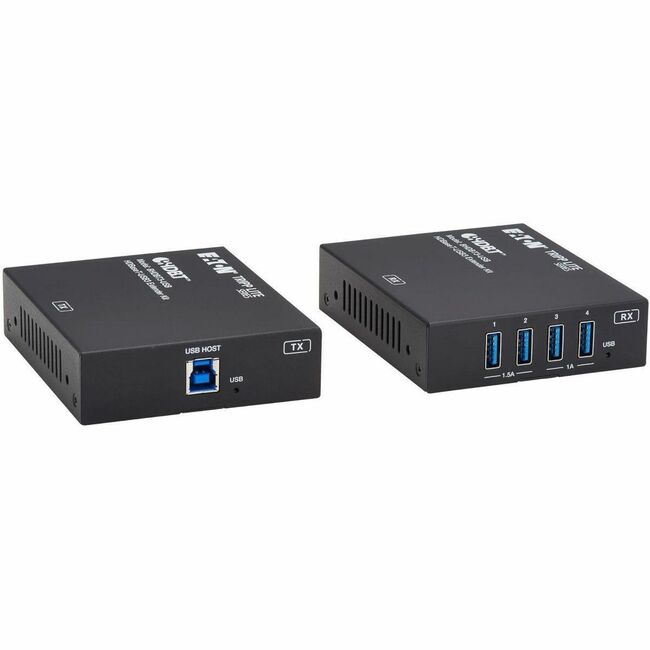

Eaton BHDBT3-USB Tripp Lite HDBaseT-USB3 over Cat6a extender kit with 4 USB-A ports, PoC, RS-232, up to 328 ft.

100% Genuine

Manufacturer Warranty

Fast US Shipping

Eaton BHDBT3-USB Tripp Lite Series HDBaseT-USB3 over Cat6a Extender Kit, 4 USB-A 3.2 Gen 1 Ports, PoC, RS-232, Up to 328 ft. (100 m), TAA

Part Number:

BHDBT3-USB

70 pieces ready to ship - additional units ship in 7-10 business days.
Estimated shipping in 7–10 business days.
Estimated shipping in 7–10 business days.
Ready to ship.

70 pieces ready to ship - additional units ship in 7-10 business days.

$731.53

USD + Applicable Tax
Visa
Mastercard
American Express
PayPal
Shop Pay

Eaton Tripp Lite Series HDBaseT-USB3 over Cat6a Extender Kit, 4 USB-A 3.2 Gen 1 Ports, PoC, RS-232, Up to 328 ft. (100 m), TAA - 2 x Network (RJ-45) - 7 x USB - 328.08 ft Extended Range - 328.08 ft Operating Distance - Metal - Black

  • Latest HDBaseT technology allows placement of USB devices up to 100 m (328 ft.) from source
  • 4 USB-A ports support USB 3.2 Gen 1 data transfer rates up to 5 Gbps
  • Power over Cable (PoC) powers both the transmitter and receiver from either end
  • Supports RS-232 passthrough and FSYNC GPIO passthrough for industry camera use
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

General Information

Manufacturer Eaton Corporation
Manufacturer Part Number BHDBT3-USB
Manufacturer Website Address http://www.eaton.com
Brand Name Tripp Lite series
Product Model BHDBT3-USB
Product Name BHDBT3-USB USB Extender
Marketing Information

HDBaseT Extender Kit Allows Installation of USB Devices Up to 100 m (328 ft.) from the Source

This USB transmitter and receiver use HDBaseT technology to extend and expand the potential of your USB devices. Using a single Cat6a cable, the BHDBT3-USB extends four USB peripherals up to 328 feet (100 meters), giving you more flexibility in placing webcams, interactive whiteboards, security and surveillance equipment and external data storage devices, among others.

Designed with the Newest HDBaseT 3.0 Technology

The BHDBT3-USB extension kit uses the latest Valens chipset to provide a modern solution to USB extension. It supports USB 3.2 Gen 1 data transfer rates up to 5 Gbps and is backward compatible with previous USB generations. It also supports both RS-232 and FSYNC GPIO pass-through, making the BHDBT3-USB ideal for conference halls, auditoriums, lecture halls, museums, exhibition rooms and anywhere else that requires high-quality transmission across long distances.

Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks

Bi-directional 24V Power over Cable (PoC) support powers the entire installation over Cat6a cable. Connect the included power supply at either the transmitter or the receiver end. LEDs on both the transmitter and transceiver light up to indicate the system is receiving power and a USB signal is being transmitted. PoC helps you avoid the hassle of a bulky power brick and gives you the freedom to place one end where needed without worrying about finding a nearby AC outlet.

Plug-and-Play Convenience and Easy Installation

The BHDBT3-USB requires no software or drivers to install, making setup simple. The transmitter and receiver mount to a wall using the included brackets.

TAA-Compliant for GSA Schedule Purchases

The BHDBT3-USB is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Product Type USB Extender

Technical Information

Maximum Extended Range 328.08 ft mm
Maximum Data Transfer Rate 640 MB/s Bps
Maximum Operating Distance 328.08 ft mm

Interfaces/Ports

Network (RJ-45) Yes
Number of Network (RJ-45) Ports 2
USB Yes
Number of USB Ports 7

Power Description

Input Voltage 240 V AC

Physical Characteristics

Color Family Black
Product Color Black
Product Material Metal
Transmitter Weight (Approximate) 9.12 oz g
Receiver Weight (Approximate) 8.80 oz g

Miscellaneous

Package Contents
  • USB 3.2 Gen 1 transmitter
  • USB 3.2 Gen 1 receiver
  • Locking power supply (Input: 100-240V, 50/60 Hz, 1.5A; Output: 24V 2A 48W) with 5 ft. (1.5 m) cord
  • 4x International power adapters (North America, Australia, Europe, United Kingdom)
  • 2x 3.5 mm Phoenix connectors
  • Mounting hardware
  • Owner's manual
Country of Origin China
TAA Compliant Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS) 3
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
Environmental Compliance Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty

Limited Warranty 1 Year
