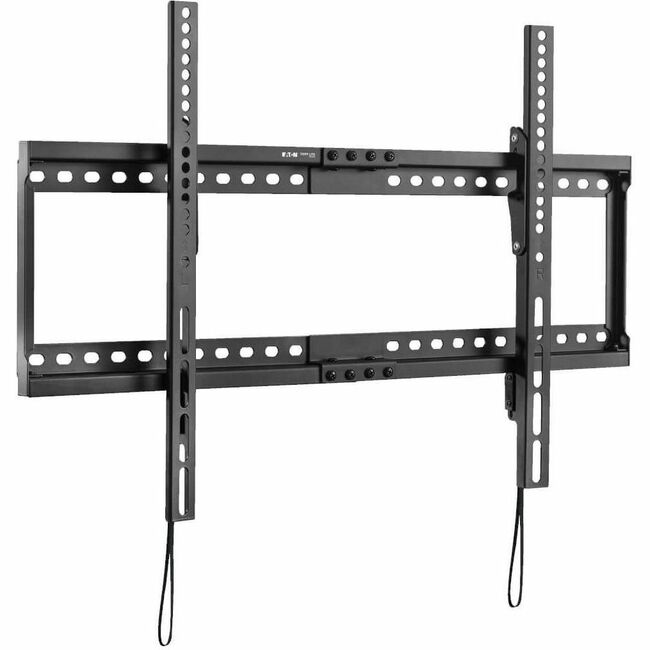

Eaton DWT3280X Tripp Lite Series Heavy-Duty Tilt Wall Mount for 32" to 80" Curved or Flat-Screen Displays

Name: Eaton DWT3280X Tripp Lite Series Heavy-Duty Tilt Wall Mount for 32" to 80" Curved or Flat-Screen Displays
Brand: Eaton
SKU: DWT3280X
Price: 114.84 USD
Availability: InStock

Part Number:

DWT3280X

586 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

586 pieces ready to ship - additional units ship in 7-10 business days.

$114.84

USD + Applicable Tax

Eaton Tripp Lite Series Heavy-Duty Tilt Wall Mount for 32" to 80" Curved or Flat-Screen Displays - 1 Display(s) Supported - 32? to 80? Screen Support - 32 lb Load Capacity - 150 x 100, 150 x 150, 200 x 100, 200 x 200, 200 x 400, 300 x 200, 300 x 300, 350 x 350, 400 x 200, 400 x 300, 400 x 400, ... VESA Standard

Accepts most popular curved and flat-screen displays from 32 to 80 in. up to 165 lb. (75 kg.)
Automatic spring locks with quick-release cords ensure quick and easy display removal
Adjustable horizontal mounting rails help compensate for off-center wall studs
Open-back architecture enables easy access to cables and power cords
Conforms to current VESA standards to ensure compatibility with your display
5-year limited warranty

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	DWT3280X
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Model	DWT3280X
Product Name	Heavy-Duty Tilt Wall Mount for 32" to 80" Curved or Flat-Screen Displays
Marketing Information	Mounts Your TV or Monitor on the Wall for a Perfect Viewing Angle Recommended for home theaters, classrooms, conference rooms, hotels, bars, restaurants or anywhere else you may want to show off a television or monitor, this low-profile TV wall mount is hidden out of sight behind the display for a sleek, professional appearance. It fits most curved- and flat-screen displays from 32 to 80 inches and up to 165 pounds (75 kilograms). Tilt Feature Lets You Adjust the Viewing Angle to Your Specifications You can adjust the horizontal angle of your display from -8° to +0°. This will minimize glare on the screen and allow you to customize the angle for comfortable viewing. Durable All-Metal Construction Provides Convenient Cable Access The DWT3280X is constructed from heavy-duty steel with a powder-coated black finish that resists scratches. Its open frame design with smooth edges enables easy access to cabling. Horizontal mounting rails adjust to compensate for off-center wall studs. Removing and replacing the display is fast and simple using the automatic spring locks with quick-release cords. VESA-Compliant Mounting Ensures Display Compatibility VESA (Video Electronics Standards Association) promotes uniformity in the video electronics industry by developing standards for TVs and monitors. For hassle-free display compatibility, this mount supports the following VESA mounting hole patterns: 150 x 100, 150 x 150, 200 x 100, 200 x 200, 200 x 400, 300 x 200, 300 x 300, 350 x 350, 400 x 200, 400 x 300, 400 x 400, 600 x 200, 600 x 300 and 600 x 400. Mounting hardware is included.
Product Type	Wall Mount

Product Information

Device Supported	Curved Screen Display
Device Supported	Flat Panel Display
Device Supported	Monitor
Device Supported	HDTV
Number of Displays Supported	1
Maximum Load Capacity	32 lb g
Minimum Screen Size Supported	32" mm
Maximum Screen Size Supported	80" mm
Features	Spring Lock
Features	Quick Release Mechanism
Features	Horizontal Adjustment
Features	Adjustable Angle
Features	Reduced Glare
Features	Heavy Duty
Features	-8°/0° Tilt
Mount Profile	Low Profile
Durability	Scratch Resistant

Physical Characteristics

Color Family	Black
Product Color	Black
Product Material	Steel
VESA Mount Compatible	Yes
Mounting Pattern	150 x 100
Mounting Pattern	150 x 150
Mounting Pattern	200 x 100
Mounting Pattern	200 x 200
Mounting Pattern	200 x 400
Mounting Pattern	300 x 200
Mounting Pattern	300 x 300
Mounting Pattern	350 x 350
Mounting Pattern	400 x 200
Mounting Pattern	400 x 300
Mounting Pattern	400 x 400
Mounting Pattern	600 x 200
Mounting Pattern	600 x 300
Mounting Pattern	600 x 400
Height	16.50" mm
Width	25.20" mm
Depth	1.50" mm
Weight (Approximate)	3.25 lb g

Miscellaneous

Package Contents	Heavy-Duty Tilt Wall Mount for 32" to 80" Curved or Flat-Screen Displays Mounting hardware Owner's manual
Application/Usage	Wall
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmental Compliance	Restriction of Hazardous Substances (RoHS) 3

Warranty

Limited Warranty

5 Year
