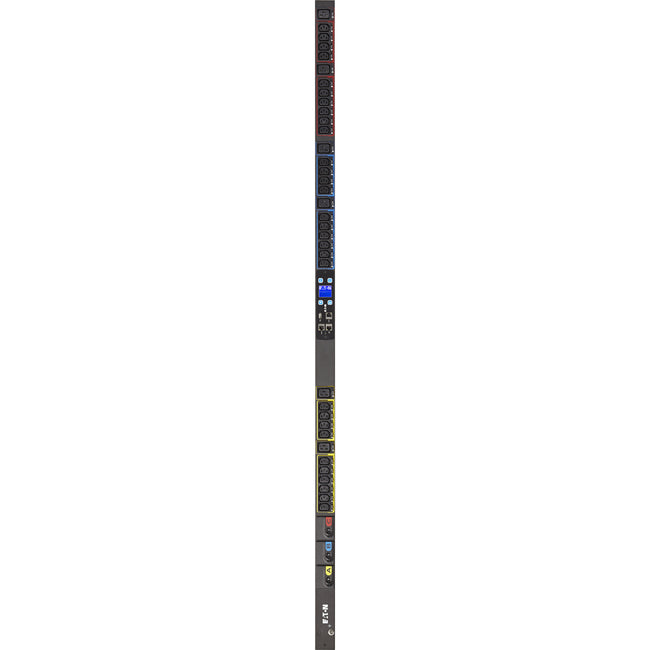

Eaton EMI305-06 Metered Input rack PDU, 0U, CS8365 input, 12.48 kW max, 200-240V, 35A, 6 ft cord, Three-phase, Outlets: (30) C13 Outlet grip, (6) C19 Outlet grip

100% Genuine

Manufacturer Warranty

Fast US Shipping

Eaton EMI305-06 Metered Input rack PDU, 0U, CS8365 input, 12.48 kW max, 200-240V, 35A, 6 ft cord, Three-phase, Outlets: (30) C13 Outlet grip, (6) C19 Outlet grip

Part Number:

EMI305-06

53 pieces ready to ship - additional units ship in 7-10 business days.
Estimated shipping in 7–10 business days.
Estimated shipping in 7–10 business days.
Ready to ship.

53 pieces ready to ship - additional units ship in 7-10 business days.

$1,614.60

USD + Applicable Tax
Visa
Mastercard
American Express
PayPal
Shop Pay

Eaton Metered Input rack PDU, 0U, CS8365 input, 12.48 kW max, 200-240V, 35A, 6 ft cord, Three-phase, Outlets: (30) C13 Outlet grip, (6) C19 Outlet grip - CS8365 - 30 x IEC 60320 C13, 6 x IEC 60320 C19 - 230 V AC - 12.48 kW - Network (RJ-45) - 38U - Rack-mountable

  • New ePDU G3 models feature ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address
  • High density units support up to 25 1U/2U servers or three blade server chassis
  • Easy read digital ammeter reduces local monitoring time
  • Clearly labeled circuits simplify load balancing
  • Reading available via Ethernet connection over a network
  • UL Listed (UL489) branch circuit breakers meet UL60950-1 Edition requirements

General Information

Manufacturer Eaton Corporation
Manufacturer Part Number EMI305-06
Manufacturer Website Address http://www.eaton.com
Brand Name Eaton
Product Line ePDU
Product Name ePDU 36-Outlets PDU
Marketing Information Eaton G3 Metered Input ePDUs provide a best-in-class design featureing billing grade accuracy monitoring of input and branch circuits on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Designed for IT and data center applications means high reliability and a robust design made for high operating temperatures found in containment or networking closets.
  • IEC outlet grip plug retention secures plugs in place using standard cables
  • Advanced LCD pixel display for local display of current, voltage, power, energy and menu setup of parameters such as IP address or display rotation
  • High operating temperature (140F / 60C) for containment or hot network closet environments
  • Hot-swap meter for servicability of without removing power to the rack
  • +/- 1% billing grade accuracy for high accuracy reporting of energy usage
  • Daisy chain of IP addresses allows four devices to share one network connection
Product Type PDU

Technical Information

Plug/Connector Type CS8365
Receptacle Type IEC 60320 C13
Receptacle Type IEC 60320 C19
Receptacle Detail 30 x IEC 60320 C13
Receptacle Detail 6 x IEC 60320 C19

Power Description

Input Voltage 230 V AC
Power Rating (Watt) 12.48 kW
Input Current 35 A

Interfaces/Ports

Network (RJ-45) Yes

Physical Characteristics

Mount Type Rack-mountable
Rack Height 38U
Cord Length 6 ft mm
Height 66.5" mm
Width 2.1" mm
Depth 2.1" mm
Weight (Approximate) 17.40 lb g

Miscellaneous

Country of Origin Morocco

Warranty

Limited Warranty 3 Year
