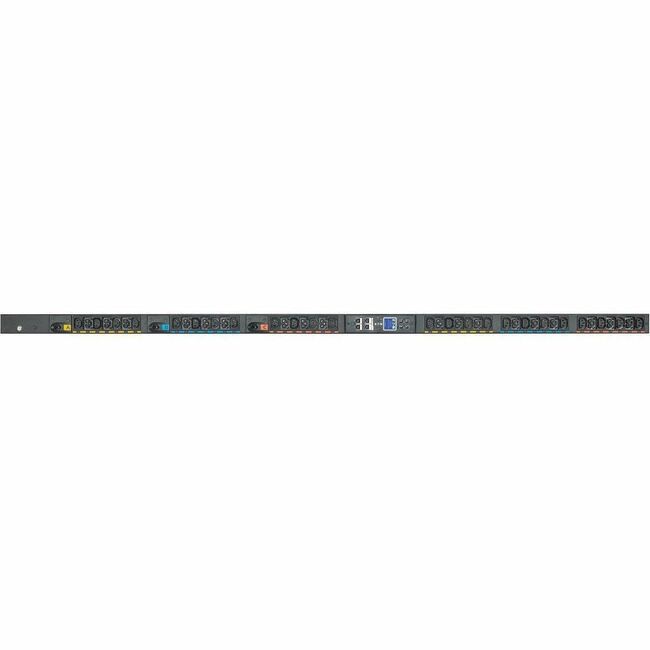

Eaton EVMIGU23A-E Universal-Input Metered PDU G4, 208V and 415/240V, 24 Outlets, Input Cable Sold Separately, 0U Vertical

Name: Eaton EVMIGU23A-E Universal-Input Metered PDU G4, 208V and 415/240V, 24 Outlets, Input Cable Sold Separately, 0U Vertical
Brand: Eaton
SKU: EVMIGU23A-E
Price: 1909.8 USD
Availability: InStock

Part Number:

EVMIGU23A-E

796 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

796 pieces ready to ship - additional units ship in 7-10 business days.

$1,909.80

USD + Applicable Tax

Eaton Universal-Input Metered PDU G4, 208V and 415/240V, 24 Outlets, Input Cable Sold Separately, 0U Vertical - Metered - Universal Input - 12 x IEC 60309 C13, 12 x IEC 60309 C19 - Network (RJ-45) - 0U - Vertical - Rack-mountable - Vertical

Metered-input UPDU with removable input cable (sold separately) accommodates both single- and three-phase power in 208V and 415/240V environments
Universal power input accommodates 5kVA single-phase to 23kVA 3-phase levels
Allows choice of 17 power cables and 15 plug options to customize your application
24 outlets include 12 C13 and 12 universal C39, which accepts C14 and C20 plugs
Embedded Gigabit Network Module offers market-leading cybersecurity
Toolless mounting buttons allow 0U vertical installation in your 32U or higher rack
3-year limited warranty

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	EVMIGU23A-E
Manufacturer Website Address	http://www.eaton.com
Brand Name	Eaton
Product Series	G4
Product Name	G4 24-Outlets PDU
Marketing Information	17 Removable Power Cables with 15 Different Plugs Support Universal Input This universal-input PDU (UPDU) G4 is designed to meet your most diverse rack-power needs. Fully metered with 24 outlets and sophisticated management capabilities, the EVMIGU23A-E accommodates power needs ranging from 5kVA single-phase to 23kVA three-phase. Pair the UPDU with one of 17 removable power cables with 15 different plug options (all sold separately). By delivering a broad range of power options, this UPDU alleviates the cost and complexity of mixing and matching different PDUs for different installations. It also ensures you won't outgrow your PDU as your power needs evolve. Market-Leading Cybersecurity Ensures Your Data Is Kept Safe Chain-of-trust encryption and secure firmware boot capability prevent the EVMIGU23A-E UPDU from being a cyberattack vulnerability point on a network. An embedded, hot-swappable gigabit network module (GNM) offers enhanced management and cybersecurity, including zero-trust architecture and zero-touch provisioning. The EVMIGU23A-E is compatible with select Eaton Brightlayer Data Centers suite software solutions that enable extensive automation and remote management to shorten response times to power issues and ensure timely updates for stronger cybersecurity. Remote Management Saves Time and Money The GNM with multi-color screen supports performance management software for real-time reports, trend charts, dashboards and alerts that are prioritized by severity, as well as remote troubleshooting and automated responses during power events. The EVMIGU23A-E is compatible with optional environmental sensors (sold separately) that provide alerts about temperature, humidity and dry-contact device connections. 24 Outlets Give You Plenty of Power Options The EVMIGU23A-E rack PDU (rPDU) features 12 C13 outlets, which accept C14 connectors, and 12 high-retention C39 combo outlets, which accept both C14 and C20 connectors, adding flexibility to deployments and reducing the quantity of PDUs you will need to purchase and install. Convenient Box-to-Rack Installation This UPDU G4 features toolless mounting buttons that allow front- or side-facing rack installation, depending on your rack's layout and your power needs. Choose from a collection of 17 power cables and 15 plug options (all power cables sold separately). Low-profile circuit breakers are flush with the lightweight aluminum chassis, and the narrow two-inch width saves space within the rack for revenue-generating equipment. You can cascade up to 40 EVMIGU23A-E models with each model maintaining its own individual IP address from a single network connection point.
Product Type	PDU

Technical Information

PDU Type	Metered
Plug/Connector Type	Universal Input
Receptacle Type	IEC 60320 C13
Receptacle Type	IEC 60320 C39
Receptacle Detail	12 x IEC 60309 C13
Receptacle Detail	12 x IEC 60309 C19

Power Description

Power Rating (Watt)	23 kW
Input Current	55 A

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Mounting Orientation	Vertical
Mount Type	Rack-mountable
Form Factor	Vertical
Rack Height	0U
Height	55.9" mm
Width	2.1" mm
Depth	2.6" mm

Miscellaneous

Country of Origin	Philippines
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
