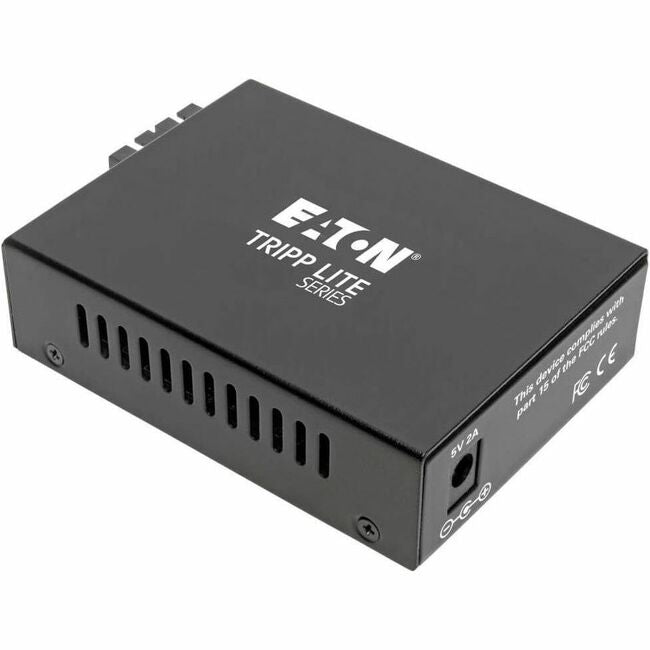

Eaton N785-INT-SC-SM Tripp Lite by Eaton Gigabit Singlemode Fiber to Ethernet Media Converter, SC, 1310 nm, 20 km (12.4 mi.)

Name: Eaton N785-INT-SC-SM Tripp Lite by Eaton Gigabit Singlemode Fiber to Ethernet Media Converter, SC, 1310 nm, 20 km (12.4 mi.)
Brand: Eaton
SKU: N785-INT-SC-SM
Price: 209.54 USD
Availability: InStock

Part Number:

N785-INT-SC-SM

137 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

137 pieces ready to ship - additional units ship in 7-10 business days.

$209.54

USD + Applicable Tax

Tripp Lite by Eaton Gigabit Singlemode Fiber to Ethernet Media Converter, SC, 1310 nm, 20 km (12.4 mi.) - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - Gigabit Ethernet - 1000Base-T, 1000Base-X

Media converter lets you extend your copper Gigabit Ethernet network connection up to 20 km (12.4 mi.) over fiber optic cable
Extends your copper Gigabit Ethernet network past the standard 100 m limit
Supports singlemode fiber optic cable with SC connectors
RJ45 jack supports auto-MDI/MDIZ to bridge various network devices
Supports both full- and half-duplex operation
Includes North America, U.K., Europe and Australia plug adapters
2-year limited warranty

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	N785-INT-SC-SM
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Model	N785-INT-SC-SM
Product Name	N785-INT-SC-SM Transceiver/Media Converter
Marketing Information	Media converter lets you extend your copper Gigabit Ethernet network connection up to 20 km (12.4 mi.) over fiber optic cable. Extend Your Gigabit Ethernet Signal up to 12.4 Miles via SC Singlemode Fiber CableThis economical unit converts a copper Ethernet signal to singlemode fiber (and vice versa) to extend a Gigabit Ethernet connection up to 12.4 miles (20 kilometers). Because Cat5e/6 cables are limited to only 100 meters, it is more effective to couple the N785-INT-SC-SM with singlemode fiber cable to reach greater distances. This could include providing network connectivity to employees in a secluded area of a facility, college or branch office or connecting multiple office workstations to a switch located in a separate building Supports Auto-Sensing of Network Speed and Other Advanced FunctionsMonitoring and controlling your network nodes is easy with the N785-INT-SC-SM's advanced features, such as automatic network speed sensing, full/half-duplex auto-detection and automatic MDI/MDIZ configuration. Six LEDs indicate the converter's Ethernet network and fiber link status at a glance Supports Singlemode Fiber Cable with SC ConnectorsTwo N785-INT-SC-SM converters are needed to extend an Ethernet network connection. Singlemode fiber optic cabling with SC ends (such as Tripp Lite's N356-Series, sold separately) connect the two converters. Copper Cat5e/6 cabling (see Tripp Lite's N201-Series, sold separately) connects one converter to your network device, such as a server, and the other converter to a network switch Completely Plug-and-Play with No Additional Software Required for ConnectionThe compact metal converter is easy to install and set up with no software or drivers required. The included power supply connects to a convenient AC outlet with no computer or other signal source needed. International plug adapters for North America (NEMA 5-15P), the United Kingdom (BS 1363), Europe (CEE 7/16 Schuko) and Australia (AS/NZS 3112) are included More from the Manufacturer
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	1
Number of SC Ports	1
SC Port Type	Duplex

Media & Performance

Media Type Supported	Optical Fiber
Media Type Supported	Twisted Pair
Fiber Mode Supported	Single-mode
Fiber Optic Cable Wavelength	1310 nm mm
Maximum Distance Supported	20 km mm

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-T
Network Technology	1000Base-X

Power Description

Power Source

Power Supply

Physical Characteristics

Height	1" mm
Width	3.7" mm
Depth	2.8" mm
Weight (Approximate)	7.05 oz g

Miscellaneous

Package Contents	N785-INT-SC-SM Transceiver/Media Converter International Power Supply (Input: 100-240V) 4 x International Plug Adapters (North America, U.K., Europe, Australia) Owner's Manual
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Country of Origin	China

Warranty

Limited Warranty

2 Year
