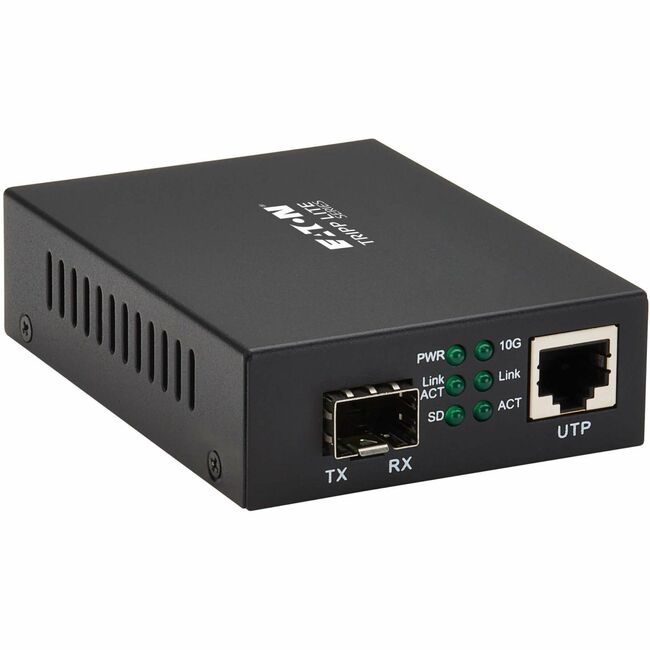

Eaton N786-001-SFP Tripp Lite series 10 Gb SFP+ to RJ45 Ethernet Media Converter - 850 nm and 1310 nm Compatible, Up to 80km

Name: Eaton N786-001-SFP Tripp Lite series 10 Gb SFP+ to RJ45 Ethernet Media Converter - 850 nm and 1310 nm Compatible, Up to 80km
Brand: Eaton
SKU: N786-001-SFP
Price: 598.0 USD
Availability: InStock

Part Number:

N786-001-SFP

212 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

212 pieces ready to ship - additional units ship in 7-10 business days.

$598.00

USD + Applicable Tax

Tripp Lite series 10 Gb SFP+ to RJ45 Ethernet Media Converter - 850 nm and 1310 nm Compatible, Up to 80km - 1 x Network (RJ-45) - Single-mode, Multi-mode - 850 nm, 1310 nm, 1300 nm Fiber - 10 Gigabit Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, Fast Ethernet - 1000Base-TX, 1000Base-FX, 1000Base-T, 2.5GBase-T, 5GBase-T, 10GBase-R, 10GBase-T - 10 Gbit/s - 80 km - 1 x Expansion Slots - SFP+ - 1 x SFP+ Slots - AC Adapter

Extends a 10 Gbps Ethernet network connection over fiber optic cable using your choice of SFP+ transceiver.
Customizable converter extends up to 10 Gbps of data via open SFP+ port up to 80 km
Automatic MDI/MDI-X configuration connects devices without crossover cabling
Quick installation supports hot-swapping of connected transceivers and network cables
Durable housing withstands operating temperature range of 0° to 55°C
2-year limited warranty

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	N786-001-SFP
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Model	N786-001-SFP
Product Name	N786-001-SFP Transceiver/Media Converter
Marketing Information	Customizes Your Network Extension over Fiber Optic Cable This network media converter works with a variety of SFP and SFP+ transceivers to convert a copper Gigabit Ethernet signal to fiber optic and extend it to a second network device. The customizable SFP port supports both singlemode and multimode transceivers, allowing your network connection to reach hubs, switches and other devices located up to 80 kilometers (50 miles) away. The N786-001-SFP is ideal for network engineers migrating toward higher-density data centers. Flexible to Fit Your Network Needs Not only does the N786-001-SFP support SFP and SFP+ transceivers, as well as DDM functionality, it also supports IEEE 802.3ab 1000Base-Tx and IEEE 802.3z 1000Base-Fx protocols. You can easily hot-swap transceivers and cabling, so no system shutdown is necessary during routine maintenance. Auto-negotiation and automatic MDI/MDI-X configuration seamlessly connect devices without crossover cabling. LEDs Indicate Installation Performance and Diagnostic Functions Easy-to-read LEDs on the side of the media converter indicate essential status information, including network speed and connection, signal diagnostics and unit power. LEDs also indicate when a copper or fiber cable has been severed or another cause of disruption in service has occurred. Protective Metal Housing Built to Withstand a Variety of Hazards The rugged metallic case is designed to operate in temperatures ranging from 0 to 55 degrees Celsius (32 to 131 degrees Fahrenheit).
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	1
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	1

Media & Performance

Media Type Supported	Twisted Pair
Media Type Supported	Optical Fiber
Fiber Mode Supported	Single-mode
Fiber Mode Supported	Multi-mode
Fiber Optic Cable Wavelength	850 nm mm
Fiber Optic Cable Wavelength	1310 nm mm
Fiber Optic Cable Wavelength	1300 nm mm
Maximum Data Transfer Rate	10 Gbit/s Bps
Maximum Distance Supported	80 km mm

I/O Expansions

Total Number of Expansion Slots	1
Expansion Slot Type	SFP+
Number of SFP+ Slots	1

Network & Communication

Ethernet Technology	10 Gigabit Ethernet
Ethernet Technology	Gigabit Ethernet
Ethernet Technology	2.5 Gigabit Ethernet
Ethernet Technology	Fast Ethernet
Network Technology	1000Base-TX
Network Technology	1000Base-FX
Network Technology	1000Base-T
Network Technology	2.5GBase-T
Network Technology	5GBase-T
Network Technology	10GBase-R
Network Technology	10GBase-T

Power Description

Power Source	AC Adapter
Power Consumption	10 W
Plug/Connector Type	NEMA 1-15P
Plug/Connector Type	BS 1363
Plug/Connector Type	AS3112

Physical Characteristics

Height	0.9" mm
Width	2.9" mm
Depth	4.3" mm
Weight (Approximate)	1.88 lb g

Miscellaneous

Package Contents	N786-001-SFP Transceiver/Media Converter External Power Supply (Input: 100-240V, 50/60 Hz, 0.35A; Output: 12V 1A) with 4.5 ft. (1.4 m) Cord 4 x International Plug Adapters (North America, Europe, U.K., Australia) Quick Start Guide
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
