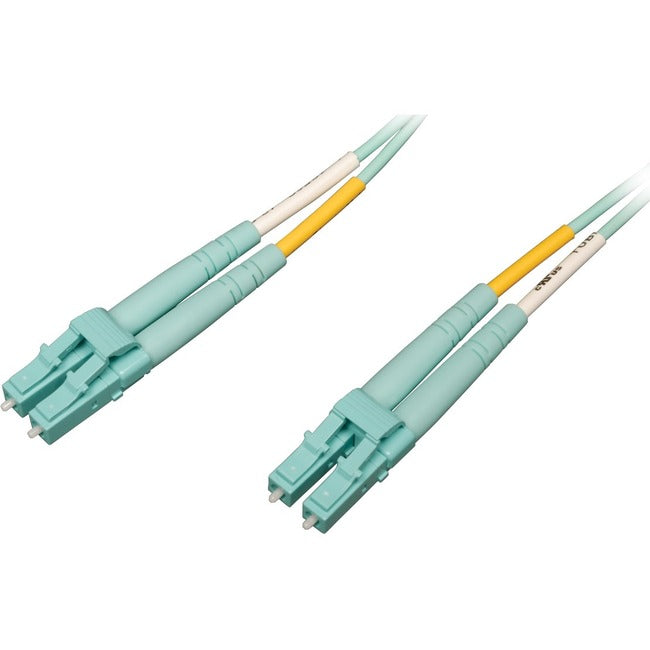

Eaton N820-25M-OM4 Tripp Lite by Eaton 100G Duplex Multimode 50/125 OM4 LSZH Fiber Optic Cable (LC/LC) Aqua 25 m

Name: Eaton N820-25M-OM4 Tripp Lite by Eaton 100G Duplex Multimode 50/125 OM4 LSZH Fiber Optic Cable (LC/LC) Aqua 25 m
Brand: Eaton
SKU: N820-25M-OM4
Price: 111.78 USD
Availability: InStock

Part Number:

N820-25M-OM4

476 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

476 pieces ready to ship - additional units ship in 7-10 business days.

$111.78

USD + Applicable Tax

Tripp Lite by Eaton 100G Duplex Multimode 50/125 OM4 LSZH Fiber Optic Cable (LC/LC) Aqua 25 m - Fiber Optic for Network Device - 12.50 GB/s - Patch Cable - 82.02 ft - 2 x LC Male Network - 2 x LC Male Network - 50/125 µm - Aqua

40/100 Gb Ethernet speed up to 300 m (@ 850 nm)
Nearly 10x the bandwidth of conventional 62.5 um multimode fiber
50/125 duplex glass fiber construction
Low-smoke zero-halogen aqua jacket
Dual male LC connectors meet insertion loss standards

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	N820-25M-OM4
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Model	N820-25M-OM4
Product Name	N820-25M-OM4 Fiber Optic Duplex Network Cable
Marketing Information	The N820-25M-OM4 10 Gb/100 Gb Duplex Multimode 50/125 OM4 LSZH Fiber Patch Cable is OM4-rated for use with 40/100 Gb Ethernet applications up to 300 meters (@ 850 nm). For fast, clear signal transmission through your local area network (LAN) or storage area network (SAN), this high-speed, low-cost cable provides three times more bandwidth than conventional 62.5 µm multimode fiber and performance rivaling that of singlemode cable. Backward compatible with existing 50/125 fiber, the aqua-colored N820-25M-OM4 is manufactured using top-quality materials. Dual male LC connectors are widely compatible and thoroughly tested to meet stringent insertion loss standards. It has 50/125 duplex (zipcord) fiber made from glass and a low-smoke zero-halogen (LSZH) jacket, which limits the amount of toxic smoke emitted in case of combustion, making this cable perfect for poorly ventilated areas. This laser-optimized multimode fiber (LOMMF) cable is ideal for LANs, SANs and high-speed parallel interconnects for head-ends, central offices and data centers. It's commonly used with vertical-cavity surface-emitting laser (VCSEL) and LED laser light sources. Complies with IEEE 802.3ae and TIA LOMMF standards. More from the Manufacturer
Product Type	Network Cable

Technical Information

Cable Type	Fiber Optic
Cable Characteristic	Patch Cable
Fiber Optic Mode	Multi-mode
Fiber Optic Cable Core/Cladding Specification	50/125 µm
Cable Length	82 ft mm
Connector Type on First End	LC Network - Male
Connector on First End Details	2 x LC Network - Male
Connector Type on Second End	LC Network - Male
Connector on Second End Details	2 x LC Network - Male
Device Supported	Network Device
Data Transfer Rate	100 Gbit/s Bps
Features	Zip Cord

Physical Characteristics

Jacket Color

Aqua

Miscellaneous

Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Country of Origin	Vietnam

Warranty

Limited Warranty

Lifetime
