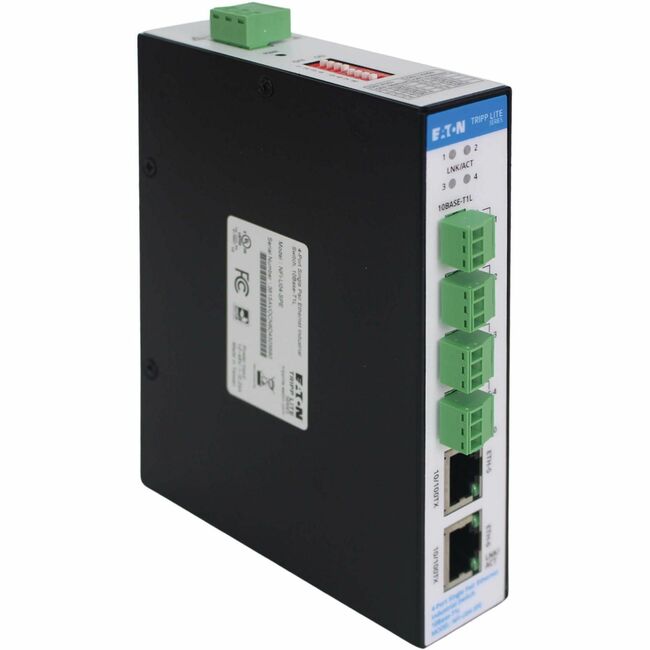

Eaton NFI-U04-SPE Ethernet switch from Tripp Lite series with multiple ports, black rectangular device on a white background.

100% Genuine

Manufacturer Warranty

Fast US Shipping

Eaton NFI-U04-SPE Tripp Lite series NFI-U04-SPE Ethernet Switch

Part Number:

NFI-U04-SPE

55 pieces ready to ship - additional units ship in 7-10 business days.
Estimated shipping in 7–10 business days.
Estimated shipping in 7–10 business days.
Ready to ship.

55 pieces ready to ship - additional units ship in 7-10 business days.

$537.30

USD + Applicable Tax
Visa
Mastercard
American Express
PayPal
Shop Pay

Tripp Lite series NFI-U04-SPE Ethernet Switch - 4 Ports - Fast Ethernet - 10/100Base-TX - 2 Layer Supported - 4 W Power Consumption - Twisted Pair - Black - DIN Rail Mountable, Desktop - TAA Compliant

  • Ethernet Switch supports network continuity by maintaining data transmission during operation
  • Cascade connections to other network devices through the uplink port to extend a local area network topology
  • Set up a basic wired network using 4 networking ports to connect multiple compatible devices efficiently
  • Layer 2 switching supports defined functions including IGMP snooping, port mirroring, and spanning tree operation
  • DIN Rail Mountable form factor supports product placement based on physical design requirements
  • Unmanaged design enables immediate wired network expansion through fixed configuration without manual intervention
  • Fast Ethernet technology supports extending network connections across defined work areas
  • Twisted pair cable support enables cost?efficient network connections for data transmission across distances
  • Available in black color to align with the visual requirements of the environment

General Information

Manufacturer Eaton Corporation
Manufacturer Part Number NFI-U04-SPE
Manufacturer Website Address http://www.eaton.com
Brand Name Tripp Lite series
Product Model NFI-U04-SPE
Product Name NFI-U04-SPE Ethernet Switch
Marketing Information

4-Port Single-Pair Ethernet (SPE) Industrial Switch - 10BASE-T1L, 10 Mbps, 1000 m, RJ45/Phoenix, -40° to 75°C, DC Power, TAA

  • 10BASE-T1L ports bridge SPE field devices to broader industrial networks
  • Dual 10/100BASE-TX uplink ports allow for flexible network integration
  • Industrial-grade metal housing with wide -40°C to 75°C operating range
  • DIN-rail or wall-mountable design for industrial control cabinets and edge deployments
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Product Type Ethernet Switch

Technical Information

Features LED Indicator

Interfaces/Ports

Total Number of Network Ports 4
Network (RJ-45) Yes
Uplink Port Yes
Port/Expansion Slot Details 4 x Gigabit Ethernet Network

Media & Performance

Media Type Supported Twisted Pair
Ethernet Technology Fast Ethernet
Network Technology 10/100Base-TX
Maximum Data Transfer Rate 12.50 MB/s Bps

Network & Communication

Layer Supported 2

Management & Protocols

Manageable No

Power Description

Input Voltage 12 V
Input Voltage 48 V
Power Consumption 4 W

Physical Characteristics

Product Color Black
Product Material Metal
Form Factor DIN Rail Mountable
Form Factor Desktop
Height 3.9" mm
Width 2" mm
Depth 4.6" mm
Weight (Approximate) 15.52 oz g

Miscellaneous

Package Contents
  • NFI-U04-SPE Ethernet Switch
  • DIN-rail Mounting Kit
  • 2 x RJ45 Rubber Inserts
  • User Documentation
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin Taiwan
TAA Compliant Yes
