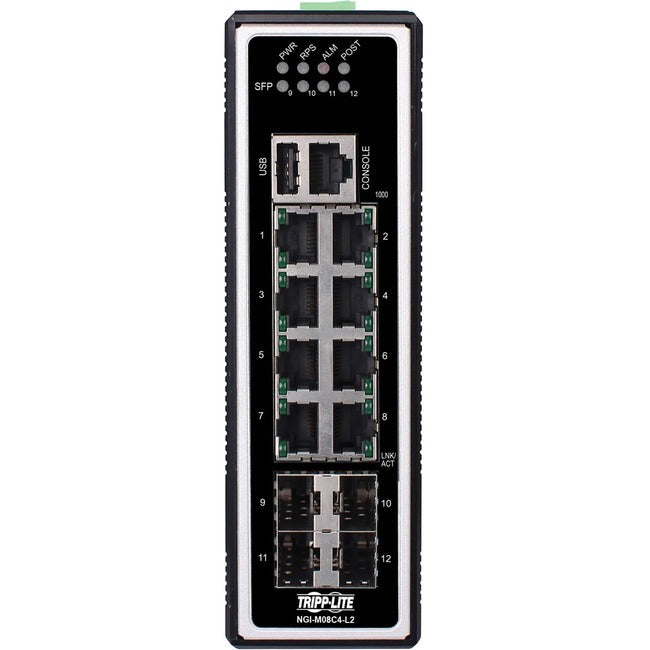

Eaton Tripp Lite Series 8-Port Managed Industrial Gigabit Ethernet Switch - Layer 2, 10/100/1000 Mbps, 4 GbE SFP Ports, -40° to 75°C, DIN Mount, TAA - 8 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 100Base-FX, 1000Base-X, 1000Base-SX/LX - TAA Compliant - 2 Layer Supported - Modular - 4 SFP Slots - 18 W Power Consumption - Optical Fiber, Twisted Pair - DIN Rail Mountable - 3 Year Limited Warranty
- 8 auto-negotiating RJ45 and 4 GbE SFP ports connect devices over a LAN
- Industrial-grade switch supports operating temperature range of -40° to 75°C
- Comes pre-loaded with Layer 2 network management software for IGMP snooping
- CLI or web management allows monitoring and control of each connected device
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 3-year limited warranty
General Information
| Manufacturer |
Eaton Corporation |
| Manufacturer Part Number |
NGI-M08C4-L2 |
| Manufacturer Website Address |
http://www.eaton.com |
| Brand Name |
Tripp Lite series |
| Product Model |
NGI-M08C4-L2 |
| Product Name |
NGI-M08C4-L2 Ethernet Switch |
| Marketing Information |
8-Port Managed Gigabit Ethernet Switch Connects Your Network Devices to a LAN
This space-saving Tripp Lite switch transmits data over a Gigabit Ethernet network. Eight auto-negotiating 10/100/1000 Mbps ports send data via Cat5e/6/6a cable only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. The NGI-M08C4-L2 also features four GbE SFP slots for uplinking data to other switches via optical fiber or copper. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. Protective Metal Housing Built to Last in Harsh Environments
The compact NGI-M08C4-L2 adds 10/100/1000 Mbps Gigabit Ethernet capacity to industrial automation, government, military, oil and gas, mining, factory and warehouse applications, as well as other environments with space constraints and wide temperature ranges. The IP30 industrial-grade aluminum case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit). Monitors and Controls Devices via CLI and Web Configuration
The NGI-M08C4-L2 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. It also supports QoS, IGMP snooping, SFP DDMI and other device management features that fulfill the needs of high-performance managed industrial networks. IEEE 802.3x flow control allows smooth transmission of large files. The switch automatically shifts unused ports to an energy-saving state without interrupting network connection. Pre-Loaded with Standard Layer 2 Network Management Software
This switch supports IGMP snooping in IPv4 to limit the flooding of multicast traffic by dynamically configuring Layer 2 interfaces. Multicast traffic is forwarded only to those interfaces associated with IP multicast devices. Works with the Most Popular Web Browsers
The NGI-M08C4-L2 is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the NGI-M08C4-L2 accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only).
|
| Product Type |
Ethernet Switch |
Interfaces/Ports
| Total Number of Network Ports |
8 |
| Network (RJ-45) |
Yes |
| Uplink Port |
Yes |
| Modular |
Yes |
| Port/Expansion Slot Details |
8 x Gigabit Ethernet Network |
| Port/Expansion Slot Details |
4 x Gigabit Ethernet Uplink |
Media & Performance
| Media Type Supported |
Optical Fiber |
| Media Type Supported |
Twisted Pair |
| Ethernet Technology |
Gigabit Ethernet |
| Network Technology |
10/100/1000Base-T |
| Network Technology |
100Base-FX |
| Network Technology |
1000Base-X |
| Network Technology |
1000Base-SX/LX |
I/O Expansions
| Total Number of Expansion Slots |
4 |
| Expansion Slot Type |
SFP (mini-GBIC) |
| Shared SFP Slot |
No |
| Number of SFP Slots |
4 |
Network & Communication
| Layer Supported |
2 |
| Networking Standards |
IEEE 802.3 |
| Networking Standards |
IEEE 802.3u |
| Networking Standards |
IEEE 802.3ab |
| Networking Standards |
IEEE 802.3z |
| Networking Standards |
IEEE 802.3x |
| Networking Standards |
IEEE 802.1p |
| Networking Standards |
IEEE 802.3az |
Management & Protocols
Power Description
| PoE (RJ-45) Port |
No |
| Power Consumption |
18 W |
| Plug/Connector Type |
Terminal Block |
Physical Characteristics
| Product Material |
Aluminum |
| Form Factor |
DIN Rail Mountable |
| Height |
6.3" mm |
| Width |
2" mm |
| Depth |
4.7" mm |
| Weight (Approximate) |
4.61 lb g |
Miscellaneous
| Package Contents |
- NGI-M08C4-L2 Ethernet Switch
- DIN Rail-mounting Clip (Pre-installed)
|
| Environmentally Friendly |
Yes |
| Environmental Compliance |
Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance |
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin |
Taiwan |
| TAA Compliant |
Yes |
Warranty
