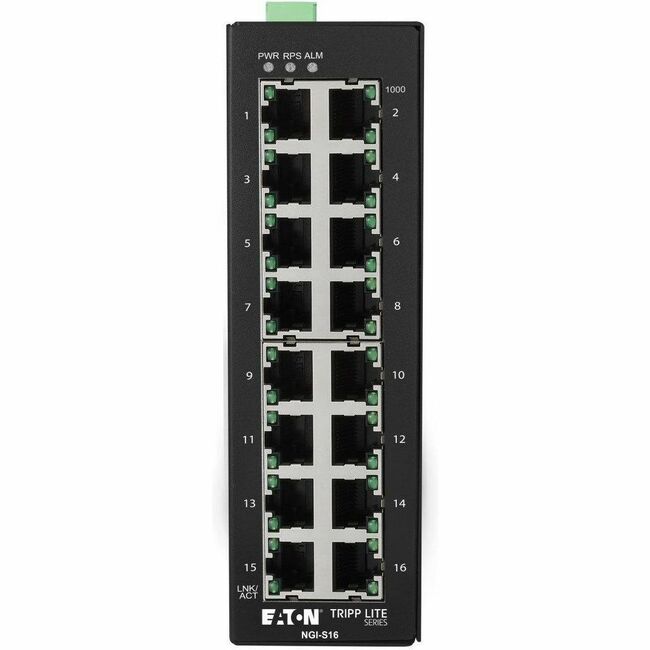

Eaton NGI-S16 Tripp Lite by Eaton 16-Port Lite Managed Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps, -10Â° to 60Â°C, DIN Mount

Name: Eaton NGI-S16 Tripp Lite by Eaton 16-Port Lite Managed Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps, -10Â° to 60Â°C, DIN Mount
Brand: Eaton
SKU: NGI-S16
Price: 786.51 USD
Availability: InStock

Part Number:

NGI-S16

65 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

65 pieces ready to ship - additional units ship in 7-10 business days.

$786.51

USD + Applicable Tax

Tripp Lite by Eaton 16-Port Lite Managed Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps, -10Â° to 60Â°C, DIN Mount - 16 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T - TAA Compliant - 2 Layer Supported - 12 W Power Consumption - Twisted Pair - DIN Rail Mountable - 3 Year Limited Warranty

Ethernet Switch supports increased network bandwidth availability through data switching
Terminal block plug or connector type supports stable power connection for Ethernet Switch usage
Expand network capacity using 16 networking ports to accommodate additional devices within an existing wired setup
Layer 2 switching supports defined functions including IGMP snooping, port mirroring, and spanning tree operation
DIN Rail Mountable form factor supports ease of placement according to installation needs
Managed capability enables configuration and monitoring functions that support structured network operation
Gigabit Ethernet supports higher uplink data rates compared to standard Ethernet server connections
Twisted pair cable support enables cost?efficient network connections for data transmission across distances

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	NGI-S16
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Model	NGI-S16
Product Name	NGI-S16 Ethernet Switch
Marketing Information	16-Port Smart Gigabit Ethernet Switch Connects Your Network Devices to a LAN This Lite Managed switch transmits data over a Gigabit Ethernet network. Sixteen auto-negotiating 10/100/1000 Mbps ports send data via Cat5e/6/6a cable only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. Protective Metal Housing Built to Last in Harsh Environments The hardened NGI-S16 adds 10/100/1000 Mbps Gigabit Ethernet capacity to industrial automation, security, government, military, oil and gas, mining and outdoor applications that demand high bandwidth convergence, as well as other environments with space constraints and wide temperature ranges. The IP30 industrial-grade aluminum case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -10 to 60 degrees Celsius (-14 to 140 degrees Fahrenheit). Manages and Monitors Devices via Innovative Lamungan Management Platform The Lite Managed switch's user-friendly cloud-based Lamungan platform helps you manage your network via web interface or mobile app. Three different features help you monitor connected devices, real-time traffic and link information. The Wizard is a set-up assistant that guides you step-by-step through initial management. The Topology Map with visual connectivity diagram displays network infrastructure and highlights link status. The Dashboard provides important performance and traffic-related information. A tri-color scheme - red (critical), yellow (alert), green (normal) - keeps you up to date on any network irregularities. Intelligent Connection Technology Ensures Plug-and-Play Operability The NGI-S16 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. It also supports QoS, IGMP snooping and other device management features that fulfill the needs of high-performance managed industrial networks. IEEE 802.3x flow control allows smooth transmission of large files. Works with the Most Popular Web Browsers The NGI-S16 is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the NGI-S16 accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only).
Product Type	Ethernet Switch

Interfaces/Ports

Total Number of Network Ports	16
Network (RJ-45)	Yes
Uplink Port	No
Port/Expansion Slot Details	16 x Gigabit Ethernet Network

Media & Performance

Media Type Supported	Twisted Pair
Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T

Network & Communication

Layer Supported	2
Networking Standards	IEEE 802.3
Networking Standards	IEEE 802.3u
Networking Standards	IEEE 802.3ab
Networking Standards	IEEE 802.3x
Networking Standards	IEEE 802.1p
Networking Standards	IEEE 802.3az

Management & Protocols

Manageable

Yes

Power Description

PoE (RJ-45) Port	No
Power Consumption	12 W
Plug/Connector Type	Terminal Block

Physical Characteristics

Product Material	Metal
Form Factor	DIN Rail Mountable
Height	6.3" mm
Width	2" mm
Depth	4.7" mm
Weight (Approximate)	2.01 lb g

Miscellaneous

Package Contents	NGI-S16 Ethernet Switch DIN Rail-mounting Clip (Pre-installed)
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Country of Origin	Taiwan
TAA Compliant	Yes

Warranty

Limited Warranty

3 Year
