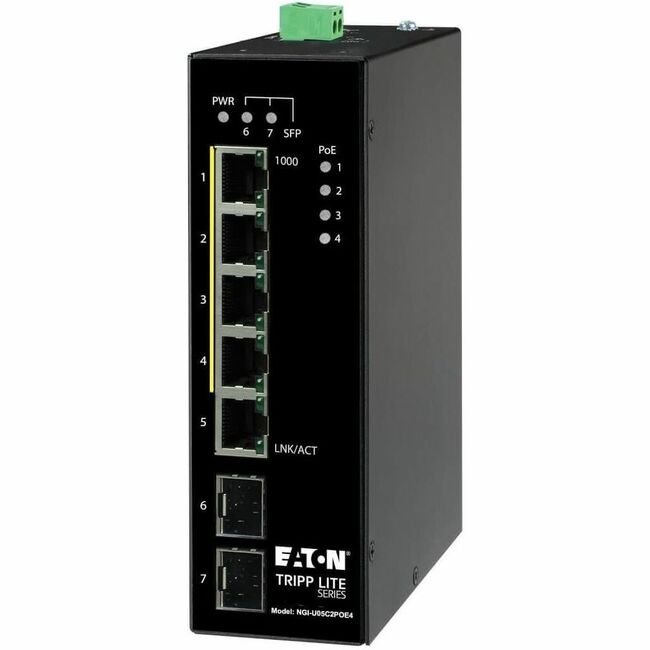

Eaton Tripp Lite Series 5-Port Unmanaged Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps, PoE+ 30W, -10° to 60°C, 2 GbE SFP Slots, DIN Mount, TAA - 5 Ports - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - TAA Compliant - 2 Layer Supported - Modular - 2 SFP Slots - 14 W Power Consumption - 120 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - DIN Rail Mountable - 3 Year Limited Warranty
- 5 auto-negotiable RJ45 and 2 GbE SFP ports connect devices over a LAN
- 4 PoE+ ports deliver up to 30W each with a 120W total PoE budget
- Industrial-grade switch supports operating temperature range of 14° to 140°F
- Plug-and-play operation with no software or configuration required before use
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
General Information
| Manufacturer |
Eaton Corporation |
| Manufacturer Part Number |
NGI-U05C2POE4 |
| Manufacturer Website Address |
http://www.eaton.com |
| Brand Name |
Tripp Lite series |
| Product Model |
NGI-U05C2POE4 |
| Product Name |
NGI-U05C2POE4 Ethernet Switch |
| Marketing Information |
Industrial-grade switch expands Ethernet connectivity to factory floors and other environments with space constraints and wide temperature ranges.
Features | 5-Port Unmanaged Ethernet Switch Connects Your Devices to a LAN
This space-saving Tripp Lite Power over Ethernet (PoE) switch transmits both power and data over a Gigabit Ethernet network. Five auto-negotiating 10/100/1000 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. The NGIU05C2POE4 also features two GbE SFP slots for uplinking data to other switches via optical fiber or copper.
PoE+ Ports Deliver Power to Devices Without Access to AC Outlets
This unmanaged switch features four PoE ports capable of powering compatible devices, such as cameras, sensors, clocks, digital signage and wireless access points, without the need to run separate power lines or install the devices near an AC outlet. The NGI-U05C2POE4 provides PoE+ compatibility up to 30W per PoE port and a PoE budget of 120W.
Ruggedized Metal Housing Built to Last in Harsh Environments
The compact NGI-U05C2POE4 adds 10/100/1000 Mbps Gigabit Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from 14 degrees to 140 degrees Fahrenheit.
Unmanaged Switch Requires Little to No Configuration
Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NGI-U05C2POE4 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files.
Pre-Installed DIN Rail Clip Allows for Convenient Installation
The device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. Providing seamless operation in the event of power dips or failures, the switch features a 2- pin 24-57VDC terminal block power input to help prevent unnecessary downtime. Device power must be supplied by SELV circuit.
TAA-Compliant for GSA Schedule Purchases
The NGI-U05C2POE4 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. |
| Product Type |
Ethernet Switch |
Interfaces/Ports
| Total Number of Network Ports |
5 |
| Network (RJ-45) |
Yes |
| Uplink Port |
Yes |
| Modular |
Yes |
| Port/Expansion Slot Details |
4 x Gigabit Ethernet PoE+ |
| Port/Expansion Slot Details |
1 x Gigabit Ethernet Network |
| Port/Expansion Slot Details |
2 x Gigabit Ethernet Expansion Slot |
Media & Performance
| Media Type Supported |
Twisted Pair |
| Media Type Supported |
Optical Fiber |
| Ethernet Technology |
Gigabit Ethernet |
| Network Technology |
10/100/1000Base-T |
| Network Technology |
1000Base-X |
I/O Expansions
| Total Number of Expansion Slots |
2 |
| Expansion Slot Type |
SFP (mini-GBIC) |
| Number of SFP Slots |
2 |
Network & Communication
| Layer Supported |
2 |
| Networking Standards |
IEEE 802.3 |
| Networking Standards |
IEEE 802.3u |
| Networking Standards |
IEEE 802.3x |
| Networking Standards |
IEEE 802.3at |
| Networking Standards |
IEEE 802.3ab |
| Networking Standards |
IEEE 802.3z |
| Networking Standards |
IEEE 802.1p |
| Networking Standards |
IEEE 802.3af |
Management & Protocols
Power Description
| PoE (RJ-45) Port |
Yes |
| PoE Budget |
120 W |
| Power Consumption |
14 W |
Physical Characteristics
| Product Material |
Metal |
| Form Factor |
DIN Rail Mountable |
| Height |
6.3" mm |
| Width |
2" mm |
| Depth |
4.7" mm |
| Weight (Approximate) |
1.90 lb g |
Miscellaneous
| Package Contents |
- NGI-U05C2POE4 Ethernet Switch
- DIN Rail-mounting Clip
- Owner's Manual
|
| Environmentally Friendly |
Yes |
| Environmental Compliance |
Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance |
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin |
Taiwan |
| TAA Compliant |
Yes |
Warranty
