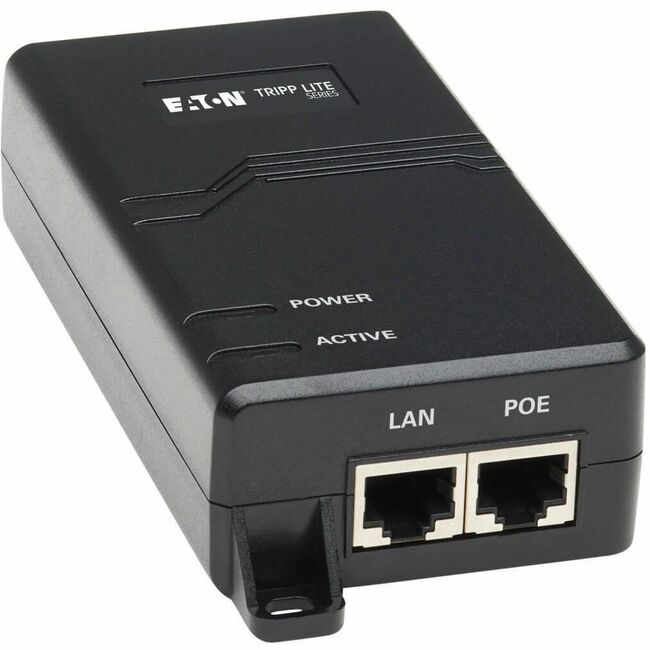

Eaton NPOE-30W-1G Tripp Lite by Eaton Gigabit PoE+ Midspan Active Injector - IEEE 802.3at/802.3af 30W 1 Port

Name: Eaton NPOE-30W-1G Tripp Lite by Eaton Gigabit PoE+ Midspan Active Injector - IEEE 802.3at/802.3af 30W 1 Port
Brand: Eaton
SKU: NPOE-30W-1G
Price: 80.59 USD
Availability: InStock

Part Number:

NPOE-30W-1G

4774 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

4774 pieces ready to ship - additional units ship in 7-10 business days.

$80.59

USD + Applicable Tax

Tripp Lite by Eaton Gigabit PoE+ Midspan Active Injector - IEEE 802.3at/802.3af 30W 1 Port - 120 V AC, 230 V AC Input - Ethernet Input Port(s) - Ethernet Output Port(s) - Surface-mountable - Black

PoE+ injector uses existing Cat5e/6/6a cable to supply power to a PoE device connected to a non-PoE switch.
Saves money by delivering 30W of power + data up to 328 ft. through existing cabling
Extends power + data to any PoE or PoE+ device installed where no AC outlet is available
Supports Gigabit Ethernet data transfer speeds up to 1000 Mbps
Quick and easy plug-and-play installation with no configuration necessary
Compact, hand-sized plastic housing ready for mounting on any smooth surface

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	NPOE-30W-1G
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Model	NPOE-30W-1G
Product Name	NPOE-30W-1G PoE Injector
Marketing Information	Adds PoE Devices to Your LAN Without a PoE Switch Now you can add a surveillance camera, wireless access point, VoIP phone or other PoE (Power over Ethernet) device to your home or office network, even if your network switch doesn't support PoE. Instead of making an expensive upgrade to a PoE switch, you can use this single-port PoE+ injector to send 30 watts of power, as well as Gigabit Ethernet data, through your existing Cat5e/6/6a cabling. Saves You Time and Money on Unnecessary Equipment Updates This compact PoE plus injector delivers 10/100/1000 Mbps of data and up to 30 watts of power using existing Cat5e/6/6a cables. That means, in addition to not buying a new PoE network switch, you also don't need to install new AC power lines and electrical outlets. This cost-effective midspan injector sends DC power and Ethernet data through your Ethernet cable, cutting down on cable clutter, equipment costs and installation time and labor. Expand Your Wireless Network Up to 328 ft. The NPOE-30W-1G delivers both power and data to any IEEE 802.3at (PoE+) or IEEE 802.3af (PoE) device up to 100 meters (328 feet) away. This allows you to install a device in a building lobby, on a ceiling, inside a warehouse or anywhere else an AC power outlet is unavailable. The PoE+ injector supports full-duplex 2 Gbps communication for sending and receiving data simultaneously. It also protects your device against short circuits, overloads and power surges. Simple Plug-and-Play Installation Has Your Device Connected in Minutes No configuration or software is required to add the NPOE-30W-1G to your LAN. Just connect your switch or network jack to the shielded RJ45 Data port and your PoE device to the shielded RJ45 Power + Data port using existing Cat5e/6/6a cable. Connect the unit's C14 inlet to a NEMA 5-15R outlet using the included power cord. LEDs indicate the unit is receiving power and is ready to transmit data. Designed for Installation Almost Anywhere Mounting holes are featured for installing the midspan injector on a shelf, desktop, wall or any other smooth surface with user-supplied hardware. The black plastic housing fits in the palm of your hand, so it is small enough to hide away without interfering with your workflow or décor. The fanless design is ideal for silent operation. 3-Year Warranty and Environmentally Responsible Design The NPOE-30W-1G comes with a 3-year warranty. It's manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite's commitment to environmental responsibility. More from the Manufacturer
Product Type	PoE Injector

Power Description

Input Voltage	120 V AC
Input Voltage	230 V AC

Interfaces/Ports

Input Ports	Ethernet
Output Ports	Ethernet

Physical Characteristics

Color Family	Black
Product Color	Black
Form Factor	Desktop
Mount Type	Surface-mountable

Miscellaneous

Package Contents	NPOE-30W-1G PoE Injector Detachable C13 to NEMA 5-15P power cord, 6 ft. Owner's manual Green Initiatives
Certifications & Standards	CE FCC UL IEEE Standards Supported 803.3 802.3ab 802.3af 802.3at 802.3u
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin	China

Warranty

Limited Warranty

3 Year
