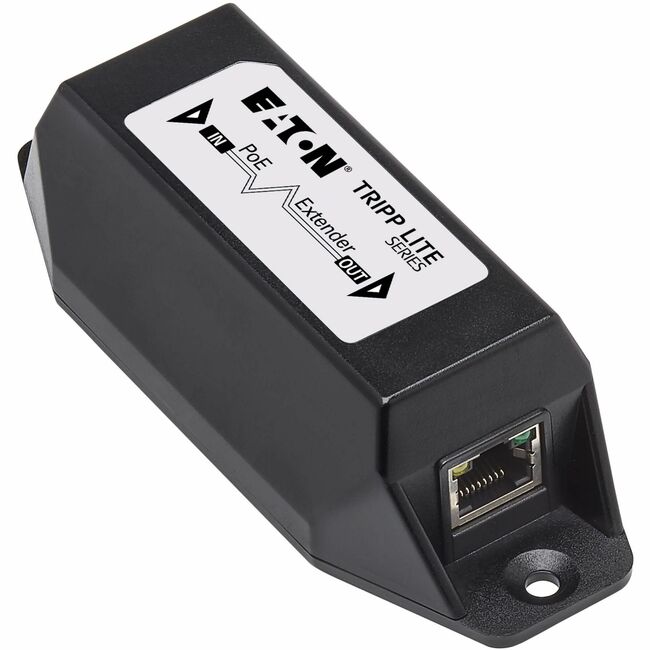

Eaton NPOE-EXT-1G30 Tripp Lite Series 1-Port Gigabit Ethernet PoE+ Extender/Repeater - Cat5e/6/6a, 30W, 328 ft. (100 m)

Name: Eaton NPOE-EXT-1G30 Tripp Lite Series 1-Port Gigabit Ethernet PoE+ Extender/Repeater - Cat5e/6/6a, 30W, 328 ft. (100 m)
Brand: Eaton
SKU: NPOE-EXT-1G30
Price: 171.26 USD
Availability: InStock

Part Number:

NPOE-EXT-1G30

209 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

209 pieces ready to ship - additional units ship in 7-10 business days.

$171.26

USD + Applicable Tax

Eaton Tripp Lite Series 1-Port Gigabit Ethernet PoE+ Extender/Repeater - Cat5e/6/6a, 30W, 328 ft. (100 m) - 2 x Network (RJ-45) - 328.08 ft Extended Range - Plastic - Black

Saves money by delivering 30W of power + data up to 328 ft. through existing cabling
Cascade up to 4 extenders to extend PoE connection up to 1,640 ft. total
Extends power + data to any PoE or PoE+ device installed where no AC outlet is available ?
Supports Gigabit Ethernet data transfer speeds up to 1000 Mbps (1 Gbps)
Quick and easy plug-and-play installation with no configuration necessary

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	NPOE-EXT-1G30
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Model	NPOE-EXT-1G30
Product Name	NPOE-EXT-1G30 Network Extender
Marketing Information	Gigabit Extender Lets You Cascade Your Existing PoE/PoE+ Connection up to 500 Meters This single-port connector allows you to extend the connection between your powered source device, such as a PoE (Power over Ethernet) switch, and a remote PoE device an extra 328 feet (100 meters). In addition, by cascading as many as four NPOE-EXT-1G30 extenders, you can extend that connection as far as 1,640 feet (500 meters) total. Just connect the extender between two sections of Cat5e/6/6a cable up to 328 feet each. Saves You Time and Money on Unnecessary Equipment Updates The compact PoE/PoE+ extender delivers 10/100/1000 Mbps of data and up to 30 watts of power using existing Cat5e/6/6a cables, eliminating the need to install new AC power lines and electrical outlets. This cost-effective extender sends DC power and Ethernet data through your Ethernet cable, cutting down on cable clutter, equipment costs and installation time and labor. It also automatically detects PoE/PoE+ equipment and protects it from being damaged by incorrect installation. Supports Power over Ethernet to Save You Money and Give You More Installation Choices Because this extender supports PoE, it can supply the power to operate compatible IEEE 802.3at/af PoE devices, such as security cameras, VoIP telephones, point-of-sale kiosks and access control devices. This saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings. It supports half/full-duplex 1 Gbps communication for sending and receiving data simultaneously, and protects your PoE device against short circuits and overloads. Simple Plug-and-Play Installation Has Your Device Connected in Minutes No configuration or software is required to add the NPOE-EXT-1G30 to your LAN. Just connect your switch or network jack and your PoE/PoE+ device to the shielded RJ45 Power + Data ports using existing Cat5e/6/6a cable. LEDs indicate the unit is receiving power and is ready to transmit data. Designed for Installation Almost Anywhere Mounting holes are featured for installing the extender on a shelf, desktop, wall or any other smooth surface with user-supplied hardware. The black plastic housing fits in the palm of your hand, so it is small enough to hide away without interfering with your workflow or décor. The fanless design is ideal for silent operation. More from the Manufacturer
Product Type	Network Extender

Technical Information

Maximum Extended Range	328.08 ft mm
Maximum Data Transfer Rate	128 MB/s Bps

Interfaces/Ports

Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	2

Physical Characteristics

Color Family	Black
Product Color	Black
Product Material	Plastic

Miscellaneous

Package Contents	NPOE-EXT-1G30 Network Extender Owner's manual
Country of Origin	China
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty

Limited Warranty

3 Year
