Eaton PDUMH20HV Tripp Lite by Eaton PDU 3.7kW Single-Phase Local Metered PDU 208/230V (8 C13 & 2 C19) C20 / L6-20P Adapter 12 ft. (3.66 m) Cord 1U Rack-Mount TAA

Name: Eaton PDUMH20HV Tripp Lite by Eaton PDU 3.7kW Single-Phase Local Metered PDU 208/230V (8 C13 & 2 C19) C20 / L6-20P Adapter 12 ft. (3.66 m) Cord 1U Rack-Mount TAA
Brand: Eaton
SKU: PDUMH20HV
Price: 338.56 USD
Availability: InStock

Part Number:

PDUMH20HV

569 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

569 pieces ready to ship - additional units ship in 7-10 business days.

$338.56

USD + Applicable Tax

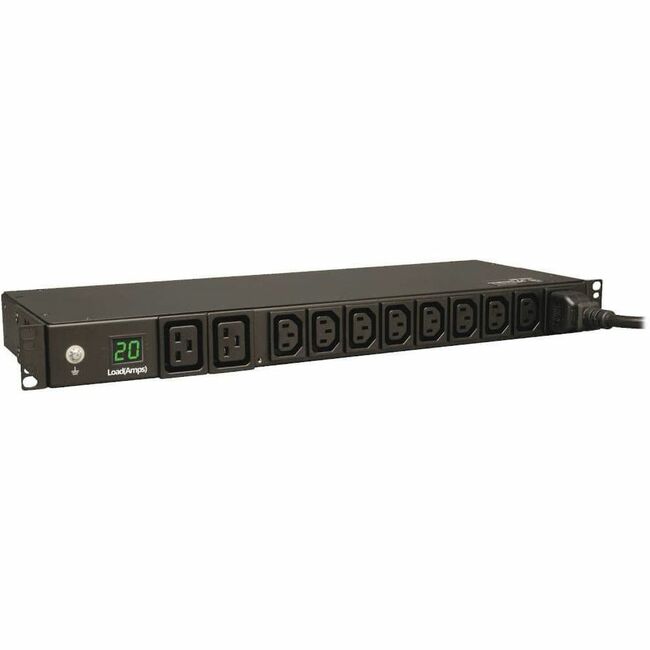

Tripp Lite by Eaton PDU 3.7kW Single-Phase Local Metered PDU 208/230V (8 C13 & 2 C19) C20 / L6-20P Adapter 12 ft. (3.66 m) Cord 1U Rack-Mount TAA - 1UHorizontal Rackmount

Metered single phase 16/20A 200-240V PDU
1U horizontal rackmount; Digital current meter
C20 input with L6-20P plug adapter; 12 ft. / 3.7m line cord
10 total outlets (8 C13, 2 C19)

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	PDUMH20HV
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Series	Metered
Product Model	PDUMH20HV
Product Name	Metered PDUMH20HV 10-Outlets PDU
Marketing Information	PDUMH20HV Metered, 1U rack PDU supports 20A maximum capacity at 208/240 & 230V (agency de-rated to 16 amps). Includes C20 inlet and detachable input cable with both C20 and L6-20P input plug options. 10 total output receptacles (8 C13 and 2 C19). Visual current meter tracks the output current of all outlets combined. Supports 1U rackmount installation in 19 inch 2 or 4 post racks. Included cord retention bracket keeps vital network equipment plugged in and continuously powered. More from the Manufacturer
Product Type	PDU

Technical Information

Plug/Connector Type	IEC 60320 C20
Plug/Connector Type	NEMA L6-20P
Receptacle Type	IEC 60320 C19
Receptacle Type	IEC 60320 C13
Receptacle Detail	2 x IEC 60320 C19
Receptacle Detail	8 x IEC 60320 C13
Protection Type	Overload Protection

Power Description

Input Voltage	230 V AC
Input Voltage Range	200 V AC - 240 V AC
Output Voltage	208 V AC
Output Voltage	230 V AC
Output Voltage	240 V AC

Physical Characteristics

Mounting Orientation	Horizontal
Mount Type	Rack-mountable
Rack Height	1U
Height	1.8" mm
Width	17.5" mm
Depth	6.5" mm
Weight (Approximate)	6.80 lb g

Miscellaneous

Package Contents	Metered PDUMH20HV 10-Outlets PDU Rackmount Brackets Cord Retention Brackets
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
