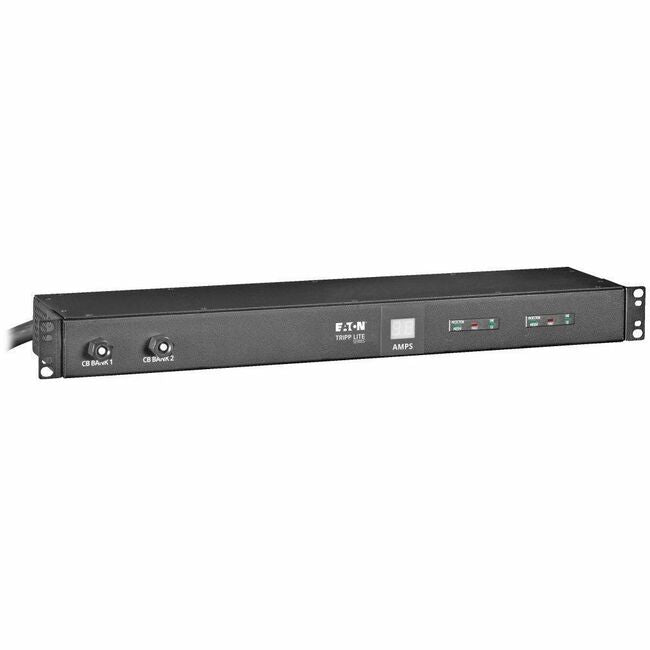

Eaton PDUMH30-ISO Tripp Lite Series 2.9kW Single-Phase Local Metered PDU with ISOBAR Surge Protection, 120V, 3840 Joules, 12 NEMA 5-15/20R Outlets, L5-30P Input, 15 ft. Cord, 1U Rack-Mount

Name: Eaton PDUMH30-ISO Tripp Lite Series 2.9kW Single-Phase Local Metered PDU with ISOBAR Surge Protection, 120V, 3840 Joules, 12 NEMA 5-15/20R Outlets, L5-30P Input, 15 ft. Cord, 1U Rack-Mount
Brand: Eaton
SKU: PDUMH30-ISO
Price: 536.4 USD
Availability: InStock

Part Number:

PDUMH30-ISO

4 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

4 pieces ready to ship - additional units ship in 7-10 business days.

$536.40

USD + Applicable Tax

Eaton Tripp Lite Series 2.9kW Single-Phase Local Metered PDU with ISOBAR Surge Protection, 120V, 3840 Joules, 12 NEMA 5-15/20R Outlets, L5-30P Input, 15 ft. Cord, 1U Rack-Mount - NEMA L5-30P - 12 x NEMA 5-15/20R - 120 V AC - 0U/1U - Horizontal/Vertical - Wall-mountable - Rack

Ideal metered PDU for telecom, security, A/V and other small network applications
Digital ammeter for on-site load monitoring helps prevent power overloads
3840 joules protect your valuable electronics against dangerous surges and spikes
12 NEMA 5-15/20R outlets distribute AC power to connected equipment
Flexible installation options include 1U and 0U rack, under counter and on wall

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	PDUMH30-ISO
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Model	PDUMH30-ISO
Product Name	PDUMH30-ISO 12-Outlets PDU
Marketing Information	Delivers 120V single-phase AC power to multiple loads while also protecting connected equipment from dangerous surges and spikes. Features \| Single-Phase 120V PDU Distributes and Monitors Network-Grade Power to Multiple Loads This local metered PDU is an ideal unit for telecom, security, audio/video and a wide variety of general portable and stationary rack-mount applications. Recommended for network-grade IT environments, the PDUMH30-ISO provides real-time monitoring of load levels via its built-in digital current metering. A 15- foot (4.6-meter) cord with L5-30P input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads. Digital Load Meter Helps Prevent Potentially Expensive Overloads The PDUMH30-ISO features 12 NEMA 5-15/20R outlets in two separately breakered load banks. A digital ammeter reports the load for each bank separately, so you can balance loads across both built-in 20A breakers. Add the two load-bank current values together to determine total input current. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels can keep your TCO (total cost of ownership) low. 3840 Joules per Load Bank Fight Back Against Unexpected Power Surges Protecting your valuable electronics is ISOBAR® network-grade AC surge and noise suppression.A 3840-joule surge protection rating defends your sensitive electronic components against even the strongest power surges, spikes and line noise. The PDUMH30-ISO covers full normal (H-N) and common (N-G/H-G) protection modes. A green LED confirms your connected equipment is protected. Up-to-Date Safety Features Protect Your Vital Equipment The switchless design helps prevent an accidental shutdown, which could lead to costly downtime. Circuit breakers protect connected components from dangerous overloads. Versatile Installation Options Give You Plenty of Choices The reversible all-metal housing comes with mounting brackets for installation in 1U of space or 0U vertical mounting in an EIA-standard 19-inch rack. You can also reorient the brackets for permanent mounting under a counter or on a wall with user-supplied hardware.
Product Type	PDU

Technical Information

PDU Type	Metered
Phase	Single Phase
Plug/Connector Type	NEMA L5-30P
Receptacle Type	NEMA 5-15/20R
Receptacle Detail	12 x NEMA 5-15/20R
Protection Type	Surge Protection
Protection Type	Overload Protection

Power Description

Input Voltage	120 V AC
Output Voltage	120 V AC
Power Rating (Watt)	2900 W
Input Current	30 A

Physical Characteristics

Color Family	Black
Product Color	Black
Mounting Orientation	Horizontal/Vertical
Mount Type	Wall-mountable
Form Factor	Rack
Rack Height	0U/1U
Height	18.9" mm
Width	4.8" mm
Depth	1.7" mm
Weight (Approximate)	8.82 lb g

Miscellaneous

Package Contents	PDUMH30-ISO 12-Outlets PDU Rack-mounting hardware Owner's manual
Country of Origin	Taiwan
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
