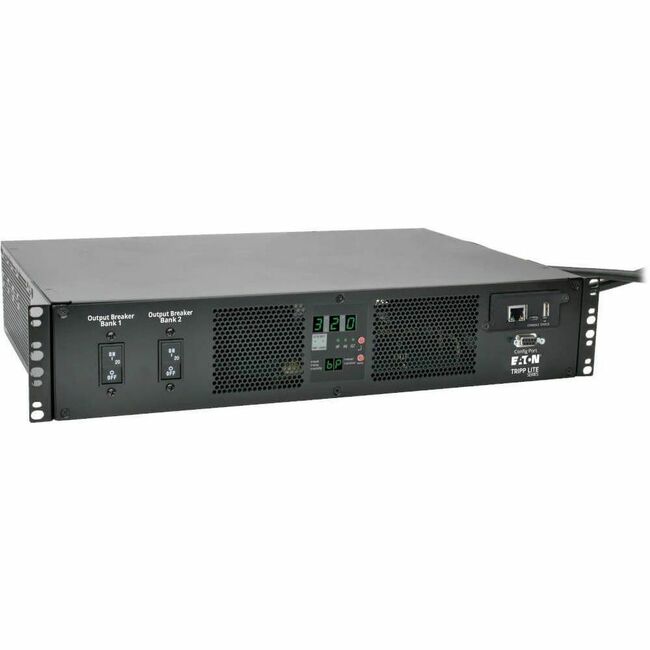

Eaton PDUMH32HVATNET Tripp Lite by Eaton PDU 7.7kW Single-Phase Switched Automatic Transfer Switch PDU Two 200-240V IEC309 32A Blue Inputs 16-C13 2-C19 Outlets 2U TAA

100% Genuine

Manufacturer Warranty

Fast US Shipping

Eaton PDUMH32HVATNET Tripp Lite by Eaton PDU 7.7kW Single-Phase Switched Automatic Transfer Switch PDU Two 200-240V IEC309 32A Blue Inputs 16-C13 2-C19 Outlets 2U TAA

Part Number:

PDUMH32HVATNET

74 pieces ready to ship - additional units ship in 7-10 business days.
Estimated shipping in 7–10 business days.
Estimated shipping in 7–10 business days.
Ready to ship.

74 pieces ready to ship - additional units ship in 7-10 business days.

$1,851.96

USD + Applicable Tax
Visa
Mastercard
American Express
PayPal
Shop Pay

Tripp Lite by Eaton PDU 7.7kW Single-Phase Switched Automatic Transfer Switch PDU Two 200-240V IEC309 32A Blue Inputs 16-C13 2-C19 Outlets 2U TAA - IEC 60309 32A BLUE (2P+E) - 16 x IEC 60320 C13, 2 x IEC 60320 C19 - 230 V AC - 7.40 kVA - 1U/2U - Horizontal Rackmount

  • Single-phase IEC309 32A Blue (2P+E) input and 230V output
  • 16 C13 and 2 C19 switched outlets in 2 load banks
  • Automatic transfer switching within 1-5 ms
  • Ethernet network interface for remote access
  • Digital LED display for real-time status monitoring

General Information

Manufacturer Eaton Corporation
Manufacturer Part Number PDUMH32HVATNET
Manufacturer Website Address http://www.eaton.com
Brand Name Tripp Lite series
Product Series Switched
Product Model PDUMH32HVATNET
Product Name PDUMH32HVATNET 7.4kW Single-Phase 230V ATS/Switched PDU
Marketing Information The PDUMH32HVATNET 7.4kW Single-Phase 230V ATS/Switched PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 2U of space in EIA-standard racks and features 18 switched outlets(16 C13 and two C19) in two load banks, each bank protected by a 20A circuit breaker.

Dual 3-meter input cords with IEC309 32A Blue(2P+E) plugs connect to separate primary and secondary single-phase 230V power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state(TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.

Built-in Ethernet network interface allows remote access to the PDU for power monitoring, configuration, control and notifications via web browser, SSH, telnet or SNMP. Provides real-time load/current data with billing-grade accuracy(+/- 1 percent). Supports user-programmable startup of outlets in any order or interval to ensure network items are turned on in the proper sequence and reliably discovered. Digital LED display indicates power availability, voltage, source A/B input status, output load and power factor, as well as temperature and humidity with the optional ENVIROSENSE module(sold separately).

More from the Manufacturer
Product Type PDU

Technical Information

PDU Type Switched
Plug/Connector Type IEC 60309 32A Blue (2P+E)
Plug/Connector Detail 2 x IEC 60309 32A BLUE (2P+E)
Receptacle Type IEC 60320 C13
Receptacle Type IEC 60320 C19
Receptacle Detail 16 x IEC 60320 C13
Receptacle Detail 2 x IEC 60320 C19
Protection Type Overload Protection

Power Description

Input Voltage 230 V AC
Output Voltage 230 V AC
Power Rating (Watt) 7400 W
Input Current 32 A

Management

Management
  • HTTP
  • HTTPS
  • PowerAlert
  • SMTP
  • SNMPv1
  • SNMPv2
  • SNMPv3
  • Telnet
  • SSH
  • FTP
  • DHCP
  • BOOTP and NTP

Physical Characteristics

Mounting Orientation Horizontal
Mount Type Rack-mountable
Rack Height 1U/2U
Height 3.5" mm
Width 17.5" mm
Depth 12.5" mm
Weight (Approximate) 13.70 lb g

Miscellaneous

Package Contents
  • PDUMH32HVATNET 7.4kW Single-Phase 230V ATS/Switched PDU
  • Rack-mounting brackets
  • Cord retention brackets
  • Cable ties
  • Owner's manual
Country of Origin Taiwan
TAA Compliant Yes
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty 2 Year
