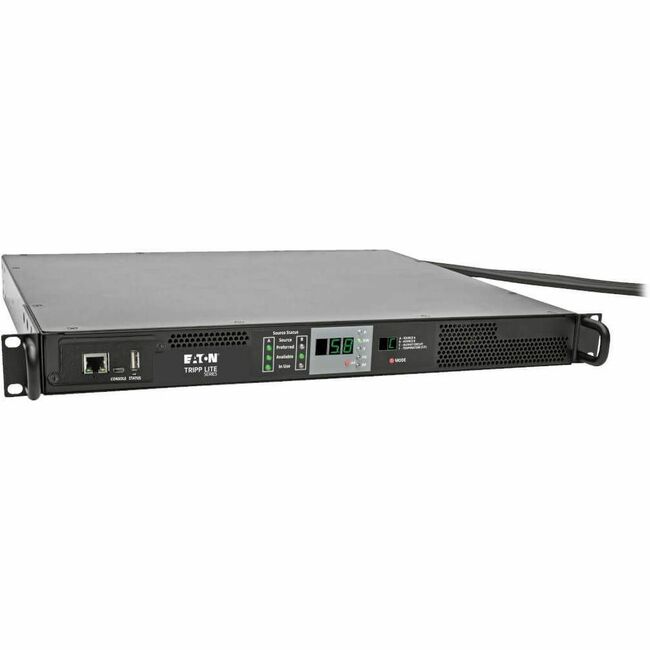

Eaton Tripp Lite PDU with monitored automatic transfer switch, 30A, 200-240V, single-phase, 1U rack-mount unit

100% Genuine

Manufacturer Warranty

Fast US Shipping

Eaton PDUMNH30HVAT Tripp Lite by Eaton PDU 5.8kW Single-Phase Monitored Automatic Transfer Switch PDU 2 200-240V 30A L6-30P Inputs 1 L6-30R Outlet 1U

Part Number:

PDUMNH30HVAT

72 pieces ready to ship - additional units ship in 7-10 business days.
Estimated shipping in 7–10 business days.
Estimated shipping in 7–10 business days.
Ready to ship.

72 pieces ready to ship - additional units ship in 7-10 business days.

$1,767.99

USD + Applicable Tax
Visa
Mastercard
American Express
PayPal
Shop Pay

Tripp Lite by Eaton PDU 5.8kW Single-Phase Monitored Automatic Transfer Switch PDU 2 200-240V 30A L6-30P Inputs 1 L6-30R Outlet 1U - NEMA L6-30P - 1 x NEMA L6-30R - 230 V AC - 1URack-mountable

  • Two single-phase L6-30P inputs with 10 ft. cords
  • L6-30R outlet for connecting single device or 0U vertical PDU
  • Automatic transfer switching within 1-5 ms
  • Built-in LX Platform Network Interface
  • Digital LED display for real-time status monitoring

General Information

Manufacturer Eaton Corporation
Manufacturer Part Number PDUMNH30HVAT
Manufacturer Website Address http://www.eaton.com
Brand Name Tripp Lite series
Product Series Monitored
Product Model PDUMNH30HVAT
Product Name PDUMNH30HVAT 5.8kW Single-Phase 208/240V ATS/Monitored PDU
Marketing Information The PDUMNH30HVAT 5.8kW Single-Phase 208/240V ATS/Monitored PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 1U of space in EIA-standard 19-inch racks and features one L6-30R outlet-perfect for connecting a single device or a 0U 208/240V PDU with an L6-30P plug.
Dual 10-foot input cords with L6-30P plugs connect to separate primary and secondary single-phase power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.
Built-in LX Platform network management interface card. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Automated alerts help prevent accidental overloads, power loss and downtime. Digital display indicates power availability, voltage, source A/B input status, output load and power factor, as well as temperature and humidity conditions with the optional ENVIROSENSE module (sold separately).

More from the Manufacturer
Product Type PDU

Technical Information

PDU Type Monitored
Phase Single Phase
Plug/Connector Type NEMA L6-30P
Plug/Connector Detail 2 x NEMA L6-30P
Receptacle Type NEMA L6-30R
Receptacle Detail 1 x NEMA L6-30R

Power Description

Input Voltage 230 V AC
Output Voltage 230 V AC
Power Rating (Watt) 5800 W
Input Current 30 A

Management

Management Protocols:
  • HTTP
  • HTTPS
  • SMTP
  • SNMPv1
  • SNMPv2
  • SNMPv3
  • Telnet
  • SSH
  • FTP
  • DHCP
  • BOOTP
  • NTP

Physical Characteristics

Mount Type Rack-mountable
Rack Height 1U
Height 1.7" mm
Width 16.9" mm
Depth 14" mm
Weight (Approximate) 15.37 lb g

Miscellaneous

Package Contents
  • PDUMNH30HVAT 5.8kW Single-Phase 208/240V ATS/Monitored PDU
  • Rack-Mounting Brackets
  • Owner's Manual
Country of Origin China
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty 2 Year
