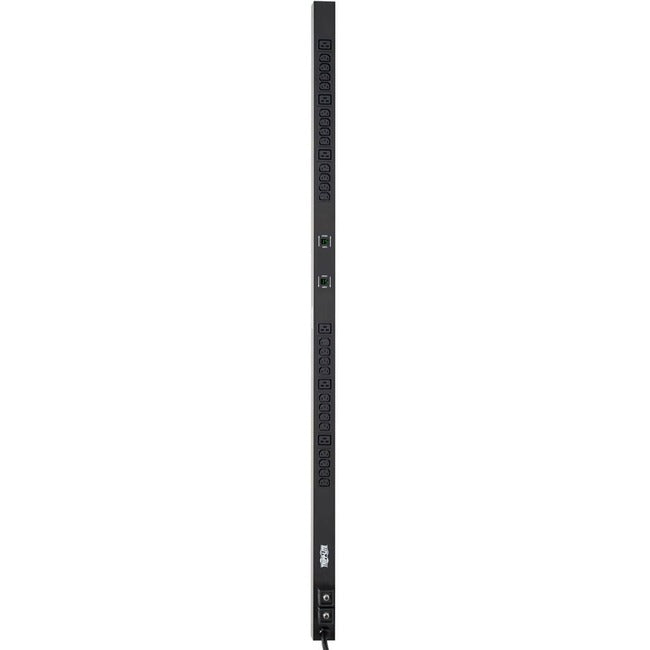

Eaton PDUMV30HV Tripp Lite by Eaton PDU 5.5kW Single-Phase Local Metered PDU 208/230V Outlets (6-C19 & 24-C13) L6-30P 10 ft. (3.05 m) Cord 0U Vertical

Name: Eaton PDUMV30HV Tripp Lite by Eaton PDU 5.5kW Single-Phase Local Metered PDU 208/230V Outlets (6-C19 & 24-C13) L6-30P 10 ft. (3.05 m) Cord 0U Vertical
Brand: Eaton
SKU: PDUMV30HV
Price: 572.4 USD
Availability: OutOfStock

Part Number:

PDUMV30HV

0 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

Estimated shipping in 7–10 business days.

$572.40

USD + Applicable Tax

Tripp Lite by Eaton PDU 5.5kW Single-Phase Local Metered PDU 208/230V Outlets (6-C19 & 24-C13) L6-30P 10 ft. (3.05 m) Cord 0U Vertical - 6 x IEC 320 EN 60320 C19, 24 x IEC 320 EN 60320 C13 - Zero U Vertical Rackmount, Wall-mountable"

Metered single phase 30A 208/240V, 0U 63.75in / 162cm vertical rackmount PDU
Pair of digital meters report output current in amps for each load bank
Attached 10ft / 3m cord with NEMA L6-30P input plug
30 outlets (6 C19, 24 C13) in two separately breakered load banks

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	PDUMV30HV
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Model	PDUMV30HV
Product Name	PDUMV30HV PDU Metered 208V - 240V 30A 30 Outlet
Marketing Information	PDUMV30HV 63.75 in. vertical 0U metered rack PDU supports 30A maximum capacity at 208/240V. Includes 10 ft attached line cord with L6-30P input plug. 24 C13 and 6 C19 outlets support up to 30 directly connected pieces of networking equipment. Outlets are arranged in two separately metered and breakered 15A load banks (each with 3 C19 and 12 C13 outlets). Set of 2 built-in 2 character displays offer continuous information on PDU power consumption for each of the two built-in loading banks. Each built-in, easy to read, two-character LED display offers continuous PDU current monitoring data in one-amp increments. Tooless mounting enables simple installation in button-mount compatible racks. Included mounting brackets support vertical installation in standard 2 and 4 post racks or other surfaces, such as under-counter or wallmount configurations. Plug retention brackets keep vital equipment plugged in and continuously powered. More from the Manufacturer
Product Type	PDU

Technical Information

Plug/Connector Type	NEMA L6-30P
Receptacle Type	IEC 60320 C19
Receptacle Type	IEC 60320 C13
Receptacle Detail	6 x IEC 60320 C19
Receptacle Detail	24 x IEC 60320 C13
Protection Type	Overload Protection
Protection Type	Short Circuit Protection

Power Description

Input Voltage	230 V AC
Input Voltage Range	208 V AC - 240 V AC
Output Voltage	208 V AC
Output Voltage	240 V AC

Physical Characteristics

Mounting Orientation	Vertical
Mount Type	Wall-mountable
Mount Type	Rack-mountable
Height	63.8" mm
Width	2.3" mm
Depth	3.8" mm
Weight (Approximate)	8 lb g

Miscellaneous

Package Contents	PDUMV30HV PDU Metered 208V - 240V 30A 30 Outlet PDUMV30HV 63.75 inch basic PDU with owner's manual Set of 2 bolt-on plug retention brackets and installation hardware Set of mounting brackets and installation hardware
Country of Origin	China

Warranty

Limited Warranty

2 Year
