Eaton PDUMV40 Tripp Lite by Eaton PDU 3.8kW Single-Phase Local Metered PDU Dual Circuit 120V Outlets (32 5-15/20R) L5-20P/5-20P 10 ft. (3.05 m) Cord 0U Vertical

Name: Eaton PDUMV40 Tripp Lite by Eaton PDU 3.8kW Single-Phase Local Metered PDU Dual Circuit 120V Outlets (32 5-15/20R) L5-20P/5-20P 10 ft. (3.05 m) Cord 0U Vertical
Brand: Eaton
SKU: PDUMV40
Price: 593.36 USD
Availability: InStock

Part Number:

PDUMV40

24 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

24 pieces ready to ship - additional units ship in 7-10 business days.

$593.36

USD + Applicable Tax

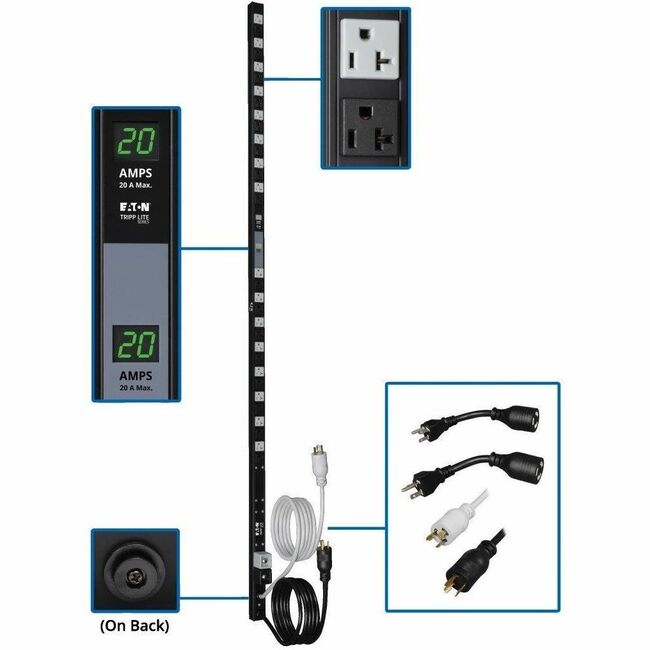

Tripp Lite by Eaton PDU 3.8kW Single-Phase Local Metered PDU Dual Circuit 120V Outlets (32 5-15/20R) L5-20P/5-20P 10 ft. (3.05 m) Cord 0U Vertical - 32 x NEMA 5-15/20R - 4.8kW - Zero U Vertical Rackmount

Dual Circuit 71 inch PDU
Dual Independent Current Monitoring Displays
32 NEMA 5-15/20R 120V outlets color coded for each circuit
Two 20A independent circuits of 16 outlets each
Color-coded input power cords for each circuit
Supports connection to NEMA L5-20R or 5-20R 120V 20A wall receptacle

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	PDUMV40
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Model	PDUMV40
Product Name	PDUMV40 PDU Metered DUAL 120V 40A 32 Outlet
Marketing Information	The PDUMV40 provides an efficient and manageable power distribution solution for multiple servers with dual redundant power supplies, or any other application that requires numerous outlets, high capacity, and a compact form factor. Dual input current monitoring display shows AC power consumption for each independent circuit. Switchless design eliminates accidental shutoff of connected equipment. Unfiltered electrical pass-through without a power switch makes the PDUMV40 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets, and more. Each of two independent circuits' supports 16 outlets and equipment loads up to 2,400 watts32 outlets and 4,800 watts total capacity without consuming additional rack space. More from the Manufacturer
Product Type	PDU

Technical Information

Plug/Connector Type	NEMA L5-20P
Plug/Connector Detail	2 x NEMA L5-20P
Receptacle Type	NEMA 5-15/20R
Receptacle Detail	32 x NEMA 5-15/20R
Protection Type	Overload Protection

Power Description

Input Voltage	120 V AC
Output Voltage	120 V AC
Power Rating (Watt)	4800 W

Physical Characteristics

Mounting Orientation	Vertical
Mount Type	Rack-mountable
Height	3" mm
Width	71.3" mm
Depth	1.5" mm
Weight (Approximate)	8.20 lb g

Miscellaneous

Package Contents	PDUMV40 PDU Metered DUAL 120V 40A 32 Outlet PDUMV40 Dual Vertical Circuit/Metered PDU Mounting Hardware Two NEMA L5-20P to 5-20P plug adapters Owner's Manual with warranty information
Country of Origin	China
Environmentally Friendly	Yes

Warranty

Limited Warranty

2 Year
