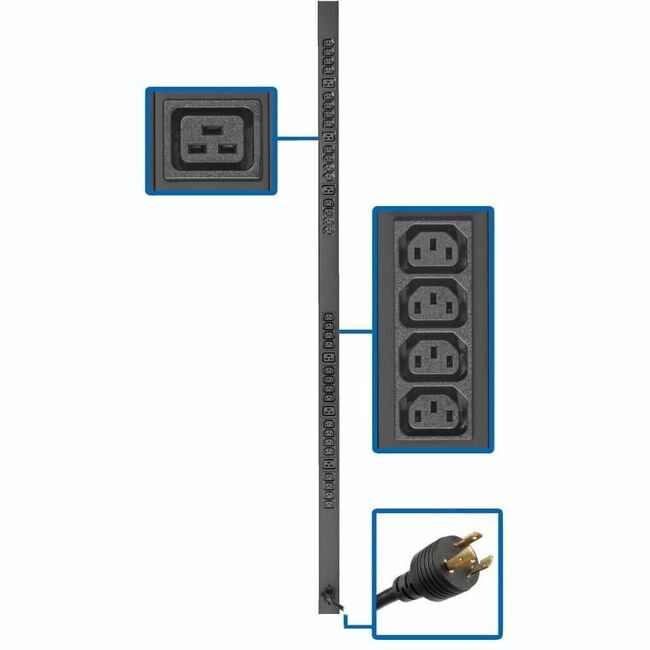

Eaton PDUV20HVL6-72 Tripp Lite basic PDU with 32 C13 and 6 C19 outlets, 10 ft. cord, 3.7kW, 208/230V, rack-mount.

100% Genuine

Manufacturer Warranty

Fast US Shipping

Eaton PDUV20HVL6-72 Tripp Lite by Eaton PDU 3.7kW 208/230V Single-Phase Basic PDU - 32 C13 & 6 C19 Outlets L6-20P Input 10 ft. Cord 63.75 in. 0U Rack

Part Number:

PDUV20HVL6-72

197 pieces ready to ship - additional units ship in 7-10 business days.
Estimated shipping in 7–10 business days.
Estimated shipping in 7–10 business days.
Ready to ship.

197 pieces ready to ship - additional units ship in 7-10 business days.

$421.36

USD + Applicable Tax
Visa
Mastercard
American Express
PayPal
Shop Pay

Tripp Lite by Eaton PDU 3.7kW 208/230V Single-Phase Basic PDU - 32 C13 & 6 C19 Outlets L6-20P Input 10 ft. Cord 63.75 in. 0U Rack - Basic - NEMA L6-20P - 32 x IEC 60320 C13, 6 x IEC 60320 C19 - 230 V AC - 0U - Vertical/Toolless - Wall-mountable, Rack-mountable

  • Ideal no-frills PDU for telecom, security, audio/video and other network applications
  • 32 C13 and 6 C19 outlets distribute AC power to connected equipment
  • Switchless design helps prevent accidental shutdowns that can lead to costly downtime
  • 10 ft. cord with NEMA L6-20P single-phase input connects to compatible power source
  • 63.75 in. 0U PDU with included mounting hardware installs in rack or under counter
  • 5-year limited warranty

General Information

Manufacturer Eaton Corporation
Manufacturer Part Number PDUV20HVL6-72
Manufacturer Website Address http://www.eaton.com
Brand Name Tripp Lite series
Product Model PDUV20HVL6-72
Product Name PDUV20HVL6-72 38-Outlets PDU
Marketing Information

Single-Phase 208/240V PDU Distributes Network-Grade Power to Multiple Loads

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDUV20HVL6-72 features 32 C13 and six C19 outlets for connecting equipment. A 10-foot cord with NEMA L6-20P input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads. The switchless design helps prevent an accidental shutdown, which could lead to costly downtime.

Versatile Installation Options Give You Plenty of Choices

The 63.75-inch all-metal housing supports 0U vertical mounting in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting clips and hardware. You may also use the clips to secure the PDU to a wall, counter or other flat, secure surface. Included C20 and C14 plug-lock inserts attach to the connected components' plugs to keep them connected and the devices continuously powered.

Typical Applications

Deliver network-grade power to high-density equipment in networking, telecom, security, audio/video and sound reinforcement applications

Package Includes

  • PDUV20HVL6-72 3.3/3.8kW 208/240V Single-Phase Basic PDU
  • (38) Plug-lock inserts
  • Mounting hardware
  • Owner's manual
Product Type PDU

Technical Information

PDU Type Basic
Phase Single Phase
Plug/Connector Type NEMA L6-20P
Receptacle Type IEC 60320 C13
Receptacle Type IEC 60320 C19
Receptacle Detail 32 x IEC 60320 C13
Receptacle Detail 6 x IEC 60320 C19
Protection Type Accidental Power Shutdown

Power Description

Input Voltage 230 V AC
Output Voltage 200 V AC
Output Voltage 208 V AC
Output Voltage 240 V AC
Power Rating (Watt) 3840 W
Input Current 20 A

Physical Characteristics

Mounting Orientation Vertical/Toolless
Mount Type Wall-mountable
Mount Type Rack-mountable
Placement Under-counter
Rack Height 0U
Cord Length 10 ft mm
Height 63.8" mm
Width 2.3" mm
Depth 3.8" mm
Weight (Approximate) 8 lb g

Miscellaneous

Package Contents
  • PDUV20HVL6-72 38-Outlets PDU
  • 38 x Plug-lock Inserts
  • Mounting Hardware
  • Owner's Manual
Country of Origin China
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty 5 Year
