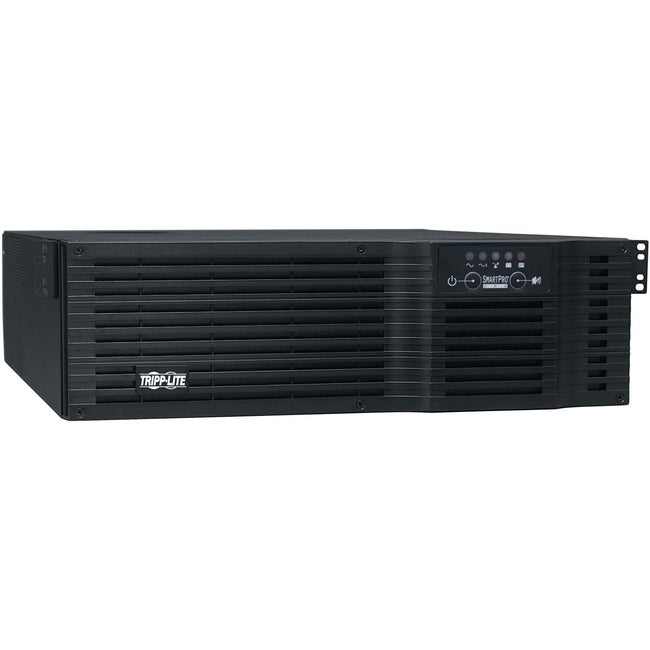

Eaton SM2200RMDVTAA Tripp Lite by Eaton UPS TAA SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS 3U 120/230V input Network Card Options USB DB9

Name: Eaton SM2200RMDVTAA Tripp Lite by Eaton UPS TAA SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS 3U 120/230V input Network Card Options USB DB9
Brand: Eaton
SKU: SM2200RMDVTAA
Price: 3156.72 USD
Availability: InStock

Part Number:

SM2200RMDVTAA

40 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

40 pieces ready to ship - additional units ship in 7-10 business days.

$3,156.72

USD + Applicable Tax

Tripp Lite by Eaton UPS TAA SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS 3U 120/230V input Network Card Options USB DB9 - 3U Rack/Tower - 4.50 Hour Recharge - 12 Minute Stand-by - 110 V AC, 220 V AC Input - 120 V AC Output - Serial Port - USB - 4 x NEMA 5-15/20R, 4 x NEMA 5-15R - TAA Compliant

Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
2200VA / 2.2kVA / 1920W line interactive 3U rack/tower UPS; 0.9 power factor
Maintains 120V output with 120V or 230V input, Sine wave output
USB port, RS232, EPO and optional SNMP/WEB card slot; Detailed status LEDs
95% line-mode efficiency, 2 switched load banks
C20 inlet & 4 international input line cords, 4 5-15R & 4 5-15/20R outlets

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	SM2200RMDVTAA
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Line	SmartPro
Product Model	SM2200RMDVTAA
Product Name	SmartPro SM2200RMDVTAA 2200 VA Tower/Rack Mountable UPS
Marketing Information	Tripp Lite's dual input voltage SM2200RMDVTAA line interactive UPS system maintains 120V nominal output when powered by North American 120V or International 230V input. 3U rack / tower form factor with an installed depth of only 22.5 inches. Expandable battery runtime with optional BP48V24-2U and BP48V60RT3U external battery packs. Includes C20 power inlet with set of 4 international cordsets and both NEMA 5-15R and 5-15/20R output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Integrated 2-bank programmable PDU switching supports load shedding and remote-reboot of up to 2 individual connected devices. 3-stage metered current monitoring and battery charge status LEDs. 95% efficiency in line power mode. More from the Manufacturer
Product Type	Line-interactive UPS

Technical Information

Receptacle Type	NEMA 5-15/20R
Receptacle Type	NEMA 5-15R
Receptacle Detail	4 x NEMA 5-15/20R
Receptacle Detail	4 x NEMA 5-15R
Transfer Time	4 ms Second

Power Description

Load Capacity (VA)	2200 VA W
Load Capacity (Watt)	1920 W
Input Voltage	110 V AC
Input Voltage	220 V AC
Input Current	16 A
Output Voltage	120 V AC

Management

Network Management

SNMP Manageable

Interfaces/Ports

Serial Port	Yes
USB	Yes

Battery Information

Backup/Run Time (Full Load)	12 Minute Second
Backup/Run Time (Half Load)	30 Minute Second
Hot Swappable	Yes
Typical Battery Recharge Time	4.50 Hour Second

Physical Characteristics

Height	5.25" mm
Width	17.50" mm
Depth	25.25" mm
Rack Height	3U
Form Factor	Rack/Tower
Weight (Approximate)	104.25 lb g

Miscellaneous

Package Contents	SmartPro SM2200RMDVTAA 2200 VA Tower/Rack Mountable UPS 5 x International Input Power Cables USB Cable Serial Cable EPO Cable PowerAlert Software CD Tower Stand Kit 4 Post 19 inch Rackmount Mounting Kit 2 Post 19 inch Rackmount Mounting Kit User Manual
Software Included	PowerAlert Software
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
