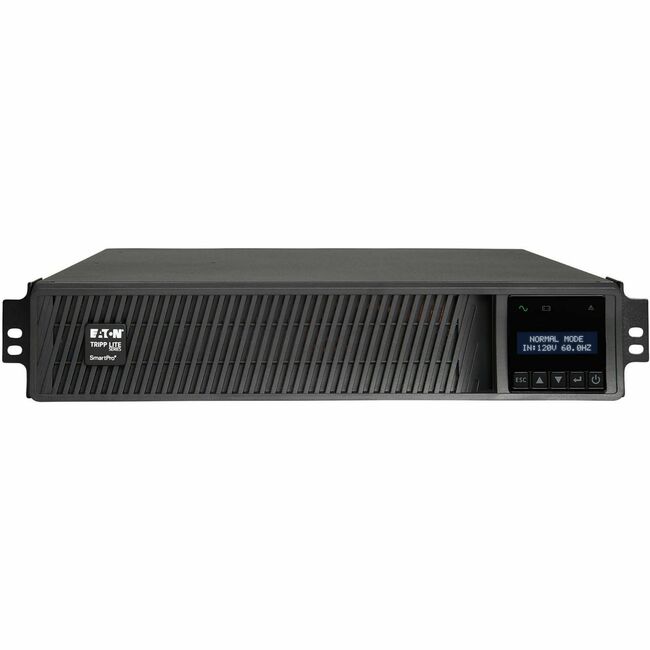

Tripp Lite by Eaton Series SmartPro 3000VA 3000W 120V Line-Interactive Sine Wave UPS - 7 Outlets, Network Card Option, LCD, USB, DB9, 2U Rack/Tower - 2U - 4.50 Hour Recharge - 3.50 Minute Stand-by - 120 V AC Input - 120 V AC Output - 8 x NEMA 5-15/20R, 1 x NEMA L5-30R
- Protects equipment against blackouts, brownouts, transient surges and line noise
- Keeps equipment running during outages to allow time for file saves and safe shutdown
- Unity power factor ensures maximum power possible at each power rating
- For remote monitor and control, the WEBCARDLXE is required (sold separately). Not compatible with WEBCARDLX.
- 2-line front-panel LCD with 10 selectable screens reports detailed UPS and site power info
General Information
| Manufacturer |
Eaton Corporation |
| Manufacturer Part Number |
SMART3000RM2U |
| Manufacturer Website Address |
http://www.eaton.com |
| Brand Name |
Tripp Lite series |
| Product Line |
SmartPro |
| Product Model |
SMART3000RM2U |
| Product Name |
SmartPro SMART3000RM2U 3000VA Rack/Tower UPS |
| Marketing Information |
3kVA/3kW/120V Battery Backup for Distributed IT, Telecom or Enterprise DeploymentsThis rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your IT equipment or destroy data. The SMART3000RM2U is ideal power management for high-end in-rack networking equipment, including servers, VoIP phones, data storage and PoE switches. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment.
Reliable Battery Backup Keeps You Operational Through Power OutagesThe field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Switchover from line to battery power happens within milliseconds to maintain continuous operation of connected equipment without interruption or rebooting.
Optional LX Platform Network Management Card Allows Remote Access 24/7The WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.
NEMA Outlets Protect Your Connected ComponentsOne L5-30R and six 5-20R managed outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four 5-20R outlets are split into two independently switchable load banks that let you shed non-critical loads to extend runtime for critical loads. Front and rear cooling fans help protect equipment from overheating.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage ConditionsAVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts. The SMART3000RM2U maintains regulated 120V nominal output during brownouts and overvoltages from 80V to 151V while keeping the battery fully charged and ready to take over in case of power failure.
Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform BetterThis UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
More from the Manufacturer
|
| Packaged Quantity |
1 Each |
| Product Type |
Line-interactive UPS |
Technical Information
| Plug/Connector Type |
NEMA L5-30P |
| Receptacle Type |
NEMA L5-30R |
| Receptacle Type |
NEMA 5-20R |
| Receptacle Detail |
6 x NEMA 5-20R |
| Receptacle Detail |
1 x NEMA L5-30R |
| Overload Protection |
Yes |
| Cord Length |
10 ft mm |
| Transfer Time |
4 ms Second |
| Phase |
Single Phase |
| Application/Usage |
Data Storage |
| Application/Usage |
Server |
| Application/Usage |
Switch |
| Application/Usage |
IT Equipment |
Power Description
| Load Capacity (VA) |
3000 VA W |
| Load Capacity (Watt) |
3000 W |
| Input Voltage |
120 V AC |
| Input Current |
24 A |
| Output Voltage |
100 V AC |
| Output Voltage |
110 V AC |
| Output Voltage |
115 V AC |
| Output Voltage |
120 V AC |
| Output Frequency |
60 Hz |
| Waveform Type |
Pure Sine Wave |
| Surge Energy Rating |
380 J |
| Output Power Factor |
1.0 |
Display & Graphics
Management
| Network Management |
SNMP/Web |
| Alarm |
Remote Shutdown |
| Alarm |
UPS StartUp |
| Alarm |
Power Failure |
| Alarm |
Overload |
| Alarm |
UPS Fault |
| Alarm |
Low Battery |
Controls/Indicators
| Status Indicators |
5 Front Panel Leds:
- Green Power Led
- Green Voltage Correction Led
- 3 Color Battery Charge Led
- 3 Color Output Load Led
- Red Battery Warning Led
|
Interfaces/Ports
| Serial Port |
Yes |
| USB |
Yes |
| EPO Port |
Yes |
| USB (HID Compliant) Port |
Yes |
Battery Information
| DC System Voltage |
72 V DC |
| Battery Characteristics |
Valve-regulated |
| Battery Chemistry |
Lead Acid |
| Backup/Run Time (Full Load) |
3 Minute Second |
| Backup/Run Time (Half Load) |
9 Minute Second |
| Hot Swappable |
Yes |
| Typical Battery Recharge Time |
4.50 Hour Second |
| Replaceable Battery |
Yes |
Environmental Conditions
| Maximum Operating Elevation |
10000 ft mm |
| Maximum Storage Elevation |
32808 ft mm |
| Storage Temperature |
5°F (-15°C) - 122°F (50°C) °F |
| Minimum Operating Temperature |
32°F (0°C) °F |
| Maximum Operating Temperature |
104°F (40°C) °F |
Physical Characteristics
| Height |
3.39" mm |
| Width |
17.20" mm |
| Depth |
23.70" mm |
| Rack Height |
2U |
| Form Factor |
Rack/Tower |
| Weight (Approximate) |
74.50 lb g |
Miscellaneous
| Package Contents |
SmartPro SMART3000RM2U 3000VA Rack/Tower UPS USB Cable DB9 Cable Rack-mounting Hardware Tower Support Stands Safety Instructions Advanced User Guide
|
| Software Included |
PowerAlert Software |
| Energy Star |
Yes |
| Country of Origin |
Philippines |
| Environmentally Friendly |
Yes |
| Environmental Compliance |
Restriction of Hazardous Substances (RoHS) |
