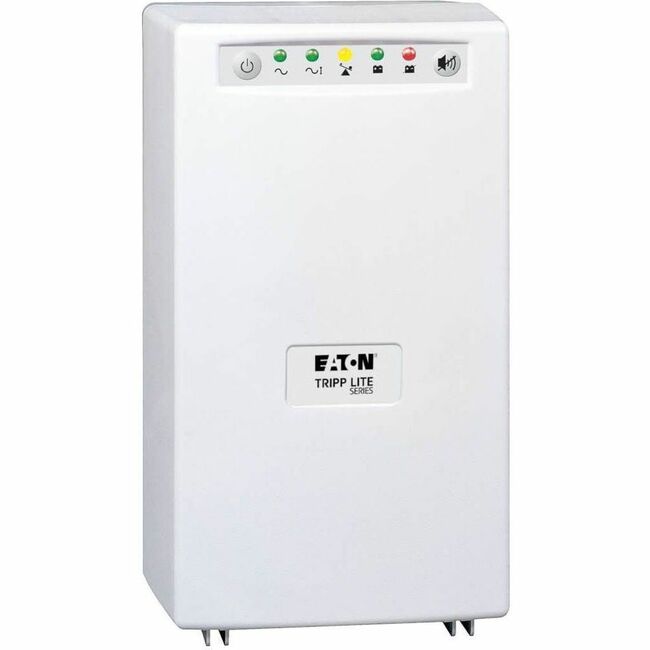

Eaton SMART700HG Tripp Lite UPS tower with 700VA capacity, USB and DB9 ports, suitable for medical and general purpose use.

100% Genuine

Manufacturer Warranty

Fast US Shipping

Eaton SMART700HG Tripp Lite by Eaton UPS Smart 700VA 450W Tower AVR Hospital Medical 120V USB DB9

Part Number:

SMART700HG

343 pieces ready to ship - additional units ship in 7-10 business days.
Estimated shipping in 7–10 business days.
Estimated shipping in 7–10 business days.
Ready to ship.

343 pieces ready to ship - additional units ship in 7-10 business days.

$1,332.79

USD + Applicable Tax
Visa
Mastercard
American Express
PayPal
Shop Pay

Tripp Lite by Eaton UPS Smart 700VA 450W Tower AVR Hospital Medical 120V USB DB9 - 700VA/450W - 18 Minute Full Load - 4 x NEMA 5-15R

  • 700VA line interactive tower UPS
  • Maintains 120V nominal output over an input range of 82 to 142V
  • Professional features include serial port, hospital grade plug & outlets, built-in isolation transformer and UL60601-1 listing
  • Input: NEMA 5-15P (120V 15A) / Output: 4 NEMA 5-15R (120V)
  • Leakage current less than 100 microamps

General Information

Manufacturer Eaton Corporation
Manufacturer Part Number SMART700HG
Manufacturer Website Address http://www.eaton.com
Brand Name Tripp Lite series
Product Line SmartPro
Product Name SmartPro 700HG UPS
Marketing Information

Tripp Lite's SMART700HG medical-grade UPS system provides dependable battery backup and is fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient-care vicinities. The 700VA/450W capacity provides up to 42 minutes of runtime for a half load, or 18 minutes for a full load so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout. Built-in line-interactive voltage regulation corrects brownouts as low as 81V and overvoltages as high as 143V to normal 120V nominal output, without drawing battery power. The SMART700HG's built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes. This UPS system features four NEMA 5-15R-HG hospital-grade outlets and has a hospital-grade NEMA 5-15P-HG plug with a 6 ft. cord for flexibility in placement. All four outlets provide both backup protection and surge protection, rated to 480 joules. The SMART700HG also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work with Tripp Lite's free downloadable PowerAlert software for safe, unattended system shutdown and file saves in the event of a prolonged power failure.

Application Usage

This UPS contains a lead acid battery designed to be connected continuously to an AC power source, except during brief power outages. It is not intended for frequent charge/discharge cycles, such as mobile cart applications where the UPS is often disconnected from the power source. Using the SMART700HG in this type of application will void the battery warranty. For mobile applications, Tripp Lite recommends the SMART700HGL with lithium iron phosphate (LiFePo4) battery.

More from the Manufacturer
Product Type Line-interactive UPS

Technical Information

Plug/Connector Type NEMA 5-15P
Receptacle Type NEMA 5-15R
Receptacle Detail 4 x NEMA 5-15R
Cord Length 6 ft mm
Transfer Time 4 ms Second

Power Description

Load Capacity (VA) 700 VA W
Load Capacity (Watt) 450 W
Input Voltage 120 V AC
Output Voltage 120 V AC

Management

Network Management SNMP Manageable
Alarm On Battery
Alarm Overload
Alarm Low Battery

Controls/Indicators

Status Indicators 5 front-panel indicator LEDs to show battery charge level, AC line voltage levels, automatic voltage regulation status, UPS load level and replace battery warning

Interfaces/Ports

USB Yes

Battery Information

Battery Chemistry Lead Acid
Backup/Run Time (Full Load) 18 Minute Second
Backup/Run Time (Half Load) 42 Minute Second
Battery Life 6 Year Second
Hot Swappable Yes
Typical Battery Recharge Time 4 Hour Second

Environmental Conditions

Maximum Operating Temperature 104°F (40°C) °F

Physical Characteristics

Height 12.50" mm
Width 7" mm
Depth 9" mm
Form Factor Tower
Weight (Approximate) 44 lb g

Miscellaneous

Package Contents
  • SmartPro 700HG UPS
  • SMART 700HG Medical Grade UPS System
  • One USB and One DB9 monitoring cable
  • Warranty information
  • Instruction manual
Country of Origin China

Warranty

Limited Warranty 2 Year
