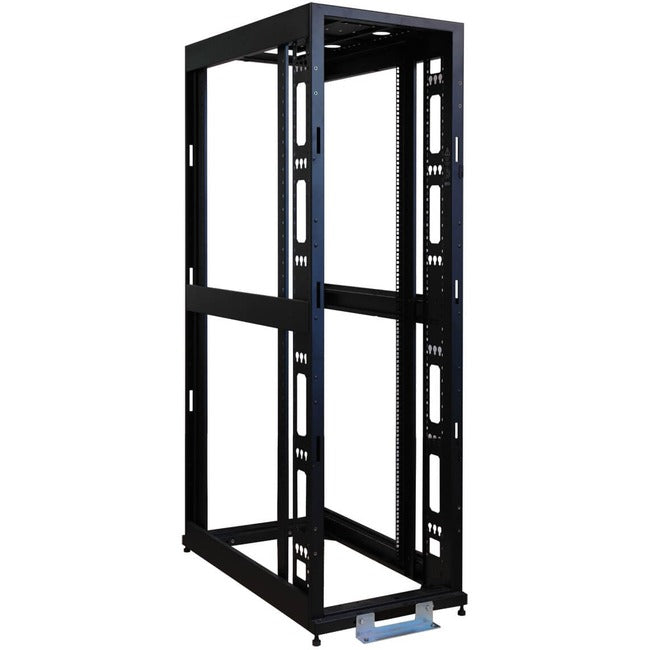

Eaton SR45UBEXPND Tripp Lite by Eaton 45U 4-Post Open Frame Rack Cabinet Square Holes 3000lb Capacity

Name: Eaton SR45UBEXPND Tripp Lite by Eaton 45U 4-Post Open Frame Rack Cabinet Square Holes 3000lb Capacity
Brand: Eaton
SKU: SR45UBEXPND
Price: 1861.79 USD
Availability: InStock

Part Number:

SR45UBEXPND

2 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

2 pieces ready to ship - additional units ship in 7-10 business days.

$1,861.79

USD + Applicable Tax

Tripp Lite by Eaton 45U 4-Post Open Frame Rack Cabinet Square Holes 3000lb Capacity - 45U Rack Height x 19" Rack Width - Rack-mountable - Black - 2250 lb Dynamic/Rolling Weight Capacity - 3000 lb Static/Stationary Weight Capacity

45U SmartRack Premium open frame rack
4 interior vertical posts with unthreaded square hole openings
Standard 24" (600mm) width and 42" (1050mm) depth for optimizing floor space
Ships fully assembled
3000 lb stationary / 2250 lb rolling load capacity
Preinstalled casters and leveling feet
Includes 50 pieces of M6 cage nuts and 50 pieces of M6 screws (equipment mounting hardware)

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	SR45UBEXPND
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Line	SmartRack
Product Model	SR45UBEXPND
Product Name	45U 4-Post SmartRack Premium Open Frame Rack
Marketing Information	The SR45UBEXPND is 45U SmartRack enclosure with NO doors and NO side panels. The 'EXP' version is an expansion model used when several cabinets are bayed together. Its integrated baying tabs make it easy to combine multiple enclosures in rows for data center applications. This enclosure is also compatible with hot-aisle/cold-aisle configurations. The SR45UBEXPND houses 3000 lb of standard 19-inch rack equipment in 45U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from 4 to 37 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference. Two of the adjustable vertical mounting rails support toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord clutter. All components of the SR45UBEXPND are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground. To simplify deployment, the SR45UBEXPND comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: the casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances. The SR45UBEXPND comes with a 5-year product warranty. As part of the SmartRack family, the SR45UBEXPND is compatible with Tripp Lite's extensive range of rackmount accessories, enabling you to customize your solution to meet any requirement. More from the Manufacturer
Product Type	Rack Frame

Physical Characteristics

Form Factor	Rack-mountable
Color Family	Black
Product Color	Black
Dynamic/Rolling Weight Capacity	2250 lb g
Static/Stationary Weight Capacity	3000 lb g
Height	83.8" mm
Width	23.6" mm
Depth	43" mm
Rack Height	45U
Rack Width	19" mm
Weight (Approximate)	147 lb g

Miscellaneous

Package Contents	45U 4-Post SmartRack Premium Open Frame Rack 50 x M6 Cage Nuts 50 x M6 Screws Mounting Hardware Stabilizing Brackets
Assembly Required	No
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

5 Year
