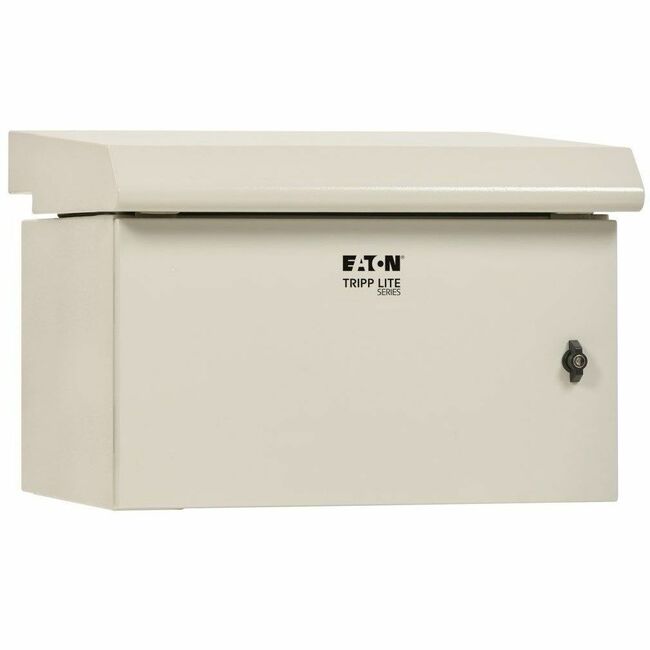

Eaton SRN3RG9US Tripp Lite Series SmartRack Industrial Enclosure - NEMA 3R, Wall Mount, Metal, Locking, Hinged Back, Fan With Thermal Switch, 28 in. Depth, 9U, Gray

Name: Eaton SRN3RG9US Tripp Lite Series SmartRack Industrial Enclosure - NEMA 3R, Wall Mount, Metal, Locking, Hinged Back, Fan With Thermal Switch, 28 in. Depth, 9U, Gray
Brand: Eaton
SKU: SRN3RG9US
Price: 2235.59 USD
Availability: InStock

Part Number:

SRN3RG9US

15 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

15 pieces ready to ship - additional units ship in 7-10 business days.

$2,235.59

USD + Applicable Tax

Eaton Tripp Lite Series SmartRack Industrial Enclosure - NEMA 3R, Wall Mount, Metal, Locking, Hinged Back, Fan With Thermal Switch, 28 in. Depth, 9U, Gray - For DVR, Switch, PDU, Patch Panel, UPS, Computer, Server - 9U Rack Height28" Rack Depth - Wall Mountable Enclosed Cabinet - Gray - Metal, Steel - 200 lb Maximum Weight Capacity - 200.62 lb Static/Stationary Weight Capacity

Enclosed, sealed metal housing protects 9U of rack equipment up to 28 in. deep
NEMA 3R enclosure provides protection against rain, sleet, snow and other moisture
Door locks securely with included keys to help prevent damage, tampering or theft
Internal fans with thermal switch improve airflow through the enclosure and keep equipment cool
Enclosure swings away from the wall on hinge for easy back-door access

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	SRN3RG9US
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Line	SmartRack
Product Model	SRN3RG9US
Product Name	SmartRack SRN3RG9US Rack Mount Enclosure
Marketing Information	Space-Saving Wall-Mount Enclosure Houses Rack Equipment up to 28 in. Deep This SmartRack® industrial enclosure is designed to house 9U of 19-inch rack-mount equipment, such as network switches and patch panels. Constructed from steel with a durable gray powder-coated finish, the SRN3RG9US has a maximum load capacity of 200 pounds (90.7 kilograms) and is suitable for indoor and outdoor applications. NEMA 3R Enclosure Designed for Protection Against Harsh Elements The SRN3RG9US protects its contents against the ingress of water (including rain, sleet and snow), solid foreign objects (including falling dirt) and even ice forming on the outside of the enclosure. It is ideal for a multitude of industrial sites, such as factories, construction areas, utility plants, power stations, transportation terminals, distribution hubs, warehouses and other areas where you need to keep sensitive equipment secure, organized and out of the way. Locks and Hinged Back Allow Easy Authorized Access to Equipment and Cabling The fully welded steel housing locks securely with the included keys to protect its contents against theft, tampering and unauthorized access. The enclosure swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. Data and power cables may be routed through a bottom conduit cutout. Easy Enclosure and Equipment Installation This 9U industrial enclosure comes fully assembled and ready to mount to the wall with user-supplied hardware. Front and rear mounting rails adjust independently to accommodate equipment up to 28 inches deep. Hardware for mounting equipment inside the enclosure is included. Built-in fans help keep mounted equipment cool and lasting longer.
Product Type	Rack Mount Enclosure

Technical Information

Rack Type	Enclosed Cabinet
Application/Usage	DVR
Application/Usage	Switch
Application/Usage	PDU
Application/Usage	Patch Panel
Application/Usage	UPS
Application/Usage	Computer
Application/Usage	Server
Features	Snow Resistant
Features	Moisture Resistant
Features	Lockable Door
Features	Damage Resistant
Features	Tamper Resistant
Features	Anti-theft
Features	Cable Management
Features	Adjustable Mounting Rails
Features	Debris Resistant
Features	Heavy Duty
Features	Rain Resistant
Features	Water Resistant

Power Description

Plug/Connector Type

NEMA 5-15P

Physical Characteristics

Form Factor	Wall Mountable
Color Family	Gray
Product Color	Gray
Product Material	Metal
Product Material	Steel
Maximum Weight Capacity	200 lb g
Static/Stationary Weight Capacity	200.62 lb g
Height	23.2" mm
Width	25.2" mm
Depth	32.1" mm
Rack Height	9U
Rack Depth	28" mm
Weight (Approximate)	131.18 lb g

Miscellaneous

Package Contents	SRN3RG9US Industrial Enclosure 24 x 10-32 screws 24 x M6 washers 4 x LDPE sheet metal plugs 4 x M10 foam washers 2 x Keys Owner's manual
Assembly Required	No
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty

Limited Warranty

5 Year
