Eaton SRW12USNEMA Tripp Lite by Eaton SmartRack 12U Switch-Depth Wall-Mount Small Rack Enclosure for Harsh Environments Hinged Back

Name: Eaton SRW12USNEMA Tripp Lite by Eaton SmartRack 12U Switch-Depth Wall-Mount Small Rack Enclosure for Harsh Environments Hinged Back
Brand: Eaton
SKU: SRW12USNEMA
Price: 1464.26 USD
Availability: OutOfStock

Part Number:

SRW12USNEMA

0 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

Estimated shipping in 7–10 business days.

$1,464.26

USD + Applicable Tax

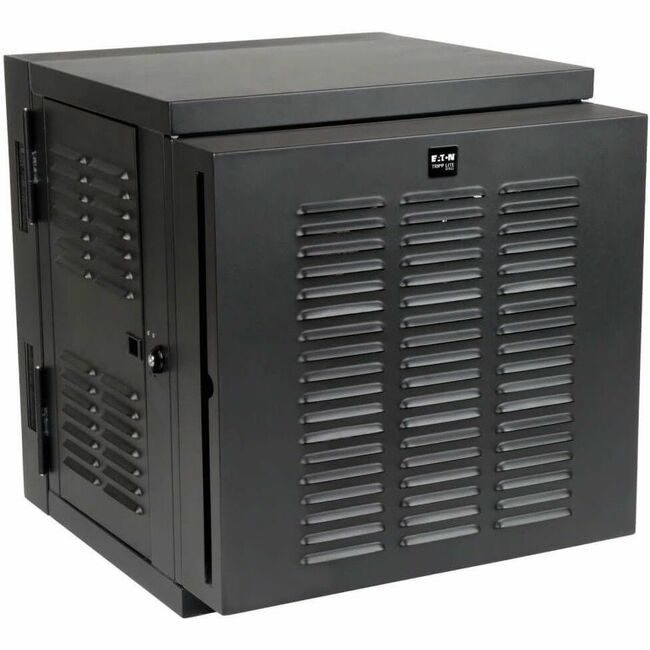

Tripp Lite by Eaton SmartRack 12U Switch-Depth Wall-Mount Small Rack Enclosure for Harsh Environments Hinged Back - 12U Rack Height x 19" Rack Width - Wall Mountable - Black - 200 lb Static/Stationary Weight Capacity

Maximum load capacity of 200 lb.
NEMA 12 (IP54) rating against dirt, dust, drips and splashes
Swings away from wall on hinge for easy back-door access
Locking steel cabinet with built-in ventilation fans
Secures 12U of 19 in. rack equipment up to 20.5 in. deep

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	SRW12USNEMA
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Line	SmartRack
Product Model	SRW12USNEMA
Product Name	SmartRack SRW12USNEMA Rack Cabinet
Marketing Information	The SRW12USNEMA SmartRack 12U NEMA 12 Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in harsh, dirty work environments with limited floor space, such as factories, construction areas, utility plants, power stations, transportation terminals, distribution hubs and warehouses. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.The SRW12USNEMA has a NEMA 12 (IP54) protection rating, protecting sensitive equipment against dirt, dust, lint, oil, drips and splashes. Its built-in air filter, louvered vents on the front door and side panels, sealed gasket around the door frames and brush strips around cable access points prevent dripping water, oil and airborne contaminants from getting inside. You can replace the air filter with standard, off-the-shelf furnace filters. Four high-performance intake fans built into the front door pull filtered air through the cabinet to keep your equipment cool. The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The reversible doors can open left or right. The doors and side panels lock securely to help prevent damage, tampering or theft. Convenient ports on the back door allow easy cable routing. The SRW12USNEMA comes fully assembled and ready to mount to the wall. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to house equipment up to 20.5 inches deep, such as network switches and patch panels. More from the Manufacturer
Product Type	Rack Cabinet

Physical Characteristics

Form Factor	Wall Mountable
Color Family	Black
Product Color	Black
Static/Stationary Weight Capacity	200 lb g
Height	25" mm
Width	23.6" mm
Depth	21.6" mm
Rack Height	12U
Rack Width	19" mm
Weight (Approximate)	60 lb g

Miscellaneous

Package Contents	SmartRack SRW12USNEMA Rack Cabinet 20 x M6 Cagenuts 20 x M6 Screws 20 x Washers 2 x Keys 1 x Removable/Replaceable Dust Filter Owner's Manual
Assembly Required	No
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
