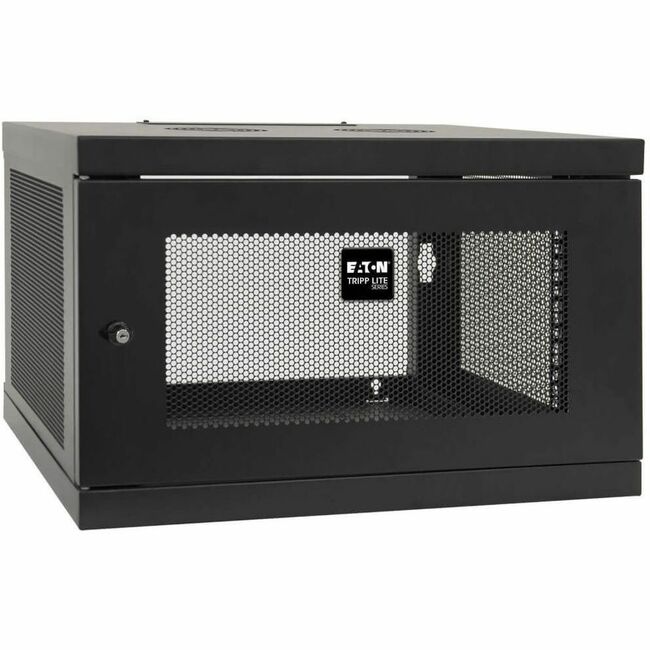

Eaton SRW6UKD Tripp Lite Series SmartRack 6U Low-Profile Switch-Depth Knock-Down Wall-Mount Mini Rack Enclosure

Name: Eaton SRW6UKD Tripp Lite Series SmartRack 6U Low-Profile Switch-Depth Knock-Down Wall-Mount Mini Rack Enclosure
Brand: Eaton
SKU: SRW6UKD
Price: 360.68 USD
Availability: InStock

Part Number:

SRW6UKD

267 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

267 pieces ready to ship - additional units ship in 7-10 business days.

$360.68

USD + Applicable Tax

Eaton Tripp Lite Series SmartRack 6U Low-Profile Switch-Depth Knock-Down Wall-Mount Mini Rack Enclosure - 19" 6U Wide x 16.50" Deep Wall Mountable for LAN Switch, Patch Panel - Black Powder Coat - Steel - 200 lb x Maximum Weight Capacity - 200 lb x Static/Stationary Weight Capacity

Ships unassembled for easy transport and storage
Maximum load capacity of 200 lb.
Locking steel cabinet vented at sides, front, top and bottom
Flow-through ventilation keeps equipment cool
Mounts to wall to save valuable floor space

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	SRW6UKD
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Line	SmartRack
Product Model	SRW6UKD
Product Name	SmartRack SRW6UKD Rack Cabinet
Marketing Information	The SRW6UKD SmartRack® 6U Low-Profile Switch-Depth Knock-Down Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds. The front door locks securely to help prevent damage, tampering and theft. The front, top, bottom and side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can be installed to open left or right. Convenient top and bottom ports allow easy cable routing. The SRW6UKD comes unassembled for convenient transport and storage in confined spaces. It easily assembles in minutes using just 12 fasteners, and mounts to the wall to save valuable floor space. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 16.5 inches deep, such as network switches and patch panels. More from the Manufacturer
Product Type	Rack Cabinet

Technical Information

Application/Usage	LAN Switch
Application/Usage	Patch Panel
Features	Cable Management

Physical Characteristics

Form Factor	Wall Mountable
Color Family	Black
Product Color	Black Powder Coat
Product Material	Steel
Maximum Weight Capacity	200 lb g
Static/Stationary Weight Capacity	200 lb g
Height	14.5" mm
Width	23.6" mm
Depth	17.9" mm
Rack Height	6U
Rack Width	19" mm
Rack Depth	16.50" mm
Weight (Approximate)	29 lb g

Miscellaneous

Package Contents	SmartRack SRW6UKD Rack Cabinet Owner's Manual Assembly Hardware 2 x Top/bottom Panels 2 x Side Equipment Mounting Hardware 12 x 12-24 Screws 12 x M6 Cage Nuts 12 x M6 Sup Washers
Assembly Required	Yes
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

5 Year
