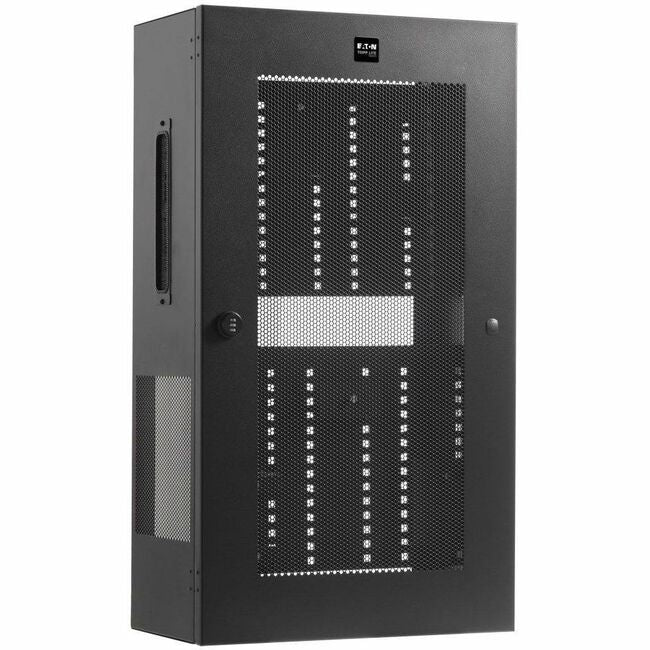

Eaton SRWF10UMOD Tripp Lite Series SmartRack 5U Low-Profile Vertical-Mount Switch-Depth Wall-Mount Structured Wiring Enclosure, Adjustable Equipment Brackets

Name: Eaton SRWF10UMOD Tripp Lite Series SmartRack 5U Low-Profile Vertical-Mount Switch-Depth Wall-Mount Structured Wiring Enclosure, Adjustable Equipment Brackets
Brand: Eaton
SKU: SRWF10UMOD
Price: 863.48 USD
Availability: InStock

Part Number:

SRWF10UMOD

35 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

35 pieces ready to ship - additional units ship in 7-10 business days.

$863.48

USD + Applicable Tax

Eaton Tripp Lite Series SmartRack 5U Low-Profile Vertical-Mount Switch-Depth Wall-Mount Structured Wiring Enclosure, Adjustable Equipment Brackets - Black Powder Coat - 5U Rack Height - Steel

2 removable 1U shelves with adjustable metal brackets secure non-rack equipment
Houses 2 areas of 5U of rack equipment up to 16.5 in. deep (when 1U shelves are removed)
Structured wiring cabinet extends less than 7 in. from wall with max capacity of 150 lb.
4 built-in RJ45 jacks connect installed modem, router and other equipment to network
Ships fully assembled for immediate installation in back office area or network closet
5-year limited warranty

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	SRWF10UMOD
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Line	SmartRack
Product Model	SRWF10UMOD
Product Name	SRWF10UMOD 5U Structured Wiring Enclosure
Marketing Information	Rugged 5U Enclosure Ideal for Housing Regular Rack and Non-Rack Network Equipment This heavy-duty steel enclosure secures and houses both regular rack equipment and other equipment not typically mounted in an EIA-standard 19-inch rack. It is recommended for wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need audio/video, voice and data infrastructure to be secure, organized and out of the way. Constructed with a durable black powder-coated finish, the vertical equipment rack has a maximum load capacity of 150 pounds. Connect a Modem, Router and Other Non-Rack Equipment Inside the Enclosure Two pre-installed, but removable, 1U shelves with adjustable metal equipment brackets attach to the cabinet's square mounting holes. Just place your modem, router, firewall, switch, power block or other non-rack equipment on the brackets, and use the included thumbscrew to secure them to the rack. Four RJ45 jacks are built into the rack cabinet for connecting your devices to a network. Low-Profile Design Accommodates Switches, Panels and Other Standard Rack Equipment Remove the two shelves to reveal two 5U areas for rack-mount equipment, one above the other, forming a total mounting space of 10U. The enclosure extends less than seven inches from the wall, while housing equipment up to 16.5 inches deep, including network switches and patch panels. Keeps Important Equipment Secure and Easy to Access The reversible front door locks securely with a built-in combination lock to help prevent damage, tampering or theft. The vented cabinet allows air to flow freely and keep equipment cool. Brush-strip cable plates on both sides allow easy cable routing while preventing dust from entering. Easy Enclosure Deployment and Equipment Installation The structured wiring cabinet comes fully assembled and ready to mount to the wall. The equipment brackets adjust easily and allow for flexibility in storing routers and other devices. Meets Payment Card Industry Standards The SRWF10UMOD provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance. This is essential for companies that process, store and/or transmit credit card information. More from the Manufacturer
Product Type	Cable Organizer

Product Information

Cable Manager Type

Structured Wiring Enclosure

Physical Characteristics

Color Family	Black
Product Color	Black Powder Coat
Product Material	Steel
Rack Height	5U
Rack Width	19" mm
Rack Depth	16.50" mm
Height	35.56" mm
Width	20" mm
Depth	10.70" mm
Weight (Approximate)	42 lb g

Miscellaneous

Package Contents	SRWF10UMOD 5U Structured Wiring Enclosure 2 x Pre-Installed 1U Shelves Adjustable Equipment Brackets Combination Lock Instructions
Compatibility	Modem Firewall Routers Switches Power Block Audio/Video Equipment Other Non-rack Equipment
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

5 Year
