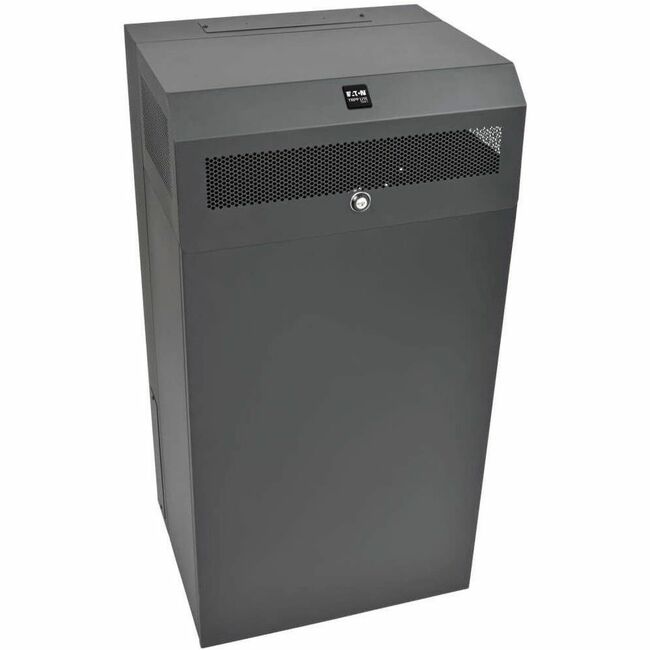

Eaton SRWF12U38 Tripp Lite by Eaton SmartRack 12U Low-Profile Vertical-Mount Wall-Mount Small Server Rack Enclosure

Name: Eaton SRWF12U38 Tripp Lite by Eaton SmartRack 12U Low-Profile Vertical-Mount Wall-Mount Small Server Rack Enclosure
Brand: Eaton
SKU: SRWF12U38
Price: 1018.28 USD
Availability: InStock

Part Number:

SRWF12U38

26 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

26 pieces ready to ship - additional units ship in 7-10 business days.

$1,018.28

USD + Applicable Tax

Tripp Lite by Eaton SmartRack 12U Low-Profile Vertical-Mount Wall-Mount Small Server Rack Enclosure - 19" 12U Wide x 35" Deep Wall Mountable for Server, LAN Switch, Patch Panel, UPS, Battery Pack - Black Powder Coat - Steel - 400 lb x Maximum Weight Capacity

Maximum load capacity of 400 lb.
Locking steel cabinet vented to keep equipment cool
Secures 8U of 19 in. rack equipment up to 35 in. deep
Includes additional 4U of space for patch panels
Modular design for easy disassembly and assembly

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	SRWF12U38
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Line	SmartRack
Product Model	SRWF12U38
Product Name	SmartRack SRWF12U38 Rack Cabinet
Marketing Information	The SRWF12U38 SmartRack® 12U Low-Profile Vertical-Mount Server-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices, two-post racks and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 400 pounds. Because the low-profile cabinet mounts vertically, it extends only 16 inches from the wall while housing equipment up to 35 inches deep, including 1U servers, UPS systems, battery packs and switches. In addition to 8U of rack space in the primary mounting area, it also includes a 4U mounting space at the top of the enclosure for patch panels. The top cover and front panel are removable to allow expedient access to equipment. The cover also locks securely with the included keys to help prevent damage, tampering or theft. The vented cabinet allows air to flow freely and keep equipment cool. Convenient top, bottom and side ports allow easy cable routing. The SRWF12U38's modular design allows you to disassemble the cabinet in minutes for wall-mounting with user-supplied hardware. Mounting holes are spaced 16 inches apart to accommodate standard wall studs. Equipment installation is easy with threaded mounting holes that support 12-24 mounting in two-post racks. Features Saves Valuable Workspace Recommended for areas with limited floor space where you need equipment to be secure, organized and out of the way Houses EIA-standard 19 in. rack equipment in 8U of space Also includes 4U of mounting space at the top of the enclosure for patch panels Extends only 16 in. from the wall while housing equipment up to 35 in. deep Maximum load capacity of 400 lb. Keeps Important Equipment Secure Top cover locks securely to help prevent damage, tampering or theft Vented cabinet keeps equipment cool Convenient ports with removable covers allow cable routing through top, bottom and sides Easy Enclosure and Equipment Installation Modular design for easy disassembly and assembly Wall-mounting holes spaced 16 in. apart for standard wall stud placement Threaded mounting holes support 12-24 mounting in 2-post racks Rack spaces marked for easy reference Meets Payment Card Industry Standards Provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance More from the Manufacturer
Product Type	Rack Cabinet

Technical Information

Rack Type	Enclosed Cabinet
Application/Usage	Server
Application/Usage	LAN Switch
Application/Usage	Patch Panel
Application/Usage	UPS
Application/Usage	Battery Pack

Physical Characteristics

Form Factor	Wall Mountable
Color Family	Black
Product Color	Black
Product Material	Steel
Maximum Weight Capacity	400 lb g
Height	38" mm
Width	19.7" mm
Depth	16.2" mm
Rack Height	12U
Rack Width	19" mm
Rack Depth	35" mm
Weight (Approximate)	147.27 lb g

Miscellaneous

Package Contents	SmartRack SRWF12U38 Rack Cabinet 2 x Keys Owner's Manual
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

5 Year
