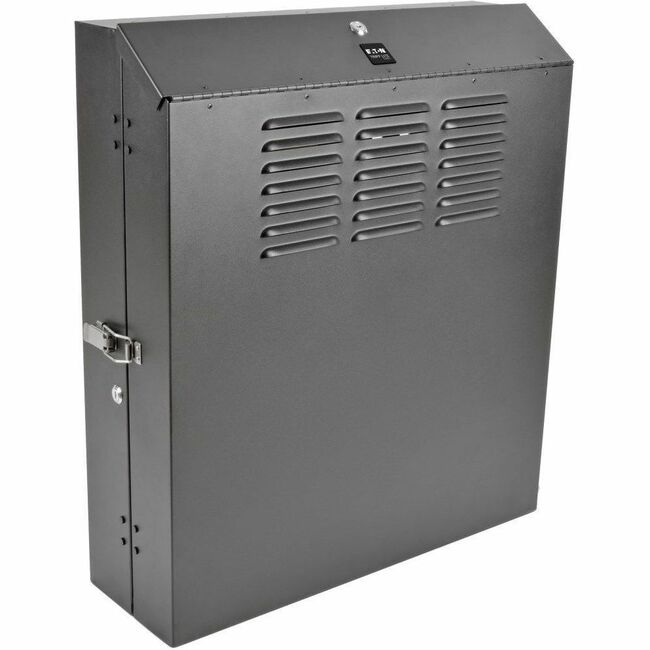

Eaton SRWF6U Tripp Lite by Eaton SmartRack 6U Low-Profile Vertical-Mount Switch-Depth Wall-Mount Rack Enclosure Cabinet

Name: Eaton SRWF6U Tripp Lite by Eaton SmartRack 6U Low-Profile Vertical-Mount Switch-Depth Wall-Mount Rack Enclosure Cabinet
Brand: Eaton
SKU: SRWF6U
Price: 904.24 USD
Availability: InStock

Part Number:

SRWF6U

1 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

1 pieces ready to ship - additional units ship in 7-10 business days.

$904.24

USD + Applicable Tax

Tripp Lite by Eaton SmartRack 6U Low-Profile Vertical-Mount Switch-Depth Wall-Mount Rack Enclosure Cabinet - For LAN Switch, Patch Panel - 6U Rack Height20" Rack Depth - Wall Mountable - Black - Steel - 149.91 lb Maximum Weight Capacity - 149.91 lb Static/Stationary Weight Capacity

Maximum load capacity of 150 lb.
Locking steel cabinet vented to keep equipment cool
Secures 6U of 19 in. rack equipment up to 20 in. deep
Includes additional 2U of space for patch panels
Ships fully assembled for quick installation

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	SRWF6U
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Line	SmartRack
Product Model	SRWF6U
Product Name	SmartRack SRWF6U Rack Cabinet
Marketing Information	The SRWF6U SmartRack 6U Low-Profile Vertical-Mount Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 150 pounds. Because the low-profile cabinet mounts vertically, it extends less than 12 inches from the wall while housing equipment up to 20 inches deep, including network switches and patch panels. In addition to 6U of rack space in the primary mounting area, it also includes a slide-out 2U mounting bracket at the top of the enclosure for patch panels up to 2.5 inches deep. The top panel and front door lock securely to help prevent damage, tampering or theft. The cabinet is vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right. Convenient top and bottom ports allow easy cable routing. The SRWF6U comes fully assembled and ready to mount to the wall. Equipment installation is easy with threaded mounting holes and hardware that support M6 or 12-24 mounting. More from the Manufacturer
Product Type	Rack Cabinet

Technical Information

Application/Usage	LAN Switch
Application/Usage	Patch Panel

Physical Characteristics

Form Factor	Wall Mountable
Color Family	Black
Product Color	Black
Product Material	Steel
Maximum Weight Capacity	149.91 lb g
Static/Stationary Weight Capacity	149.91 lb g
Height	28.8" mm
Width	25.6" mm
Depth	11.5" mm
Rack Height	6U
Rack Depth	20" mm
Weight (Approximate)	64 lb g

Miscellaneous

Package Contents	SmartRack SRWF6U Rack Cabinet 12 x M6 screws 12 x M6 cup washers 12 x 12-24 screws 2 x Keys Owner's manual
Assembly Required	No
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

5 Year
