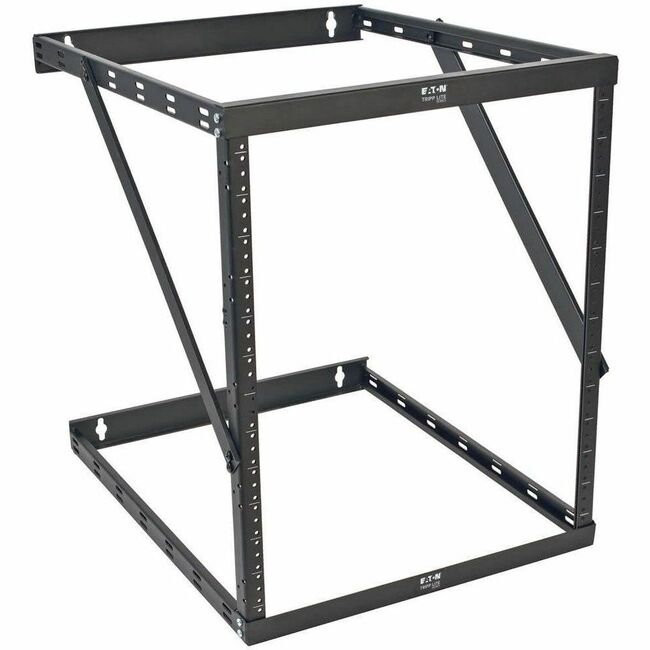

Eaton SRWO8U22DP Tripp Lite by Eaton SmartRack 8U/12U/22U Expandable Low-Profile UPS-Depth Wall-Mount 2-Post Open-Frame Rack

Name: Eaton SRWO8U22DP Tripp Lite by Eaton SmartRack 8U/12U/22U Expandable Low-Profile UPS-Depth Wall-Mount 2-Post Open-Frame Rack
Brand: Eaton
SKU: SRWO8U22DP
Price: 293.88 USD
Availability: InStock

Part Number:

SRWO8U22DP

80 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

80 pieces ready to ship - additional units ship in 7-10 business days.

$293.88

USD + Applicable Tax

Tripp Lite by Eaton SmartRack 8U/12U/22U Expandable Low-Profile UPS-Depth Wall-Mount 2-Post Open-Frame Rack - For UPS, Patch Panel, LAN Switch - 22U Rack Height x 19" Rack Width x 23.50" Rack Depth - Wall Mountable - Black Powder Coat - Steel - 150 lb Maximum Weight Capacity

Maximum load capacity of 150 lb.
Secures 19 in. rack equipment up to 23.5 in. deep
Configures to 8U, 12U or 22U of rack space
Heavy-duty steel construction designed to last
Easy to assemble with included hardware

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	SRWO8U22DP
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Line	SmartRack
Product Model	SRWO8U22DP
Product Name	SmartRack SRWO8U22DP Rack Frame
Marketing Information	The SRWO8U22DP SmartRack 8U/12U/22U Expandable Low-Profile UPS-Depth Wall-Mount 2-Post Open-Frame Rack is ideal for storing UPS systems, battery packs, power cords, network switches, patch panels and related cabling in secure IT areas with limited floor space. Mounted to the wall or resting on the floor, this rack offers fast, easy access to components and cabling. It's compatible with EIA-standard 19-inch rack equipment that supports two-post mounting and a maximum mounting depth of 23.5 inches. Constructed from heavy-duty steel in a durable black powder-coated finish, the open-frame rack has a maximum load capacity of 150 pounds. The expandable design allows you to assemble the rack in an 8U, 12U or 22U configuration to meet your current needs, while leaving rack space in reserve for future expansion. It saves precious space and allows IT managers easy access for organizing, installing and servicing equipment and cabling. The rack is easy to assemble using the included hardware. The vertical mounting rails have threaded 12-24 holes for securing equipment to the steel frame. More from the Manufacturer
Product Type	Rack Frame

Technical Information

Application/Usage	UPS
Application/Usage	Patch Panel
Application/Usage	LAN Switch

Physical Characteristics

Form Factor	Wall Mountable
Color Family	Black
Product Color	Black Powder Coat
Product Material	Steel
Maximum Weight Capacity	150 lb g
Height	42.3" mm
Width	20.1" mm
Depth	24" mm
Rack Height	22U
Rack Width	19" mm
Rack Depth	23.50" mm
Weight (Approximate)	16.87 lb g

Miscellaneous

Package Contents	SmartRack SRWO8U22DP Rack Frame 24 x 12-24 equipment mounting screws 16 x M5 button-head cap screws 8 x M6 x 12 Phillips-head screws 2 x Short vertical mounting rails 2 x Long vertical mounting rails 2 x Mounting rail tie plates 2 x Metal support straps 2 x Top/bottom panel frames 8 x Zip ties 3 mm L-shaped hex key Owner's manual
Assembly Required	Yes
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

5 Year
