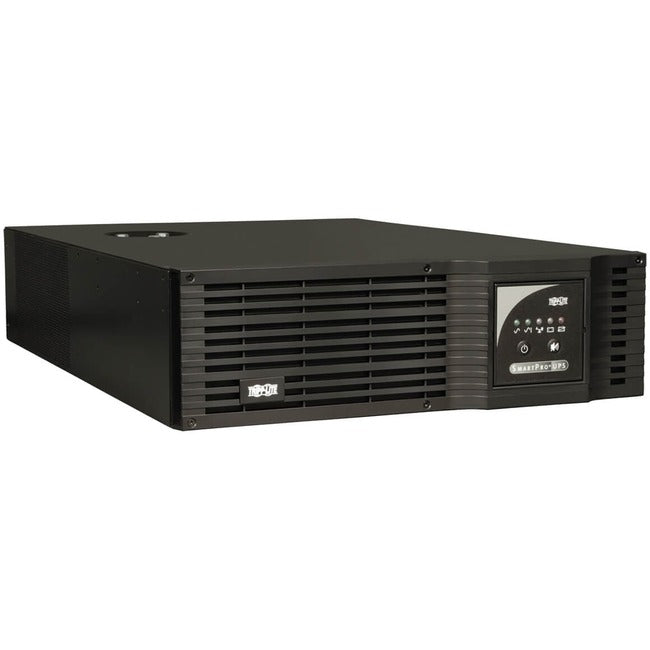

Eaton SMART5000XFMRXL Tripp Lite by Eaton UPS SmartPro 208 & 120V 5kVA 3.75kW Line-Interactive Sine Wave UPS 3U Extended Run Network Card Options USB DB9

Name: Eaton SMART5000XFMRXL Tripp Lite by Eaton UPS SmartPro 208 & 120V 5kVA 3.75kW Line-Interactive Sine Wave UPS 3U Extended Run Network Card Options USB DB9
Brand: Eaton
SKU: SMART5000XFMRXL
Price: 6367.32 USD
Availability: InStock

Part Number:

SMART5000XFMRXL

27 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

27 pieces ready to ship - additional units ship in 7-10 business days.

$6,367.32

USD + Applicable Tax

Tripp Lite by Eaton UPS SmartPro 208 & 120V 5kVA 3.75kW Line-Interactive Sine Wave UPS 3U Extended Run Network Card Options USB DB9 - 5000VA/3750W - 8.5 Minute Full Load - 1 x NEMA L6-30R, 2 x NEMA L6-20R, 8 x NEMA 5-15/20R

5kVA / 5000VA line interactive 3U rack/tower UPS; Sine wave output
208 & 120V output during brownouts to 167 and overvoltages to 260V
USB, Serial, EPO & optional SNMP/Web card monitoring options
3U all-in-one chassis; 8 single-outlet switched load banks; 97% efficiency
NEMA L6-30P input; 8 NEMA 5-15/20R, 2 L6-20R & 1 L6-30R outlets

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	SMART5000XFMRXL
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Line	SmartPro
Product Model	SMART5000XFMRXL
Product Name	SmartPro Series SMART5000XFMRXL 5000VA Tower/Rack Mountable UPS
Marketing Information	Tripp Lite 5kVA Smart RM UPS. 5000VA line-interactive UPS for server, network and telecommunications equipment. UPS with internal batteries requires 3 rack spaces installed. Accepts 208V nominal input voltage. Simultaneous 208 & 120V output. Corrects brownouts and overvoltages from 167V to 260V. Sine wave output. Maintains battery-derived AC output during blackouts and severe voltage fluctuations. Expandable runtime with optional external battery packs. 11 output receptacles. NEMA L6-30P input connection with support for user-supplied 50A or hardwire input. Network-grade AC surge and noise suppression. Network management interfaces include USB, DB9 serial and SNMPWEBCARD slot. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all network interfaces simultaneously. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Integrated 8-bank switched PDU. 3-stage metered current monitoring and battery charge LEDs. Utility power and voltage regulation LEDs. Audible alarm. Self-test. 4-post rack mounting accessories included; 2-9USTAND and 2POSTRMKITWM accessories available. Field-replaceable, hot-swappable internal batteries and battery packs. More from the Manufacturer
Product Type	Line-interactive UPS

Technical Information

Plug/Connector Type	NEMA L6-30P
Receptacle Type	NEMA L6-30R
Receptacle Type	NEMA L6-20R
Receptacle Type	NEMA 5-15/20R
Receptacle Detail	1 x NEMA L6-30R
Receptacle Detail	2 x NEMA L6-20R
Receptacle Detail	8 x NEMA 5-15/20R
Transfer Time	4 ms Second

Power Description

Load Capacity (VA)	5000 VA W
Load Capacity (Watt)	3750 W
Input Voltage	208 V AC
Input Current	27 A
Output Voltage	208 V AC

Management

Network Management

SNMP Manageable

Interfaces/Ports

Serial Port	Yes
USB	Yes

Battery Information

Battery Characteristics	Maintenance-free
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	8.50 Minute Second
Backup/Run Time (Half Load)	20 Minute Second
Hot Swappable	Yes
Typical Battery Recharge Time	4 Hour Second

Physical Characteristics

Height	5.25" mm
Width	17.50" mm
Depth	25" mm
Rack Height	3U
Form Factor	Tower
Weight (Approximate)	143.30 lb g

Miscellaneous

Package Contents	SmartPro Series SMART5000XFMRXL 5000VA Tower/Rack Mountable UPS SMART 5000XFMRXL UPS System PowerAlert Software and Cabling Mounting hardware for 4-post rackmount installation Warranty information Instruction manual
Software Included	PowerAlert UPS Monitoring Software
Country of Origin	Taiwan
TAA Compliant	Yes

Warranty

Limited Warranty

3 Year
