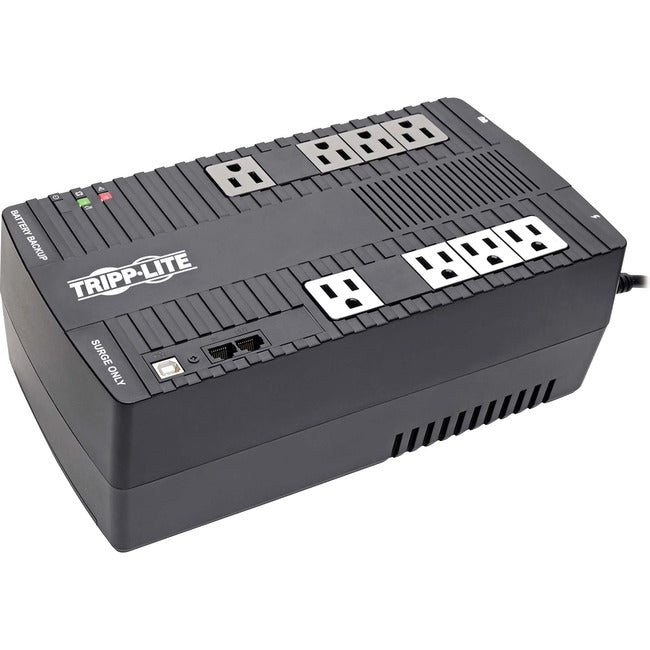

Eaton AVR550U Tripp Lite by Eaton UPS 550VA 300W Line-Interactive UPS - 8 NEMA 5-15R Outlets AVR 120V 50/60 Hz USB Desktop/Wall Mount

Name: Eaton AVR550U Tripp Lite by Eaton UPS 550VA 300W Line-Interactive UPS - 8 NEMA 5-15R Outlets AVR 120V 50/60 Hz USB Desktop/Wall Mount
Brand: Eaton
SKU: AVR550U
Price: 149.96 USD
Availability: InStock

Part Number:

AVR550U

113 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

113 pieces ready to ship - additional units ship in 7-10 business days.

$149.96

USD + Applicable Tax

Tripp Lite by Eaton UPS 550VA 300W Line-Interactive UPS - 8 NEMA 5-15R Outlets AVR 120V 50/60 Hz USB Desktop/Wall Mount - Ultra-compact Desktop/Tower/Wall Mount - AVR - 8 Hour Recharge - 2 Minute Stand-by - 120 V AC Input - 110 V AC, 115 V AC, 120 V AC Output - Single Phase - Pulse-width Modulated Sine Wave - USB - 8 x NEMA 5-15R Receptacle(s) - 4 x Battery/Surge Outlet

Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
Keeps AC power running during blackouts to allow time for file saves and safe shutdown
8 NEMA 5-15R outlets power and protect PC, home theater or digital signage equipment
Home-friendly alarm remains silent in backup mode, sounding only when imperative
High >95% efficiency with low BTU ratings saves electricity and lowers your energy costs
3-year limited warranty
$100,000 Ultimate Lifetime Insurance

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	AVR550U
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Series	AVR
Product Model	AVR550U
Product Name	Desktop/Wall Mount Battery Backup Outlets
Marketing Information	AVR Series Line-Interactive UPS System offers 550VA ultra-compact line-interactive protection for PCs and workstations. System maintains 120 volt nominal output over an input range of 83 to 147 volts. Workstation-optimized features include USB port (HID-PDC compliant), single-line telephone/DSL surge suppression, space-saving right-angle input plug, four battery/surge-protected outlets and four additional surge-only outlets (8 total). USB port (included cable) works with free unattended shutdown software. Housing is mountable. More from the Manufacturer
Packaged Quantity	1 Each
Product Type	Line-interactive UPS

Technical Information

AVR	Yes
AVR Range	Boost +18% / Buck -15%
Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R
Receptacle Detail	8 x NEMA 5-15R
Number of Battery & Surge Outlets	4
Number of Surge-only Outlets	4
Dataline Protection	RJ-11
Cord Length	6 ft mm
Transfer Time	6 ms Second
EMI/RFI Noise Filter	Yes
Phase	Single Phase
Energy Saving	Greater than 95% efficiency - GREEN UPS
Application/Usage	Printer
Application/Usage	Speaker
Application/Usage	Computer
Application/Usage	Router
Application/Usage	TV
Application/Usage	Blu-ray Player
Application/Usage	Gaming Console
Application/Usage	ATM
Application/Usage	Security System
Application/Usage	Digital Signage
Application/Usage	Media Center
Application/Usage	Home/Office
Application/Usage	Home Theater

Power Description

Load Capacity (VA)	550 VA W
Load Capacity (Watt)	300 W
Input Voltage	120 V AC
Input Current	12 A
Output Voltage	110 V AC
Output Voltage	115 V AC
Output Voltage	120 V AC
Input Frequency	60 Hz
Output Frequency	60 Hz
Waveform Type	Pulse-width Modulated Sine Wave
Surge Energy Rating	316 J

Management

Alarm	Battery Backup
Alarm	Low Battery
Alarm	Overload
Alarm	Replace Battery
Alarm	Fault

Controls/Indicators

Status Indicators

2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions

Interfaces/Ports

USB	Yes
USB (HID Compliant) Port	Yes

Battery Information

DC System Voltage	12 V DC
Backup/Run Time (Full Load)	2 Minute Second
Backup/Run Time (Half Load)	9 Minute Second
Battery Life	6 Year Second
Typical Battery Recharge Time	8 Hour Second
Replaceable Battery	Yes

Environmental Conditions

Maximum Operating Elevation	10000 ft mm
Storage Temperature	5°F (-15°C) - 113°F (45°C) °F
Maximum Operating Temperature	104°F (40°C) °F

Physical Characteristics

Product Color	Black
Height	4.33" mm
Width	6.40" mm
Depth	12" mm
Form Factor	Ultra-compact Desktop/Tower/Wall Mount
Weight (Approximate)	13.69 lb g

Miscellaneous

Package Contents	Desktop/Wall Mount Battery Backup Outlets USB cable Owner's manual
Software Included	PowerAlert UPS monitoring software
Country of Origin	China
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	3 Year Lifetime
Additional Warranty Information	2-year warranty. $100,000 Ultimate Lifetime Insurance (USA, Puerto Rico and Canada only).
